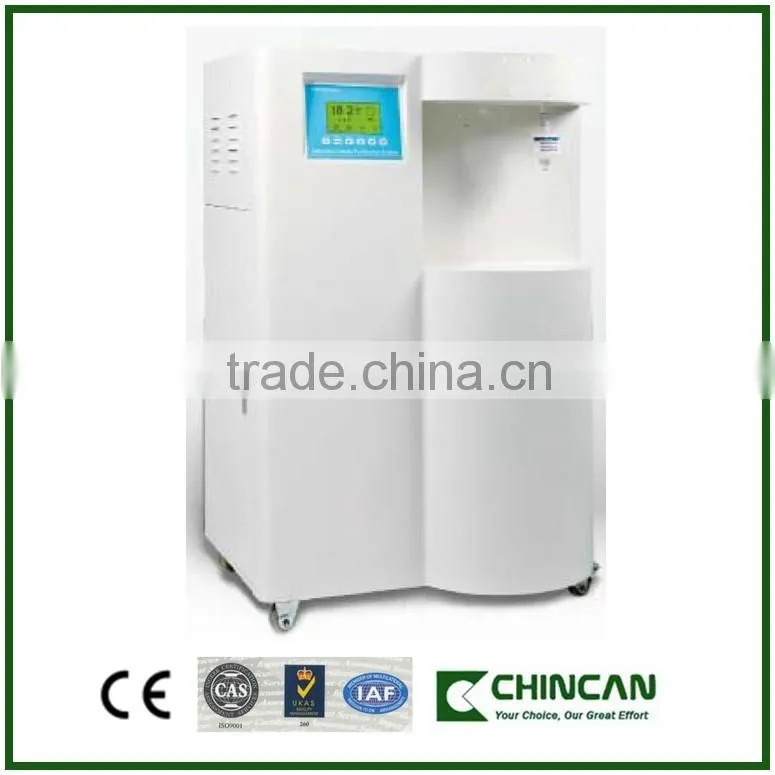

Medium-R seies Double Stage Reverse Osmosis Ultrapure Water System with Large Output (Tap water inlet)
Main Picture
Summary:
Medium-R series is standard double stage reverse osmosis ultrapure water system, with 2 pump, 2 RO membrane and 1 internal middle tank. Its output ranges from 30 to 60 liters/hour.
With the worse source water, the second stage RO water’s conductivity also can stay 1-5µs/cm. Compared with single stage RO system, the quality of RO water is better, and the running cost is lower for less consumables replacement. Moreover, compared with simple double stage RO system (1 pump, 2 RO membrane, without middle tank), its system design is more rational, and its RO quality is more stable. Built-in 2 tank:40 liters PE tank and 2 gallon pressure tank, to save more lab space and convenient for installation, operation and maintenance.
Applications:
Feed of ultrapure water system
Glassware washing
Microbiological analysis
Sample dilution and reagent preparation
Chemical and qualitative analysis
Water analysis and universal HPLC
Spectrum measurement
Disposing of buffer, medium
Feed of autoclave sterilizer, biochemical analyzer, immunoassay analyzer, constant temperature and humidity chamber, salt spray test chamber, dampening machine and etc.
HPLC, GC-MS, ICP-AES
ICP-MS, AAS, GF-AAS
TOC analysis, IC
Electrochemistry
Organic and inorgnic trace analysis
Molecular biology, microbiology
PCR analysis
DNA order analysis
Cell culture
Cell and cultivation medium preparation
Monoclonal antibody production
Gel electrophoresis analysis
Specifications:
| Model | RO water system | Deionized waters system | Ultrapure water system | |||
| Medium-RO30/45/60 | Medium-RQ30/45/60 | Medium-RS30/45/60(UF/UV/UVF) | ||||
| Feed water requirements* | Tap water: TDS<200 ppm, 5-45℃, 1.0-4.0Kgf/cm2 (Extra pretreatment filter is recommended, if TDS>200ppm) | |||||
| Flow procedure** | PF+AC+RO+RO+AC | PF+AC+RO+RO+AC+DI+TF | PF+AC+RO+RO+(UV)+AC+DI+(UF)+TF | |||
| RO water quality: | ||||||
| 1st stage RO water’s TDS | TDS(ppm, mg/l) < TDS of tap water×5% | |||||
| 2nd stage RO water’s conductivity | 1-5μs/cm, Organic rejection rate>99%(when MW>200 Dalton),Particles and bacteria rejection rate>99% | |||||
| Deionized water quality-RQ series | ||||||
| Resistivity>10-18.2MΩ.cm, heavy metal ion<0.1ppb, bacteria<0.1cfu/ml, particle(>0.2μm)<1/ml | ||||||
| Ultrapure water quality-R series | ||||||
| Model | Medium-R30/45/60 | Medium-R30/45/60UF | Medium-R30/45/60UV | Medium-R30/45/60UVF | ||
| Resistivity(25℃) | 18.2MΩ.cm | |||||
| Heavy metal ion | <0.1ppb | |||||
| TOC*** | <10ppb | <10ppb | <3ppb | <3ppb | ||
| Bacteria | <0.1cfu/ml | |||||
| Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml | ||
| Particle(>0.2μm) | <1/ml | |||||
| RNases | N/A | <0.01ng/ml | N/A | <0.01ng/ml | ||
| DNases | N/A | <4pg/μl | N/A | <4pg/μl | ||
| Output(25℃)**** | 30 series: 1st stage RO water: 63 liters/hour, 2nd stage RO water: 30 liters/hour | |||||
| 45 series: 1st stage RO water: 94 liters/hour, 2nd stage RO water: 45 liters/hour | ||||||
| 60 series: 1st stage RO water:125 liters/hour, 2nd stage RO water: 60 liters/hour | ||||||
| Pure water outlet | 2: 1st and 2nd stage RO water | 2: 2nd stage RO and deionized water | 3:1st, 2nd stage RO and ultrapure water | |||
| Dimension/Weight | Length×Width×Height: 760×630×1190mm/ Weight: about 80Kg | |||||
| Electric requirements | AC110-220V, 50/60Hz, 300W | |||||
| Standard configuration | Main body (Including 1 set of cartridges)+ built-in 2 tank(20L PE tank+4 gallon pressure tank)+ accessory bag | |||||
** PF:polypropylene spun fiber, AC:active carbon, RO:reverse osmosis, DI:ion exchange, UV:ultraviolet, UF:ultrafiltration, TF:terminal microfiltration.
*** Value of number will be influenced by temperature and feed water quality.
**** All the specifications are tested under the situation:feed water’s TDS=200ppm, 25℃, 50psi and 15% recovery rate.
