Medium-RO series Economical Lab Water Purifier Reverse Osmosis Water System for Type III RO water

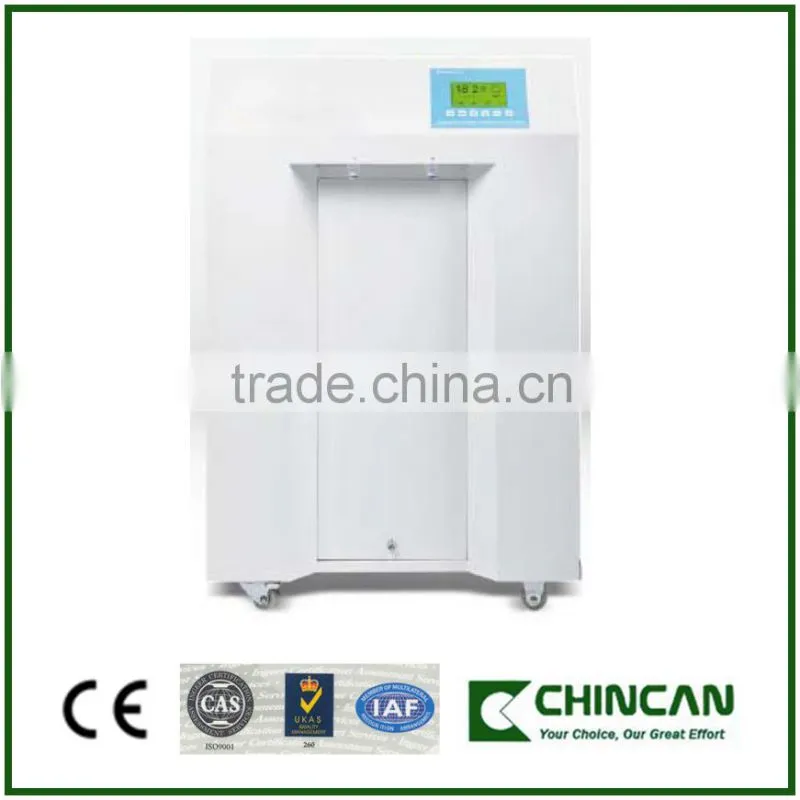

Main Picture
Summary:
Small Size, But Super Large Output. The system’s size is smallest with the same output. Its output is 250 liters/hour. And it can provide RO water, deionized water (resistivity is above of 10MΩ.cm), and ultrapure water (18.2MΩ.cm), with low running cost. It meets the requirements of water for production technology and central water supply.
Features and Advantages:
| Medium-1600 | Compared with others (250 l/h) |
| The voltage is only DC24V, lower than human safe voltage(DC36V) | The voltage is above of AC380V/220V, dangerous for operator |
| 2 sets 800 GPD pure water system, independent operation. If one was broken, the other also runs. | Only one system work. If going wrong, the machine could not work any more. |
| Working pressure of RO membrane<70PSI (4.9kgf/cm2), assure safety. | Working pressure of RO membrane >225PSI(15kgf/cm2), dangerous for operator |
| Floor space is only 0.5m2, save more room for laboratory | The floor space is very large, waste the room of laboratory |
Applications:
Water for production technology
Central water supply
Specifications:
| Model | RO water system | Deionized waters system | Ultrapure water system | ||
| Economic type | Standard type | Economic type | Standard type | Economic type | |
| Medium-1600RO | Medium-1600Q | Medium-1600QE | Medium-1600S | Medium-1600E | |
| Feed water requirements* | Tap water: TDS<200 ppm, 5-45℃, 1.0-4.0Kgf/cm2 (Extra pretreatment filter is recommended, if TDS>200ppm) | ||||
| Flow procedure** | PF+AC+RO+RO+AC | PF+AC+RO+RO+AC+DI | PF+AC+RO+RO+AC+DI | ||
| RO water quality: | |||||
| Ion rejection rate:96%-99% (New RO membrane) | |||||
| Organic rejection rate>99%(when MW>200 Dalton) | |||||
| Particles and bacteria rejection rate>99% | |||||
| Deionized water quality-Q/QE series | |||||
| Resistivity>10-18.2MΩ.cm | |||||
| heavy metal ion<0.1ppb | |||||
| bacteria<0.1cfu/ml(with terminal filter ) | |||||
| particle(>0.2μm)<1/ml(with terminal filter ) | |||||
| Ultrapure water quality-S/E series | |||||
| Resistivity(25℃):18.2MΩ.cm | |||||
| Heavy metal ion<0.1ppb | |||||
| TOC***<10ppb(with UV module<3ppb) | |||||
| Endotoxin <0.001Eu/ml(with UF module) | |||||
| RNases<0.01ng/ml(with UF module) | |||||
| DNases<4pg/μl(with UF module) | |||||
| Bacteria <0.1cfu/ml(with terminal filter) | |||||
| Particle(>0.2μm)<1/ml(with terminal filter) | |||||
| Output(25℃)**** | 250 liters/hour | ||||
| Pure water outlet | 1:RO water | 2:RO and deionized water | 3:RO, deionized and ultrapure water | ||
| Dimension/Weight | Length×Width×Height:760×550×1210mm/ Weight: about 85Kg | ||||
| Electric requirements | AC110-220V, 50/60Hz, 480W | ||||
| Standard configuration | Main body (Including 1 set of cartridges)+ accessory bag | ||||
* The feed water quality will influence the pure water’s quality and cartridges’ life-span.
** PF:polypropylene spun fiber, AC:active carbon, RO:reverse osmosis, DI:ion exchange,
*** Value of number will be influenced by temperature and feed water quality.
**** All the specifications are tested under the situation:feed water’s TDS=200ppm, 25℃, 50psi and 15% recovery rate.
This year Shipping shows:
As one part of Chincan Sales Group, each factory has technical support staffs available offering repair and maintenance of the products exported by Chincan. We promise that all of our products will be easily accessible to technical support and manufacturer's representatives who are always ready and able to assist when needed.
Established in 2004, Hangzhou Chincan Trading Co., Ltd. is a foreign trading company authorized by Chinese State Department of Foreign Economy & Trade and General Administration of Chinese Customs, which located in Hangzhou city, Zhejiang province, China.
We are a specialist company committed to exporting laboratory instruments, educational apparatus, medical & hospital equipments. With its superior performance, Chincan instruments are sold well throughout the Americas, Asia Pacific, the Middle East, Africa and Europe. With our excellent service, Chincan Trading has won a good reputation from the market.
Cooperative factories which qualified by Chincan come from many provinces and cities across China. All of them need to be ISO certified, Some products have CE.
Our customers spread all over the world, most products are very popular in Asia Pacific, Africa, Europe and South America, such as microscopes, autoclaves, shakers, incubators, baths, pH meters, spectrophotometers, pure water systems, balances, pipettes, centrifuges, viscometers, hardness testers, biological safety cabinets, etc. We are doing our best to meet various needs of clients from different countries.
Q: What after-sales service can be provided by CHINCAN ?
A: The after-sales service of CHINCAN is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.
For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Q: How to solve the disputes between CHINCAN and customers during the after-sales maintenance?
A: We will be customer-oriented,and make concessions in some principles , we will properly handle the disputes to maximize customer's satisfaction.
