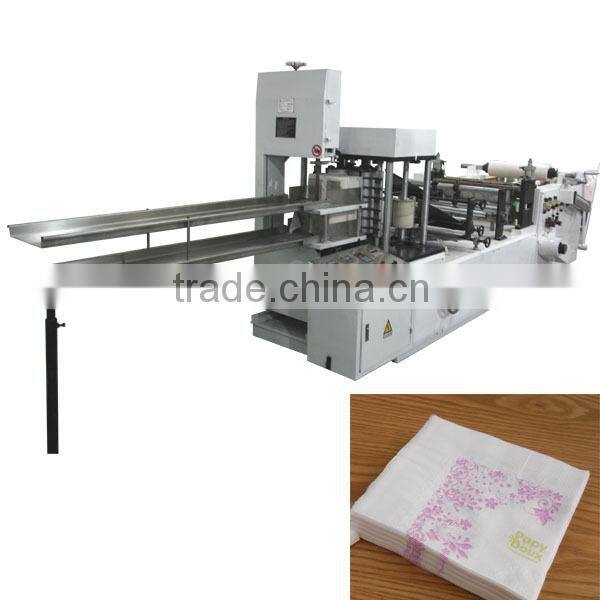

HX-280 Double layers output Napkin Paper Folding Machine

Specifications

1.used for folding napkin paper,with reasonable construction .
2.two layers output, large production
3.stable speed 1200/min

HX-280 Double layers output nakpin paper folding machine



Working principle:



Loading material (load materical pneumatically) - flat belt feeding - embossing - cutting - lengthways folding - counting - crosswise folding - cutting automatically - production.



Main Technical Parameter :



1,Folding size:140*140mm   Unfolded size :280*280 mm

2,Specification of raw paper :<= 560*1200 mm

3,Machine capcaity :speed is 1600 pcs/min

4,Folding way: double triangle 1/4 folding

5,Embossing unit:The buyers should prepare it by themselves,we provide drawing .

6,Paper breakdown device (it is set between embossing unit and forming unit .)

7,One group knives:it automatically cut raw paper.

8,The guide pipe is made from aluminum alloy,which can make sure the concentricity.

9,Feeding part:It adopts belt to control the feeding process ,AP ration geal can adjust stepless.

10,Loading material pneumatically(the buyer should prepare the air compressor by himself ).

11,Sharpen the knives pneumatically .

12,Automatic counting system,

13,Main motor is frequency conversion motor:3kw,380v,50HZ.

14,Machine head transmission :standard struction commutator.

15,Output holder is double layer and made from stainless steel.
