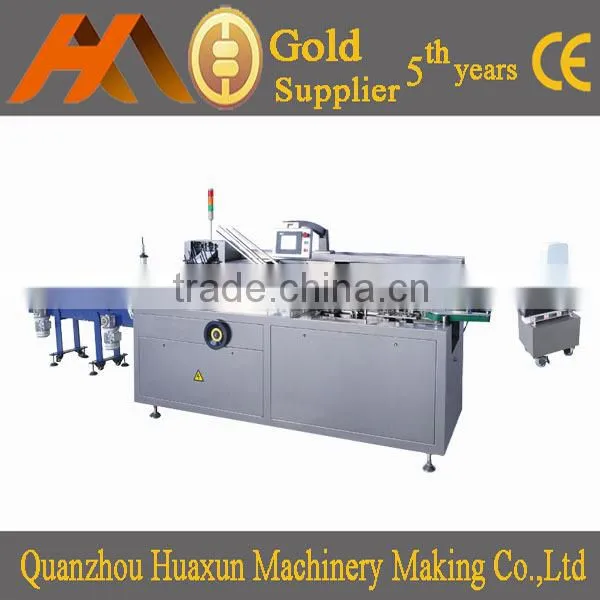

HX-50A full automatic facial tissue packing machine
1.Application range:
It is suitable for automatic boxing of facial tissues, napkins, square tissues, pocket tissues, sanitary towels, pads, etc.
2.Main performances and structure features:
- Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
- Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
- The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
- The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
- With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
3.Performance technical parameters
model |
HX-50A |
|
Paper quality of carton |
300-400g/m3 |
|
Maximum packing specification |
L240mm×W120mm×H90mm |
|
Packing speed |
30-80 boxes/minute |
|
Hot melt machine power |
2.32KW |
|
Motor power |
2.74KW |
|
Total power |
5.1KW |
|
Power supply type |
(3phase 4wire) 380V 50Hz |
|
Machine noise |
≤80dB |
|
Air supply |
0.5-0.8 Mpa |
|
Air consumption |
120-160L/min |
|
Outline dimensions |
Main machine |
L3250×W1650×H1800mm |
Conveying mechanism |
L4000×W660×H1200mm |
|
Machine weight |
1500Kg |
|
FAQs:
1.Q:who are we ?
A: Quanzhou Huaxun Machinery Making Co., Ltd is a leading paper convert machine manufacturer .our product sale spreads all over the world,in many counties,we have our own agent.Our products widely cover toilet paper machine,towel paper (kitchen towel )machine,hand towel machine,facial tissue machine,napkin paper machine,craft paper machine,and other relative machine,etc.
2.Q:what is our payment terms?
A:our general payment terms is TT.Before production,our customers should pay 30% down payment to us,then pay 70% after the machines are all ready to ship to buyer.(For other payment terms,also can be communicated by buyer and seller two parts.)
3.Q:what is our warranty?
A:our warranty is one year,the parts can be replaced freely within one year,after one year,we also will provide slove project asap for any problems you have,will try our best to help you out of trouble.
4.Q:what is our service?
A:If you just enter this line and new for paper convert business. We will provide properly program from jumbo roll paper to finished products, to help you get familiar with this line and start business well.
2.We can help you to get the documents you need for customs clearance to help you make it easy.
3.Before the machine delivery,we will test the machines in our factory and make sure they are running well.If customers want to come to our factory to test the machine,it is ok,and we will send car to pick them up at the airport.
4.We will provide the manual and operating CD along the machines to customers,if necessary,we also can send technician to your factory to help you install and training your workers to operate our machine.
Your satisfaction is our goal,we will try our best to give you the best service,so for any suggestion,will be very appreciated.Have any questions,feel free to contact us,will reply you asap.
