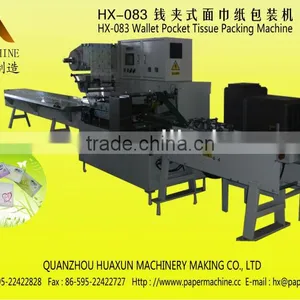

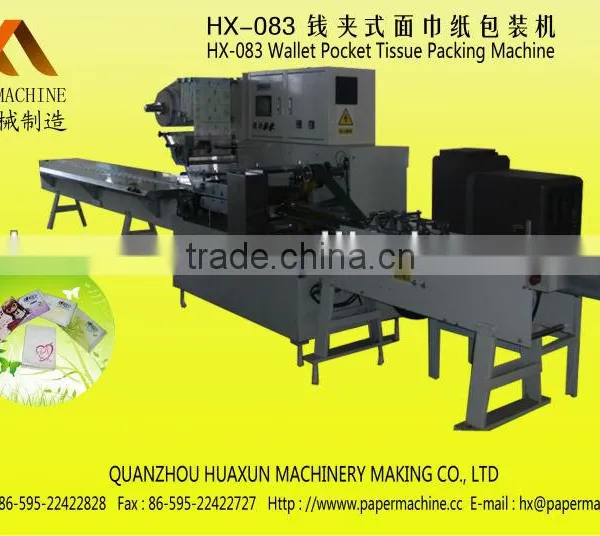

high speed wallet pocket tissue packing machine
- 35 Set / Sets per Month
- XIAMEN CHINA
- Credit Card
- Semi Automatic Packing Line , Toilet Roll Packaging Machine Price
- Semi Automatic Packing Line , Toilet Roll Tissue Packaging Machine
- Semi Automatic Tissue Paper Packing Machine , Tissue Rolls Packing Machine
- Tissue Rolls Packing Machine , Automatic Packing Machine
- Tissue Roll Packing Machine , Semi Automatic Toilet Roll Packing Machine
- Manual Cutter for Cutting Paper , Paper Cutting Machine Small Size
Product Details
Condition: | New | Product Type: | Facial Tissue | Processing Type: | Other, packing machine |
Place of Origin: | Fujian, China | Brand Name: | HUAXUN | Model Number: | HX-083 |
Voltage: | 380V,50HZ,3 Phase | Power(W): | 7.4 KW | Dimension(L*W*H): | 7500*1100*1800 |
Weight: | about 2 tons | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
wallet pocket tissue packing machine, tissue packing machine, facial tissue paper packing machine, tissue paper machine
1.Introduction
1.It will save labor in a large scale(10 to 20 people), reduce material costs and enhance production efficiency.
2.It can reduce costs of RMB0.05 for each package.
3.This machine is easy to adjust by using 3 sets of servo motor (Panasonic Brand).
4.You can change the length and direction by changing the parameter on touch screen immediately.
5. Apply PLC and frequency conversion controlling system
6. Human-computer interface display all parameters
7. Self lubricating system ensure more stable operation
8. Open-type machine body design facilitate convenient maintenance
9. The adjustment of multiple products sizes can fulfill easily
10. Conversion between witch manual operation and automation can achieve
2.Suitable material
packing specification | L(100mm-130mm)*W(160mm-175mm) |
packing quantity | 3-10pieces for each side |
material of packing film | PE and POPP plex film |
diameter of packing film | <500mm |
3. Main technical parameter
Max size of machine(L*W*H) | 7500*1100*1800 mm |
power supply | 3Ph(380Vac/50HZ) (Can be 5% more or less) |
main machine power | 5 KW |
glue machine power | 2.4 KW |
designed speed | more than 200 bags/min |
stable speed | 120 bags/min |
air supply | air pressure>=0.6Mpa |
Gas consumption | <2m3/h |
noise | <80db |
