Leading automatic box packaging and sealing machine

Specifications

1.it seals box automatically
2.factory price
3.leading packaging machine
4.CE

Leading automatic box packaging and sealing machine,  box sealing machine, box packaging and sealing machine, carton box sealing machine





1.Application range:

It is suitable for automatic boxing of facial tissues, napkins, square tissues, pocket tissues, sanitary towels, pads, etc.



2.Main performances and structure features:

1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
6. Change of specifications does not need change of molds, but can be realized through adjustment.
7. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.
8. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.

3.Performance technical parameters



model		HX-50A
Paper quality of carton		300-400g/m3
Maximum packing specification		L240mm×W120mm×H90mm
Packing speed		30-80 boxes/minute
Hot melt machine power		2.32KW
Motor power		2.74KW
Total power		5.1KW
Power supply type		(3phase 4wire) 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.8 Mpa
Air consumption		120-160L/min
Outline dimensions	Main machine	L3250×W1650×H1800mm
	Conveying mechanism	L4000×W660×H1200mm
Machine weight		1500Kg

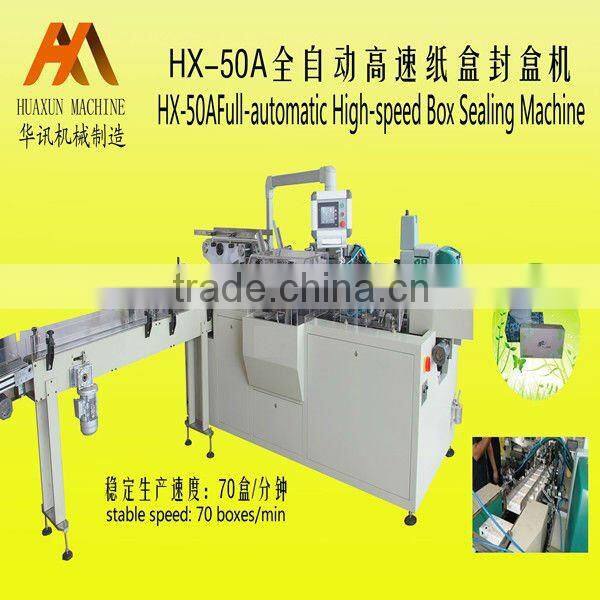

4.picture
