Help CenterTC1420 Synthesized Generator
Related Products
Specifications
1)DDS and CPLD techniques2)High reliable SMT technology
3)Independent digit keys + rotary coder ensure simpler operation

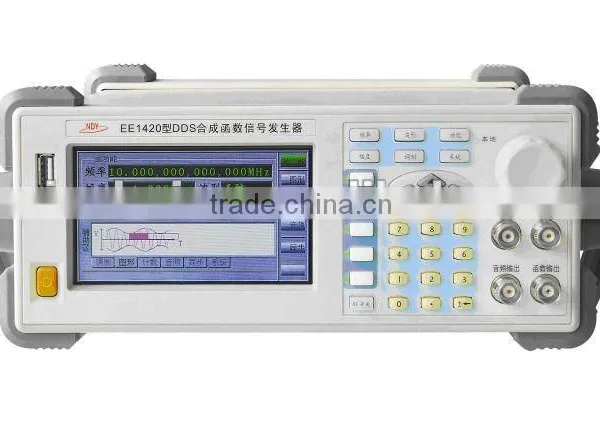

2. TC1420 DDS Synthesized Function Generator
Main Specifications:
*Output Frequency:Range:1uHz~10/30/50MHz(Sine) 1uHz~10 MHz(Square)
Resolution:1uHz
Stability:2.5ppm
*Output Waveform:All standard function waveforms
*Output Form:Fixed frequency, sweep frequency, AM, FM, TTL/CMOS(3Vpp~15Vpp)
*Output Level:2mVp-p~20Vp-p(1MΩ,≤10MHz),2mVp-p~6Vp-p(1MΩ,>10MHz)
*Modulation Form:int. /ext. FM, AM, BURST,FSK,BPSK
*Sine Distortion:<0.15%(≤100kHz,≥10Vp-p)
*Duty Cycle:20%~80%(<1MHz ,Square) 1%~99%(<50kHz, Pulse)
*Square Edge:≤28ns
*Display:4.3" TFT colour LCD disply
*Power source:110-127/220-240VAC 60/50Hz
Main Features:
*DDS and CPLD techniques
*High reliable SMT technology
*Independent digit keys + rotary coder ensure simpler operation
*Independent front panel TTL/CMOS level adjustable output
*Less distortion and more convenient recalling of stored data
*Wholly adjustable central level
*Frequency Sweeper (option):lnner demodulation,4individual markers,Sweep Wide 10kHz—10/30/50MHz,Otput Level 13dBm~-56dBm,AM Resolution 0.1dBm,Sweep Time 100ms~40s, Resolution 1uHz,Dynamic Range 17dBm~-63dBm,5 markers
* Modulation signal generator (option):1Hz—1MHz Sine,Square,Pulse,Triangle
*More functions to choose:100MHz frequency counter, independent 50Hz fixed frequency output, RS232,USB programmable interface
*Size 250×400×120(mm)3 Weight about 3kg
