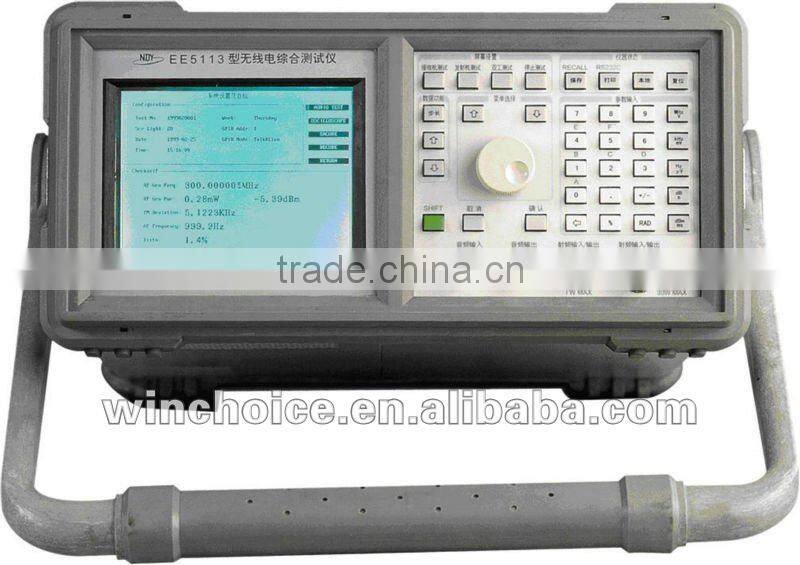

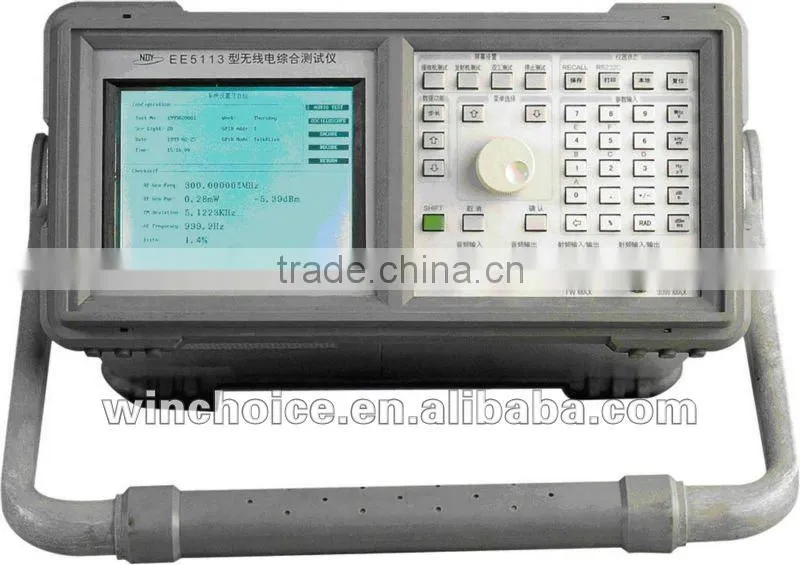

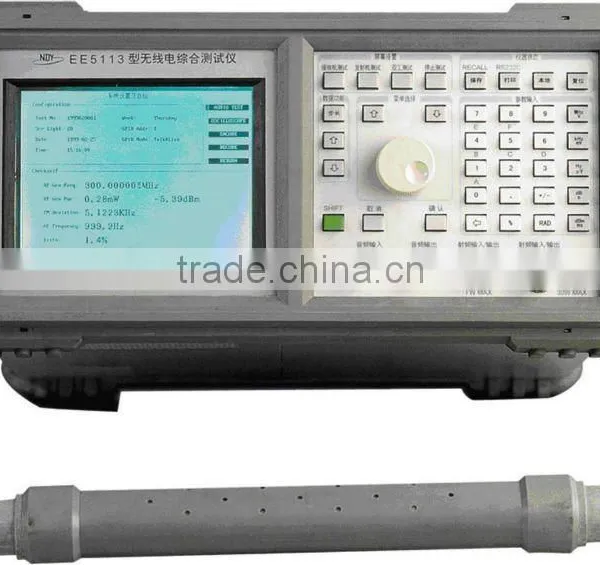

TC5113 Radio Communication Tester
Main Specifications:
*Synthesized signal generator:
Output Frequency:0.4~1000MHz
Resolution:50Hz (0.4~530MHz)
100Hz (530~1000MHz)
*Modulation generator: AM, FM, ΦM
*RF counter, power meter
*AF signal generator, frequency counter
*AF and DC digital voltmeter
*Modulation meter and distortion meter
*SINAD and SNR meter
*Digital storage oscilloscope
*Size and weight: 480×360×166(mm)3,15kg
Main Features:
*Suitable for use in measurement of transceiver, and RF, AF parameters for radio station and mobile communications
*Microcomputer controlled and automatic analyzing and processing for measured data
*Combination of varieties of instruments, easy carrying and operation
*Large screen (6.4") high resolution (640×480) LCD display
*User interface of Chinese and English characters menu
*SMT technology
*Standard RS-232 interface
*Optional GP-IB interface
*General purpose printer interface
*manual measurement of main parameters of SSB transceivers
