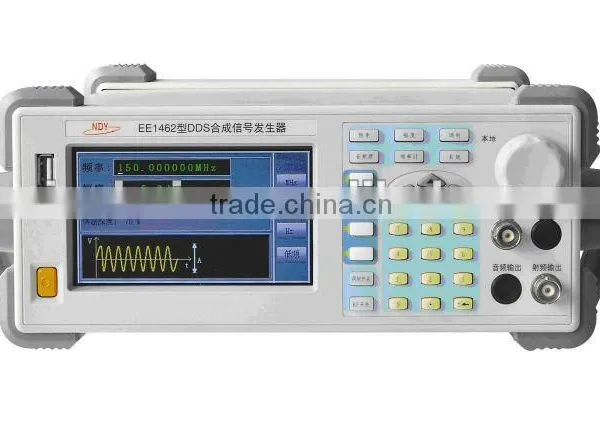

TC1462 HF Synthesized Generator

TC1462 HF Synthesized Generator thumbnail-1
TC1462 HF Synthesized Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TC
Model Number:
TC1462
Contact Supplier Request Quote Chat Now
Zhejiang Winchoice Imp./Exp. Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name TC
Model Number TC1462

Specifications

1)4.3" TFT colour LCD disply
2)Using direct digital synthesis (DDS) and CPLD modulation technology

2. TC1462 DDS HF Synthesized Signal Generator



 TC1462 HF Synthesized Generator

Main Specifications:

*Output Frequency: 100kHz~110/150/250/350/450MHz

*Frequency resolution:1Hz

*Frequency stability:2.5ppm

*Output Voltage:0.3μVrms~1Vrms

*Voltage Resolution: 0.1dB   Output impedance: 50 Ω  VSWR1.5

*Spectrum Purity: Harmonics -30dBc, strays -40dBc

*Modulation:AM: 0~70%((can be adjusted to 100%)   FM:0~100kHz     FSK and SWEEP

MOD Signal output: int. 1kHz or 400Hz

* Modulation signal generator (option):1Hz—1MHz Sine,Square,Pulse,Triangle

*Storage:Carrier frequency, level and modulation can be arbitrarily stored in combination and easy t recall

*Standard RS232 interface, optional GP-IB interface

*Power source:110-127/220-240VAC 60/50Hz



Main Features:

*4.3" TFT colour LCD disply

*Using direct digital synthesis (DDS) and CPLD modulation technology

*Using digital modulation technology

*120dB programmable attenuation enables microvolt signal output

*Automatic level control circuit enables stable output amplitude

*Accurate modulation comparable to that of standard signal generator

*External standard frequency input for higher frequency accuracy in whole band.

*Arbitrarily stored and recalled for carrier frequency, level, or modulation

*1000 MHz Frequency Couter(option),Pulse Modulation (option)

*Standard RS-232 interface, optional GP-IB interface



*SMT technology with high stability



*Small in size:250×400×120(mm)3



*Light in weight:3kg
