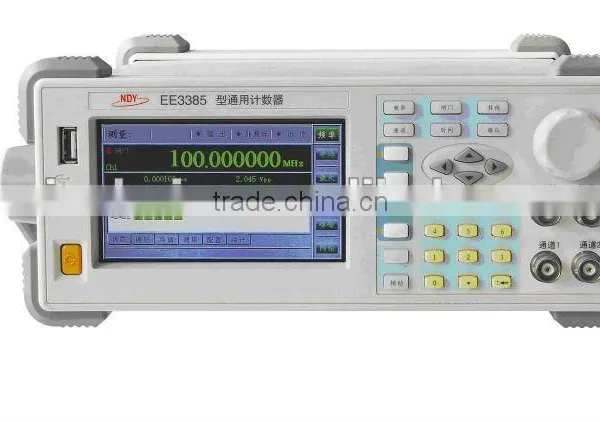

Help CenterTC3385 Universal Counter
Related Products
Specifications
1) Microcomputer controlled, developed with CPLD and modular design2)10MHz synchronous equal-accuracy measurement mode
3. TC3385 Series Universal Counter
Main Specifications:
*Functions:Frequency measurement, Period measurement, Counting, Frequency ratio, Time interval,Pulse width,Duty cycle,Phase angle,Totalize,Rotational speed, ,Mathematics calculation and statistics(MAX,MIN, Average, Standard deviations, Allan variance etc.)
*Frequency measurement range:0.025Hz~100MHz (main frame of the basic model)
0.025Hz~500MHz ( model 05)
0.025Hz~1000MHz (Model 10)
0.025Hz~2.5GHz (Model 25)
0.025Hz~6GHz (Model 60)
0.025Hz~12.4GHz (Model 120)
*Period measurement range:10ns~10000s
*Time interval measurement range:100ns~7000s
*Sensitivity in RMS:30mVrms(DC input, adjusting trigger level,<100MHz).
*Dynamic Range:15mVrms~3Vrms
*Phase Measurement: 1º—359º
*Duty Factor:0—100%
*Coupling Mode:AC/DC for Channels1,2; AC for Channel 3
*Input Impedance:1MΩ//30pf or 50Ω
*Trigger level:±2.5V adjustable in 5mV steps
*4.3" TFT color LCD disply
*Time base:10MHz(100ns), daily stability better than ±1×10-8/d
*Optional (1~5)×10-9/d high stability crystal oscillator
*Power supply: 200-250VAC 50-60Hz 30VA
*Size and weight:370×255×100(mm)3, 2kg
Main Features:
*Microcomputer controlled, developed with CPLD and modular design
*10MHz synchronous equal-accuracy measurement mode
*SMT technology and newly miniature structures design
* Statistic function available to display Max. value, Min. value, Mean value, Deviation, Standard deviation, Allan variance, etc.
*Standard RS-232 interface, optional GP-IB interface
*The high sensitivity model allows non-contact measurement
