Specifications
1)Using microwave sampling and millimeter wave mixing techniques2)Using 4.3" TFT color LCD display

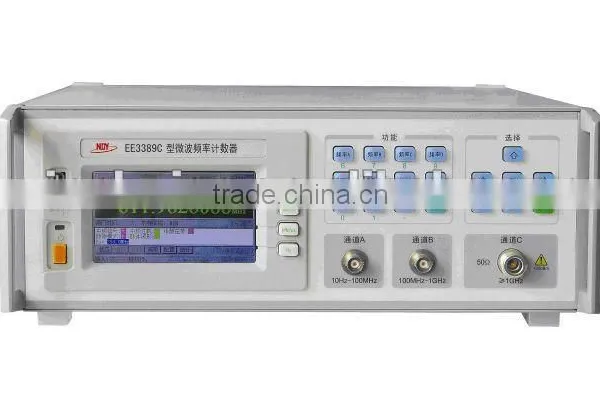

TC3389 Microwave Frequency Counter
Main Specifications:
*Frequency Range (main frame):
Channel 1:10Hz~100MHz
Channel 2:0.1GHz~1GHz
Channel 3:1GHz~12.4/18.0/26.5GHz
*Input sensitivity:
Channel 1,2:50mVrms
Channel 3:-25dBm(1GHz~12.4GHz)
-20dBm(12.4GHz~18.0GHz)
-15dBm(18.0GHz~26.5GHz)
*Max input power:10Vpp (Band 1)
+17dBm (Band 2,3)
*Time base stability:10MHz ±1×10-8/d
*Input impedance:
Channel 1:50Ω/10MΩ
Channel 2,3:50Ω
*Gate time:100us~10s in 6 steps
*Size and Weight:420×340×120mm, 5kg
Main Features:
*Using microwave sampling and millimeter wave mixing techniques
*Using microcomputer to manage measurement and data processing
*High reliability owing to the use of LSI and VLSI components
*Using EDA design and instrumentation ASIC
*Using 4.3" TFT color LCD display
*Optional GP-IB interface
* Pulse modulated wave measurable(option)
