Specifications
1.UTP Surge Protector SP-3101UV2.BNC male to BNC female
3.Two stage protection
4.Performs a different function
UTP Surge Protector SP-3101UV
Features of UTP Surge Protector
UTP Video Surge Protector BNC Connector
BNC male to BNC female, Hi Frequency for both CCTV and CATV use
With 16cm mini-coax pigtail lead
BAND PASS: 0~1GHz
Performs a different function than grounding requirements.
Protects equipment from high voltage surges from nearby lightning strikes.
Two stage protection: under 1ns-90V, over 10ns-12V
BNC male to BNC female, Hi Frequency for both CCTV and CATV use
BAND PASS: 0~1GHz
Protects equipment from high voltage surges from nearby lightning strikes.
Two stage protection: under 1ns-90V, over 10ns-12V.
Overview of UTP Surge Protector
Video Surge Protectors are applied in coaxial communication devices of CCTV/CATV/ VOD system and so on.
They play an important role in lighting strikes and surge protection. Video Surge protectors of coaxial communication
signals are designed in accordance with IEC and National Standard. There’re various of coaxial connectors such
as F/N/ BNC. Video Surge Protectors are easy and convenient in installation. No need maintenance and low insertion loss.
Technical Specifications of UTP Surge Protector
Model |
FS-SP3101UV |
Product Name |
UTP Video Surge Protector BNC connector |
Function |
UTP Video Signal Surge Protection |
Applied devices |
CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR. VOD….etc. |
Connector |
BNC male and female |
Nominal Operating Voltage (Un) |
6V |
Max Continuous Running Voltage (Uc) |
8V |
Nominal Discharge Current In (8/20us)} |
5KA |
Max Discharge Current Imax (8/20us) |
10KA |
Rated Load Current ( IL) |
500mA |
Limited Voltage |
15V |
Response Time |
≤1ns |
Max Transmission Rate |
10Mbps |
Matched Impedance |
75Ω |
Insertion Loss |
<0.2dB |
Housing |
Aluminum alloy |
Net weight |
0.08kg |
Dimension |
58*25*25mm |

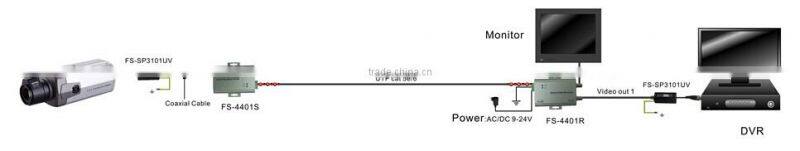

Application Diagram of UTP Surge Protector

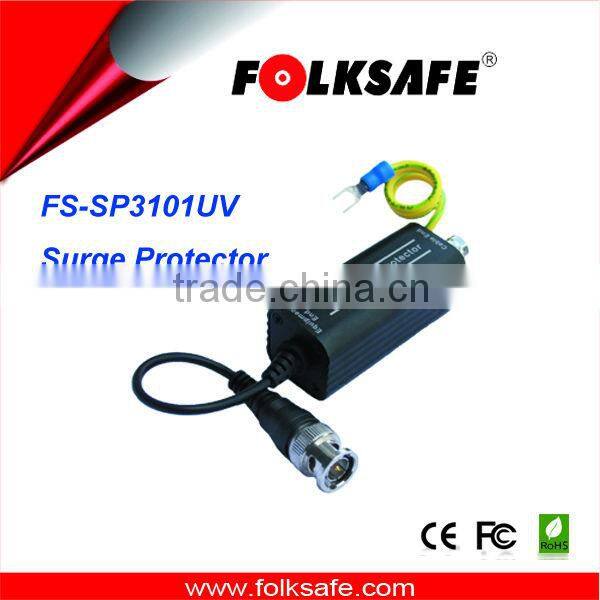

Picture of UTP Surge Protector
