Specifications
1.Surge Protector for Network FS-SPRJ45/82.Low limited voltage
3.Stable and reliabel performance
4.Large flow capacity
Features of Surge Protector for Network
Single Channel Network Surge Protector
• Lower capacitors design, less insertion loss and quicker response time
• Large capacity of through-flow, long use time
• Adopts international brands components, multi-level protection mode, low residual voltage.
• Easy installation and convenient maintaining
• Apply to network severs, Routers, Lan switch, HUB and Ethernet and etc..
Overview of Surge Protector for Network
Folksafe's FS-SPRJ45/8 is a single channel network surge protector designed according to IEC and GB standard.It adopts RJ45 connector for ease of installation and protects 1 channel 10/100M Ethernet connectors from lightning surge protection. It features quicker response time , lower output residual voltage and less insertion loss with international brands semiconductor components. This device also adopts common- mode and differential mode protection. With aluminum alloy housing, FS-SPRJ45/8 has better sealing against dust and erosion. Furthermore, it is connected in series and restrain high-voltage pulse to protect the back-end from lightning surge protection.
Technical Specifications of Surge Protector for Network
Model |
FS-SPRJ45/8 |
Product Name |
Single Channel Network Surge Protector |
Application |
Network severs , Routers, Lan switch, HUB,,UB and Ethernet and etc.. |
Connector |
RJ 45 |
Normal Operating Voltage(Un) |
5V |
Max Continue Operating Voltage (Uc) |
8V |
Nominal Discharge Current (3/20us) |
5KA |
Nominal Discharge Current (8/20us) |
10KA |
Rated Load Current (IL) |
500MA |
Limited Voltage |
<15V |
Response Time |
<1NS |
Max Transmission Rate |
1000Mbps |
Insertion Loss |
<0.2dB |
Protection Circuit |
1,2,3,4,5,6,7,8 |
Failure LED Indication |
To the ground short circuit or open |
Dimensions (L*W*H) |
85*43*23mm |
Housing |
Aluminum alloy |
Body Color |
Blue |
Net Weight |
65g |
Operating Temperature |
-20~55℃ |
Relative Humidity |
0~95% (non-condensing) |
Storage Temperature |
-40º ~ 85º C |
Application Diagram of Surge Protector for Network

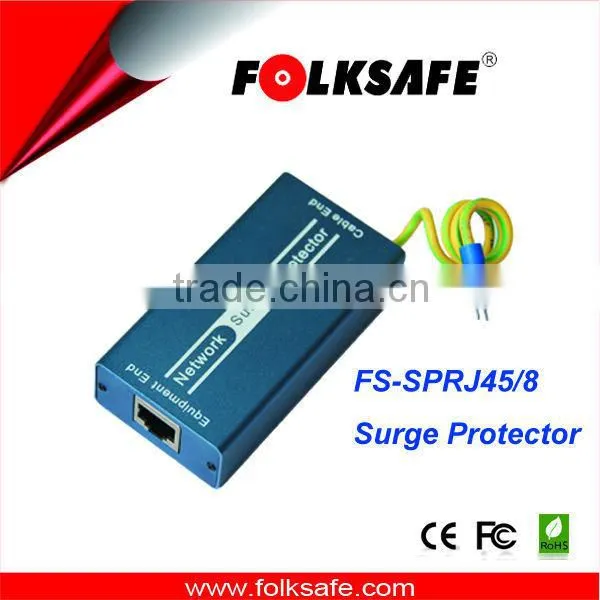

Picture of Surge Protector for Network
Transportation of Surge Protector for Network
Company and Factory show
Certification of Surge Protector for Network
Exhibition of Surge Protector for Network
