FS-SPRJ11
Single Channel Audio Surge Protector
Model |
FS-SPRJ11 |
Product Name |
RJ 11 signal surge protector |
Function |
RJ 11 interface telephone surge protection |
Applied Dices |
Terminal PC network card and other network equipments interface |
Connection Type |
RJ 11 |
Nominal Operating Voltage (Un) |
110V |
Max Continuous Running Voltage (Uc) |
130V |
Limited Voltage |
220V |
Rated Load Current ( IL) |
150mA |
Nominal Discharge Current {In (8/20us)} |
5KA |
Max Discharge Current {(Imax (8/20us) } |
10KA |
Response Time |
≤1ns |
Max Transmission Rate |
10Mbps |
Insertion Loss |
<0.2dB |
Protective Line |
3,4 |
Net Weight |
0.08kg |
Failure Mechanism |
Communication line in the short circuit or disconnects |
Housing |
Aluminum alloy |
Dimensions |
80*25*25mm |

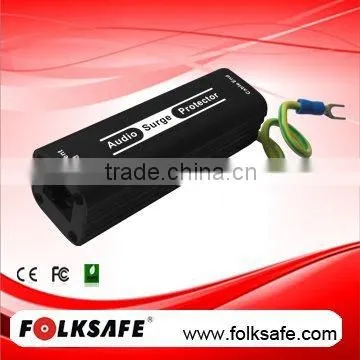

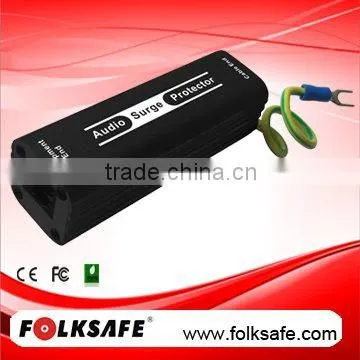

Picture of Single channel Audio Surge Protector
