Specifications
1.Video Surge Protector FS-SP3001UV2.BNC male to BNC female
3.High frequency for both CCTV&CATV use
4.Two stage protection
Features of UTP Video Surge Protector
UTP Video Surge Protector
• Lower capacitors design, less insertion loss and quicker response time
• Large capacity of through-flow, long use time
• Adopts international brands components, multi-level protection mode,low residual voltage.
• Easy installation and convenient maintaining
• Frequency bandwidth: 0-1GHz
Overview of UTP Video Surge Protector
FS-SP3001UV is a signal channel UTP video surge protector designed according to IEC and GB standard. It adopts BNC connector, featuring quicker response time, lower output residual voltage and less insertion loss with international brands semiconductor components to protect devices from lightning struck or damaged by overvoltage,overcurrent or surge voltage. It is widely used in cable CCTV transmission, electron monitoring system such as DVR, LET and camera and etc..
Technical Specifications of UTP Video Surge Protector
Model |
FS-SP3001UV |
|
Product Name |
UTP video surge protector |
|
Application |
cable CCTV transmission, electron monitoring system such as DVR, LET and camera and etc.. |
|
Video |
Connector |
BNC connector |
|
Normal Operating Voltage(Un) |
6V |
|
Max Continue Operating Voltage(Uc) |
8V |
|
Nominal Discharge Current (8/20us) |
5KA |
|
Nominal Discharge Current (8/20us) |
10KA |
|
Rated Load Current (IL) |
500MA |
|
Limited Voltage |
<15V |
|
Response Time |
<1NS |
|
Max Transmission Rate |
10Mbps |
|
Insertion Loss |
<0.2dB |
|
Matched Impedance |
75Ω |
|
Protection Circuit |
Unshielded Twisted pair(UTP) |
|
Failure LED Indication |
To the ground shortcircuit or open |
|
Mechanical
|
Dimensions(L*W*H) |
60*25*25mm |
|
Housing |
Aluminium alloy |
|
Body Color |
Black |
|
Net Weight |
60g |
Environmental |
Operating Temperature |
-20~55℃ |
|
Relative Humidity |
0~95% (non-condensing) |
|
Storage Temperature |
-40º ~ 70º C |
Application Diagram of UTP Video Surge Protector

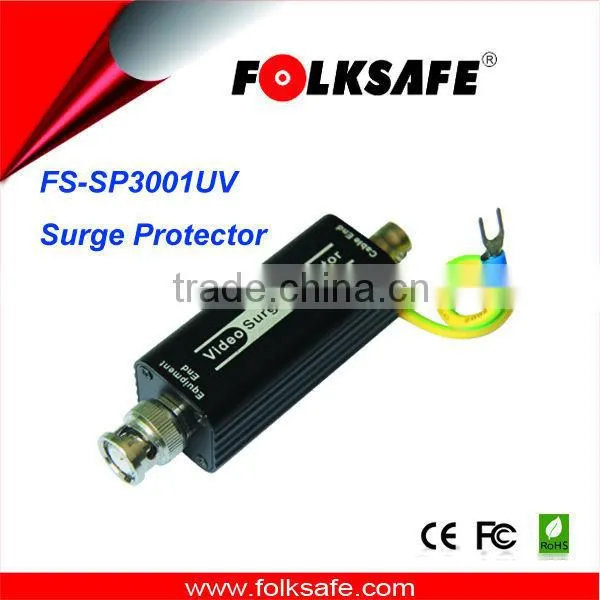

Picture of UTP Video Surge Protector
Transportation of UTP Video Surge Protector
Company and Factory show
Certification of UTP Video Surge Protector
Exhibition of UTP Video Surge Protector
