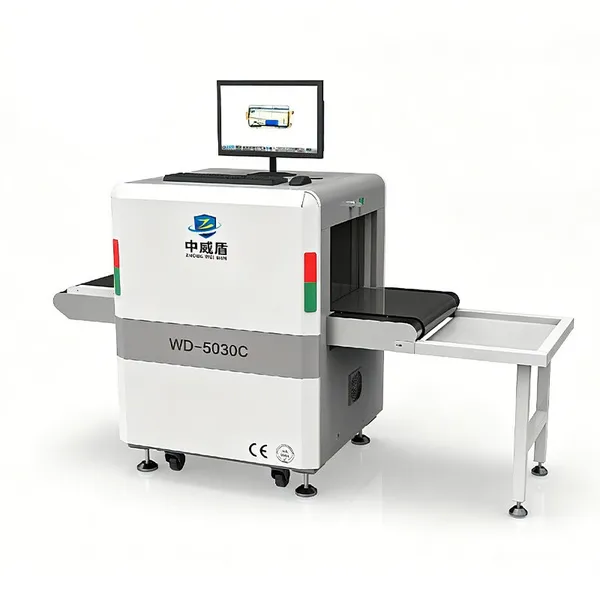

Help CenterWD-5030C Small Dual-Energy X-ray Security Inspection Machine
Product Spotlights
Other functional modules can be customized according to customer requirements, and customized interfaces can be opened as requested, such as AI intelligent recognition (hazardous item alarm function).
Related Products
-
X-ray Safety Inspection EquipmentUS$ 16500MOQ: 2 Combos -
WD-150180 Large Multi-Energy X-ray Security Scanner With Wide TunnelNegotiableMOQ: 1 Set
-
WD-8065D Medium Tunnel Dual-source Dual-view X-ray Baggage ScannerNegotiableMOQ: 1 Combo
-
WD-6550D Medium Tunnel Dual-source Dual-view X-ray Baggage ScannerNegotiableMOQ: 1 Combo
-
WD-10080C Large Tunnel Dual-energy X-ray Security ScannerNegotiableMOQ: 1 Combo
Product Features |
|
Digital Design：The hardware system adopts the latest fully digital ASIC solution and IN-depth in-depth acquisition technology. Compared with analog acquisition solutions, it optimizes circuit design and features high integration, strong anti-interference performance and clear imaging quality. Modular Design：The internal circuit structure of the equipment adopts a modular design concept. Reasonable layout enhances the anti-interference capability, ensures stable operation and facilitates maintenance. Comprehensive Functions：Additional functional modules can be customized according to customer requirements, and customized ports can be opened as requested, such as AI intelligent recognition (hazardous substance alarm function). User-Friendly Operation：Equipped with a concise and humanized operation interface for easy equipment operation. Intelligent Roller Conveyor：The machine can automatically detect objects. The conveyor starts only when baggage is placed on it and remains stationary when no objects are present. One-Click Shutdown：To power off, simply turn the key counterclockwise; the equipment will perform automatic safe shutdown, which is quick and convenient. Fault Self-Diagnosis：The system automatically detects and prompts faults when abnormalities occur, simplifying maintenance work. Radiation Protection：The inlet and outlet of the tunnel are equipped with single-layer environmentally friendly lead curtains of 0.5 mmPb. The main body adopts 2–6 mm lead plates to guarantee that external radiation complies with national safety standards. |
Basic Parameters | |||
Rated Load of Conveyor Belt |
100 kg |
Conveyor Speed |
0.2 ±0.02 m/s |
Penetration Resolution |
>34AWG (0.127 mm) |
Penetration Power |
>46 mm Steel Plate |
Wire Resolution |
40AWG (0.0787 mm) |
Spatial Resolution |
Horizontal: Φ0.8 mmVertical: Φ0.8 mm |
Inspection Throughput |
1600 pieces/h |
Noise Level |
|
Leakage Radiation Dose |
Single Inspection Dose |
||
Number of X-ray Sources |
1 |
X-ray Beam Direction |
Bottom-shooting |
X-ray Beam Divergence Angle |
80° |
Cooling / Duty Cycle |
Sealed Oil Cooling / 100% |
Tube Current |
0.4~1.2mA (Adjustable) |
Tube Voltage |
80–160 KV (Adjustable) |
Power Consumption |
Max. 0.5 KWA |
Food, Medicine & Magnetic Tapes |
No adverse effect after repeated exposure |
Control Interface |
Analog Control Interface |
||
Protection Functions |
Overvoltage, Overcurrent & Overtemperature Protection |
||
Safety Performance |
Safe for films, chips and electronic products |
||
Image Processing System | |
Operating System |
Windows 10 |
Monitor |
21.5-inch wide screen, Resolution: 1440*900 |
Color Image Display |
Pseudo-color display based on material density |
Local Enhancement |
Sharper outline edges of objects |
High Penetration Display |
Improve contrast of bright areas in the image for clearer easily-penetrated regions |
Low Penetration Display |
Improve contrast of dark areas in the image for clearer hard-to-penetrate regions |
Magnifier |
Partial zoom function, real-time dynamic 100-level magnification |
Brightness Adjustment (Enhance/Darken) |
Increase or decrease image brightness |
Image Recall / Forward Review |
Retrieve the latest 50 images and support full image processing operations |
Image Reset |
One-click restoration of image display to original state |
Image Storage |
Supports storage of 100,000 images, continuous recording during operation |
Dimensions & Weight | |
Overall Dimension (Without Receiving Rack) |
1100(H) × 784(W) × 1475(L) mm |
Packing Dimension |
1330(H) × 870(W) × 1690(L) mm |
Tunnel Dimension |
500(W) × 300(H) mm |
Weight |
220 kg |
Environmental Conditions | |
Operating Temperature / Humidity |
0°C ~ +45°C / 10%~90% (Non-condensing) |
Storage Temperature / Humidity |
-20°C ~ +60°C / 20%~90% (Non-condensing) |
Operating Voltage |
220V AC (±10%), 50±3Hz |
