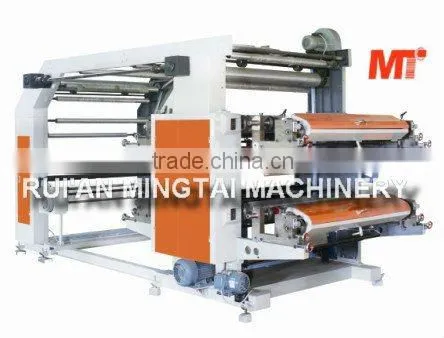

Four colors price of flex machine
Use:
This machine is suitable for printing such packing materials as non woven fabric,film,plastic bag,glass paper and roll paper etc.And it is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.
Characteristics:
1.Easy operation,flexible starting accurate colour register.
2.The meter counter can set printing quantity according to the requirement.Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually,It will automatically stir the printing ink after lifting.
4.The printing ink is spread by the knurled cylindder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.
6.360 continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
Main Technical Variables :
Type |
MT-4600 |
MT-4800 |
MT-41000 |
Max.Effective Printing Width |
560mm |
760mm |
960mm |
Max.Web Width |
600mm |
800mm |
1000mm |
Max.Printing Speed |
80m/min |
80m/min |
80m/min |
Max.Mechanical Speed |
90 m/min |
90 m/min |
90 m/min |
Max.Diameter of Roll Material |
450mm |
450mm |
450mm |
Internal Diameter of Roll Core |
76mm |
76mm |
76mm |
Rang of Repeat Printing Length |
191-1500mm |
191-1500mm |
191-1500mm |
Accuracy of Registration |
±0.3mm |
±0.3mm |
±0.3mm |
Plate Thickness(Bothside adhesive included) |
2.38mm |
2.38mm |
2.38mm |
Heating Power |
7Kw |
10.5Kw |
14Kw |
Total Power |
11.5Kw |
15Kw |
18.5Kw |
Weight of Machine |
3000kg |
3500kg |
4000kg |
Overall Dimension |
L4300×W1600×H2500mm |
L4300×W1800×H2500mm |
L4300×W2000×H2500mm |
