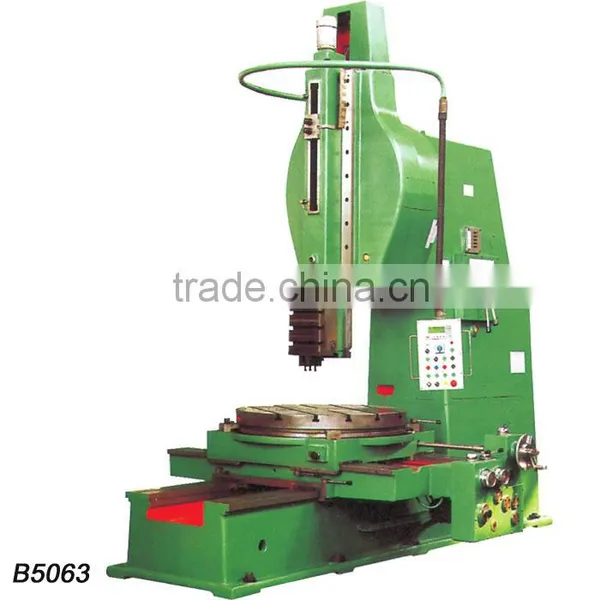

B5063 Automatic Metal Slotting Machine

Name: B5063 Automatic Metal Slotting Machine
Brand: UNITECH
SKU: 107459095
Availability: InStock

Tengzhou Uni-Tech Co., Ltd.

US$ 5,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

UNITECH

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name UNITECH

Model Number B5063

Voltage 220/380/400

Power(W) 10kw

Dimension(L*W*H) 3580*2390*3660mm

Weight 4000kgs

Certification CE, ISO9001

Warranty ONE YEAR

After-sales Service Provided Overseas third-party support available

automatic metal slotting machine

Product Description

1. This vertical planning active surfaces of parts and notch etc.

2. The machine runs smoothly owing to it adopts double crank mechanism.

3. The length of ram stroke can be adjusted by power

4. The machine operates easily because motion of the working table is driven by electric motor.

5. It has a pump for lubrication and cooling cutting tool woo piece.

Max.Slotting Length of ram	630	mm
Number of ram strokes(per min)	8,12,20,30	r.p.m
Indination of ram head	±10°	deg
Distance between tool holding surface and colunmn front	1120	mm
Collet for slotting tool with sidth of Table	22H11	mm
Distance between workable and the lower side of slide	800	mm
Max .longitudinal travel of table	1120	mm
Range of table longitudinal and transverse feeds ram storke	0.10,0.20,0.32,0.54,0.80,1.30	mm/per
Rang of table rotary feed deg per ram storke	3`,6`,9`36``,16`12``,24`,39`	deg/per
Diameter of the worktable	1120	mm
Max.weight of the worktable	2000	kg
Width of main drive motro	22H11	mm
Power of main drive motor	10	kw
Max Cutting force	2000	N
Machine net weight(approx)	11	t
Overall dimension(LwH)	358023903660	mm
