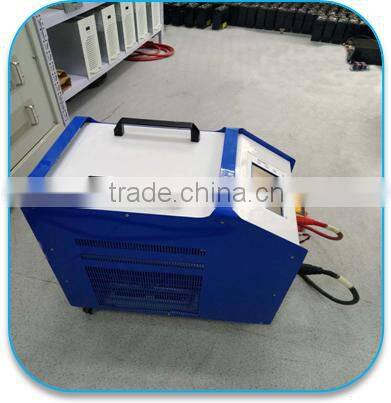

Help Center220V 50A Battery Testing/batttery Dischargr/battery Discharge Tester/battery Load Bank /UPS Battery Tester
Related Products
-
48V Battery Bank Test Equpmetn for Telecom Backup PowerNegotiableMOQ: 1 Unit -
48VDC Battery String Discharge Tester 4500Ah Battery Capacity Test Monitoring Cell Terminal Voltage 1.2V/2V/6/12VUS$ 2,350 - 2,750MOQ: 1 Unit
-
48VDC Telecom Backup Power Maintenance EquipmentNegotiableMOQ: 1 Unit
-
48V Battery Discharge Tester ( 2000Ah Battery Capacity )NegotiableMOQ: 1 Unit
-
220V 600Ah Battery Testing/battery Discharger/battery Load Tester Voltage Measurement AccuracyNegotiableMOQ: 1 Unit

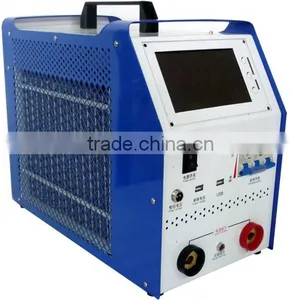

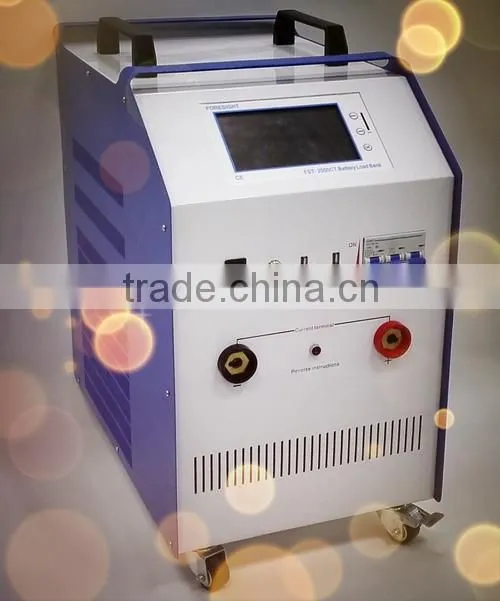

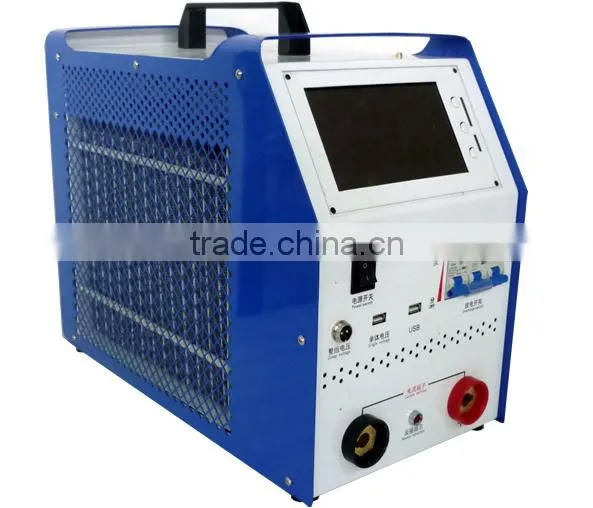

220V Battery Load Bank is specifically designed for the maintenance of the lead-acid battery discharge in the electricity sector. It is a new high-tech intelligent product that provides safe, reliable and convenient constant testing equipment for the DC system
Product Type:

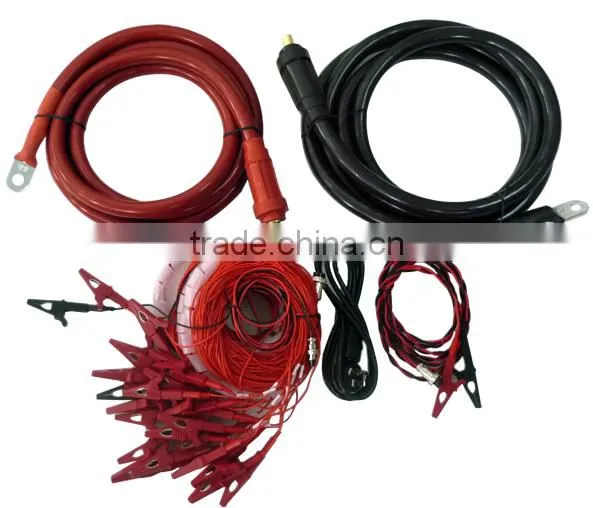

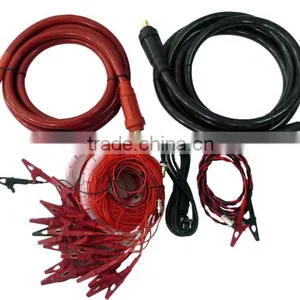

ACCESSORIES:
Different discharge current range
String Voltage |
220VDC |
|
Discharge current Range |
30A 60A 100A 150A 200A 300A |
Features |
Specifications |
||||
Model |
220/30 |
220/60 |
220/100 |
220/200 |
|
String Voltage measurement range |
0~285V |
||||
String Voltage Resolution |
0.01V |
||||
Voltage measurement accuracy |
0.5% |
||||
Cell Voltage Resolution |
0.01V |
||||
Discharge current Range |
2~30A |
2~60A |
2~100A |
2~200A |
|
Discharge Voltage of Constance current and constant power |
180~280V |
||||
Resolutions |
0.1A |
||||
Current measurement resolutions |
1% |
||||
Power Supply |
AC 100V- 220V±15% 50Hz/60Hz |
||||
Cooling mode |
Air Cooling |
||||
Communication Mode |
RS232 and SD Card |
||||
Display |
7inch Touch screen |
||||
High-Voltage insulation test |
Input-The enclosure:2200Vdc 1min Input-Output:2200Vdc 1min Output- The enclosure:700Vdc 1min |
||||
Safety standard |
EN610950 |
||||
Work Temperature |
-5~50℃ |
||||
Storage Temperature |
-40~70℃ |
||||
Humidity |
Relative humidity 0~90%(40±2℃) |
||||
Noise |
<60dB |
||||
Dimensions |
40x225x300mm |
480x225x410mm |
600x250x410mm |
600x225×x630mm |
|
Weight |
<10.5Kg |
<13Kg |
<15.5Kg |
<25Kg |
|

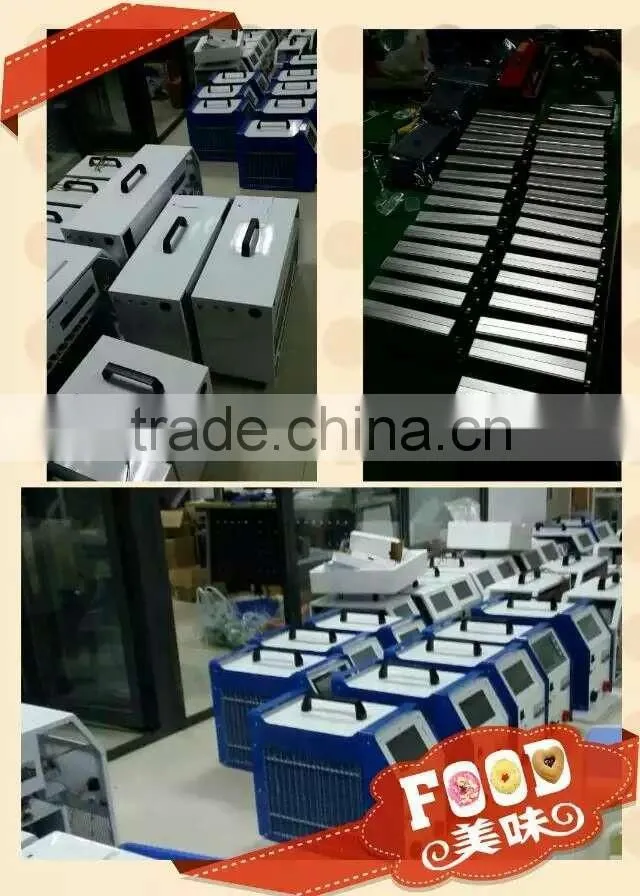

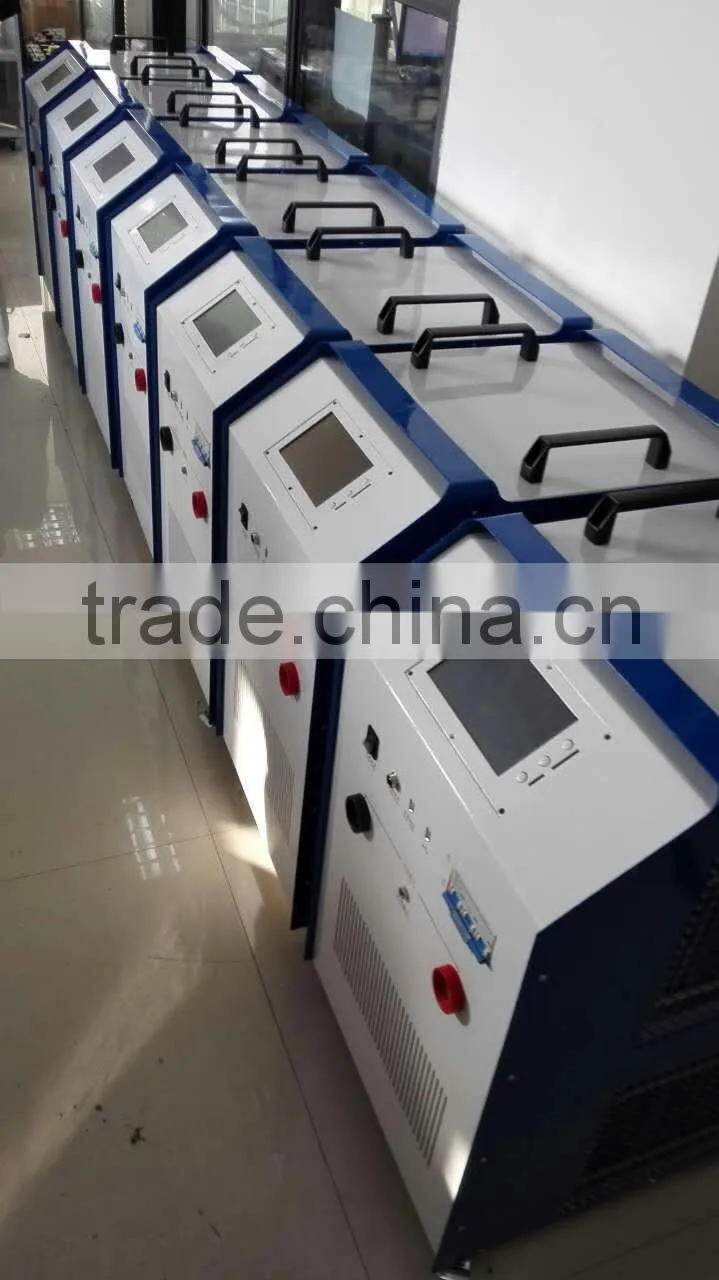

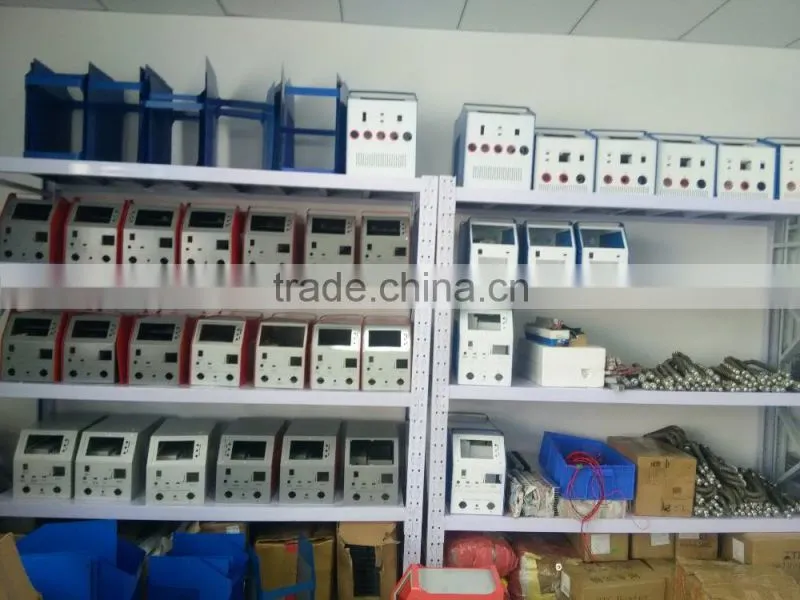

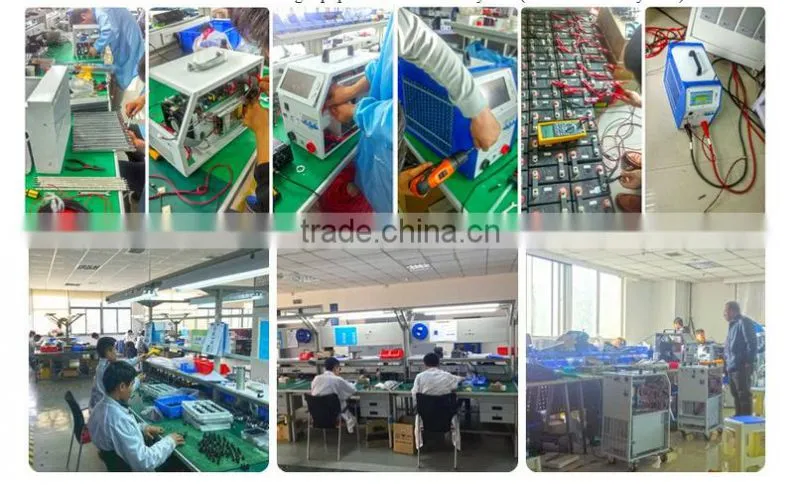

WORKSHOP AND PRODUCTION LINE:

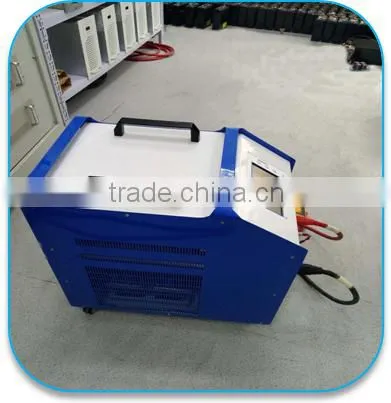

PRODUCT INSPECTION: IN THE LABRATORY:

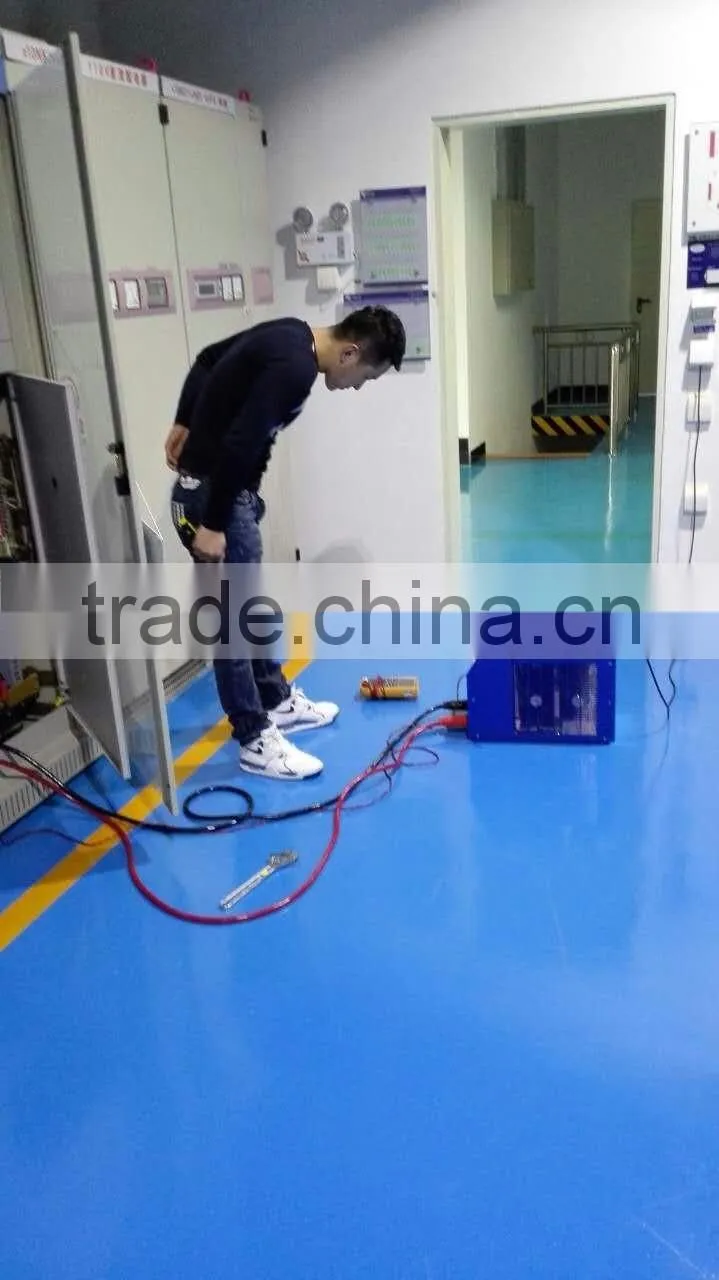

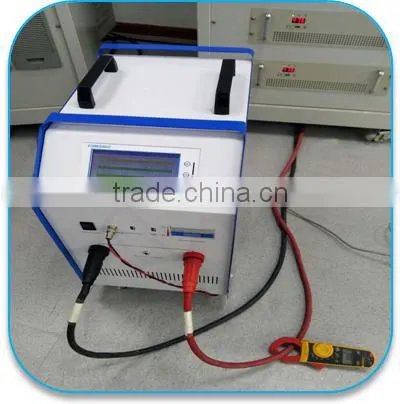

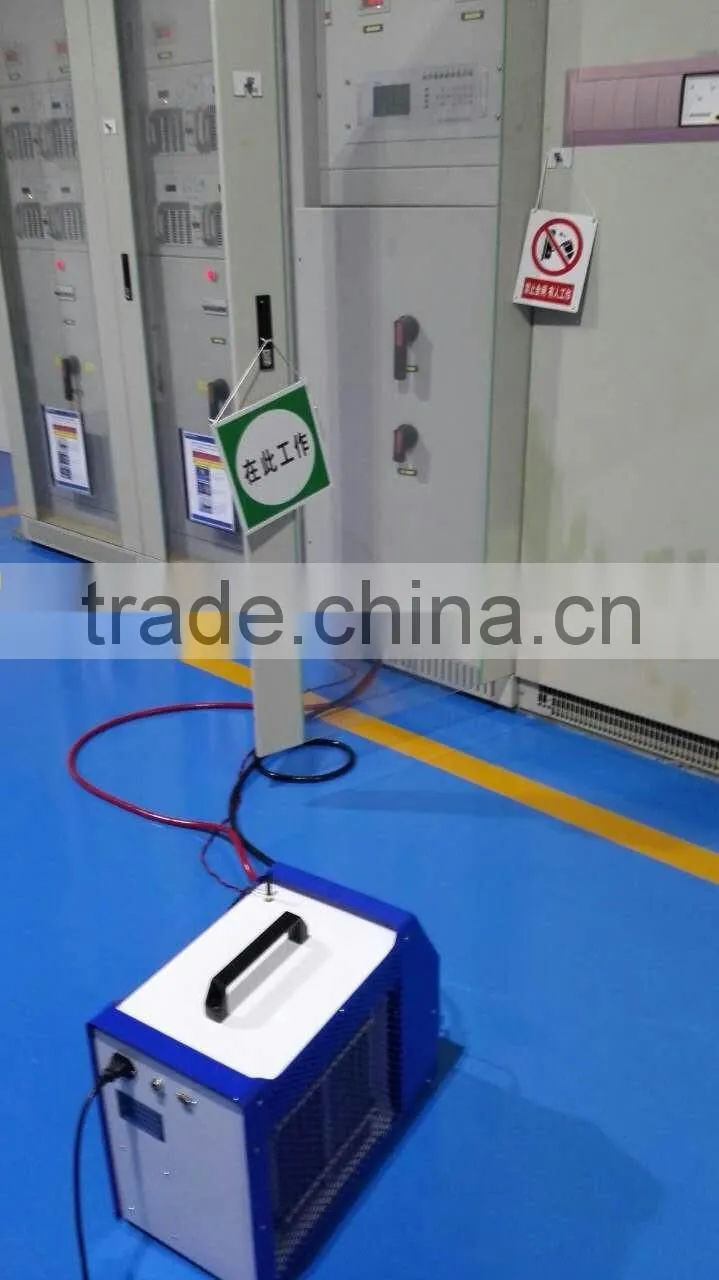

APPICATION CASE IN CLIENT'S END:

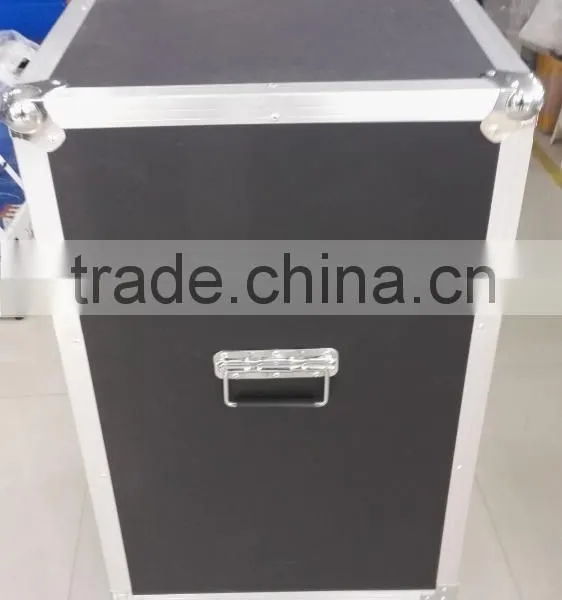

SHIPPING SERVICE:
