Product Details
| Place of Origin | Jiangsu, China | Brand Name | KANGMINGSI | |
| Model Number | 6BTA3.9-GM65 | Output Type | AC Three Phase | |
| Speed | 1800rpm | Frequency | 60Hz | |
| Rated Power | 50KW/62.5KVA | Rated Voltage | 440V | |
| Rated Current | 90A |
Product Description
60hz marine generator-Diesel generator set-China OEM Manufacturer-CCS,BV
Kangmingsi Series Generator sets Main Feature
Power(50Hz):30KW-1000KW(37.5KVA-1250KVA);
110V,220V,380V,400V,415V,440V,480V,660V,690V are optional;
Electrical start,Spring start and air start are optional;

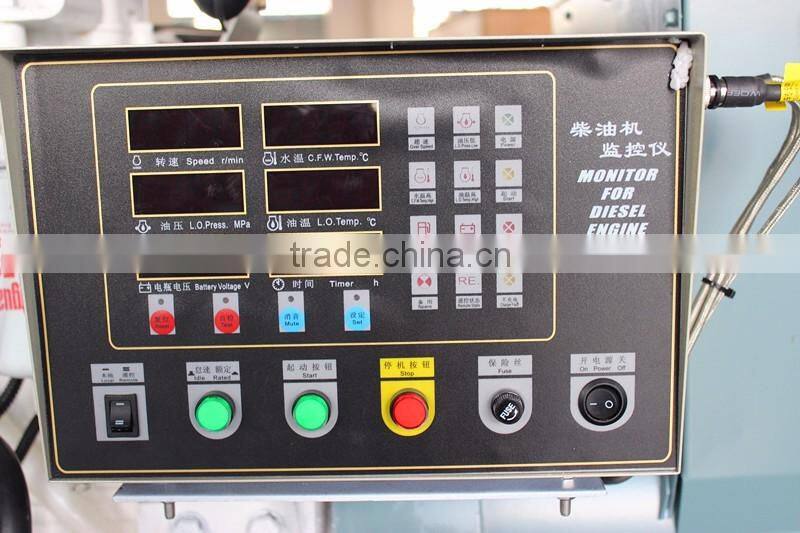

Engine monitor panel and genset control panel are optional;
Powered by KANGMINGSI engine coupled with Marathon,stamford,Siemens,Landian,Sanbo alternators are optional;
IMO Tier II Certificate;
CCS approved.
Kangmingsi Engine Technical data
Engine brand:Kangmingsi | |
Model | 4BTA3.9-GM65 |
Type | In-Line,Direct-Injection, |
Bore/stroke(mm) | 102/120 |
Cylinder Numbers | 4 |
Displacement(L) | 3.9 |
Compression ratio |
|
Prime power/speed | 65/1800 |
Standby power(kW) | 72 |
Starting method | Electric |
Governing method | Electronic(Air optional) |
Aspiration method | TDI |
Contionous Power/Speed(KW(ps)/r/min | 65/1800 |
Fuel consumption | ≤195 |
Rotation direction | Counter clockwise |
Alternator Technical data
Alternator model | MP-H-50-4 |
Alternator manufacturer | Marathon |
Exciter type | Single bearing, Brushless, Self-excited |
Rated output prime power | 50 kW |
Rated speed | 1800 RPM |
Rated frequency | 60 Hz |
Phase | 3 |
Rated voltage | 440 V(Available with customer requirements) |
Power factor | 0.8 |
Field Volt | 40V |
Field Amps | 1.7A |
Insulation grade | H/H |
Protection grade | IP23 |
Package:Plywood
Sudong Power Generating Equipment Co.,Ltd is a specialist factory in design and manufacture of generators set such as Marine type,Land Type,Gas Type and Sound-proof generator set,Mobile generator,Disel Pump set.
OEM Manufacturer,high quality,competitive price.
Conforms to ISO9001,CE,CCS,BV,ABS,RINA,DNV,GL etc
More details,welcome to contact us.
