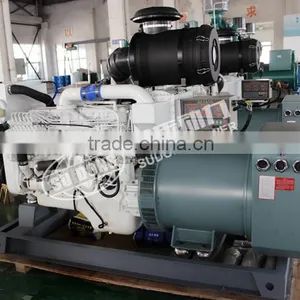

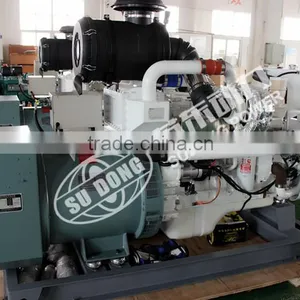

60HZ Marine Generator-OEM DIESEL Generator Manufacturer-Stamford Alternator-export to Bangladesh

Name: 60HZ Marine Generator-OEM DIESEL Generator Manufacturer-Stamford Alternator-export to Bangladesh
Brand: SUDONG
SKU: 107130923

US$ 15,000 - 26,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

SUDONG

Model Number:

SDCM160

Taizhou Sudong Power Generating Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name SUDONG

Model Number SDCM160

Output Type AC Three Phase

Speed 1800RPM

Frequency 60Hz

Rated Power 160kw

Rated Voltage 440V

Rated Current 288A

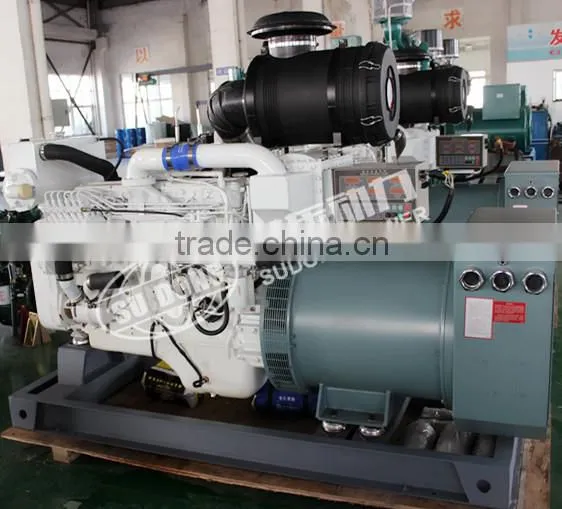

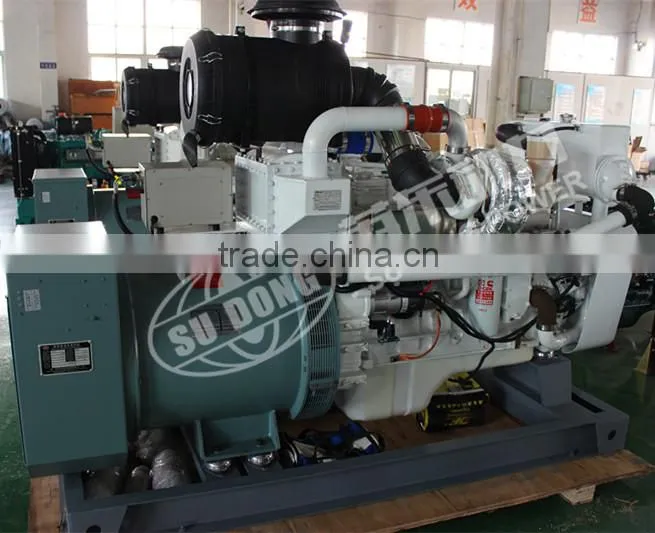

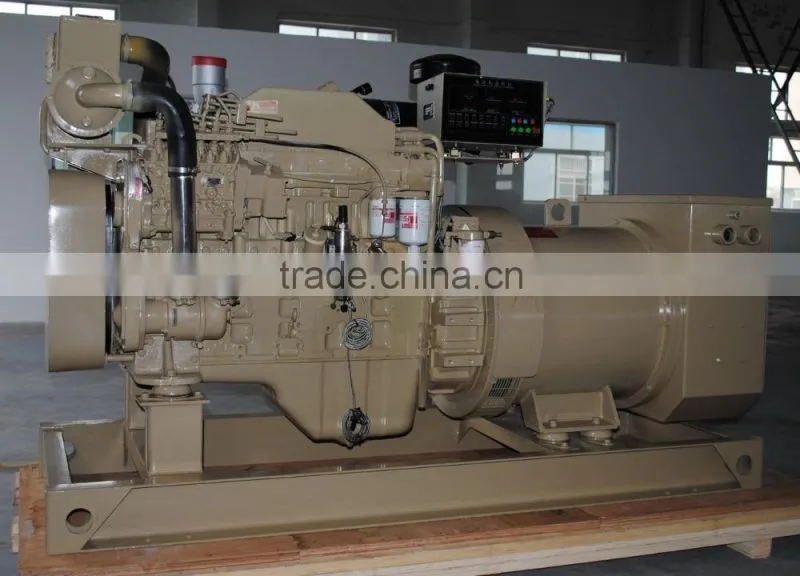

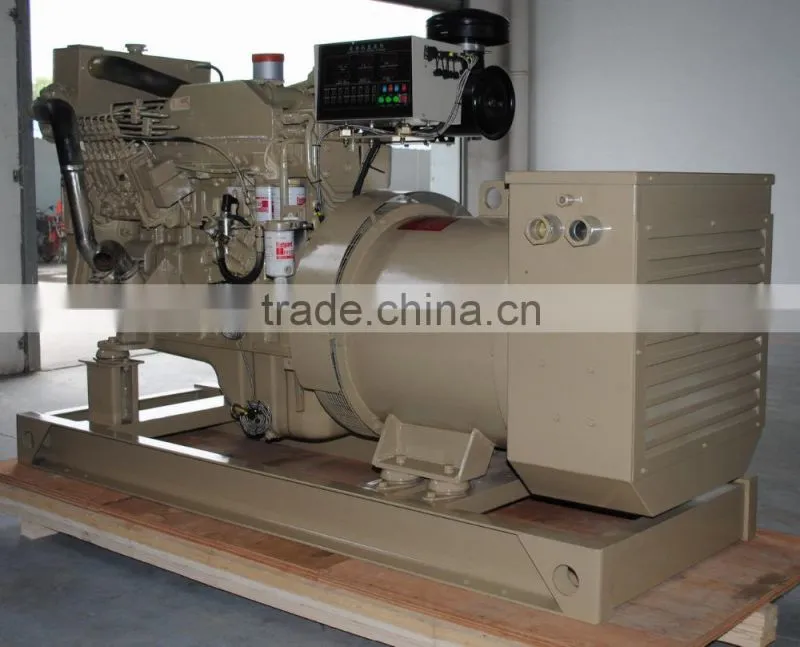

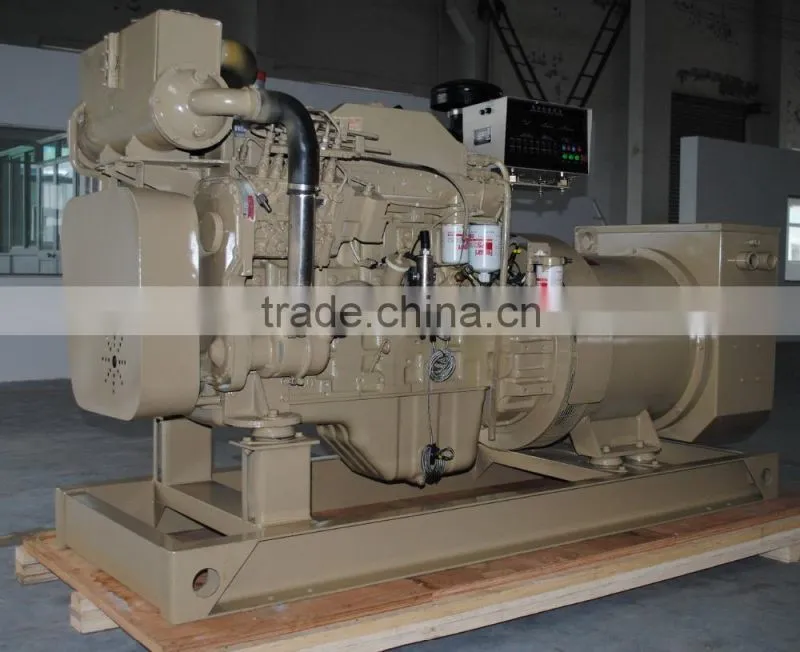

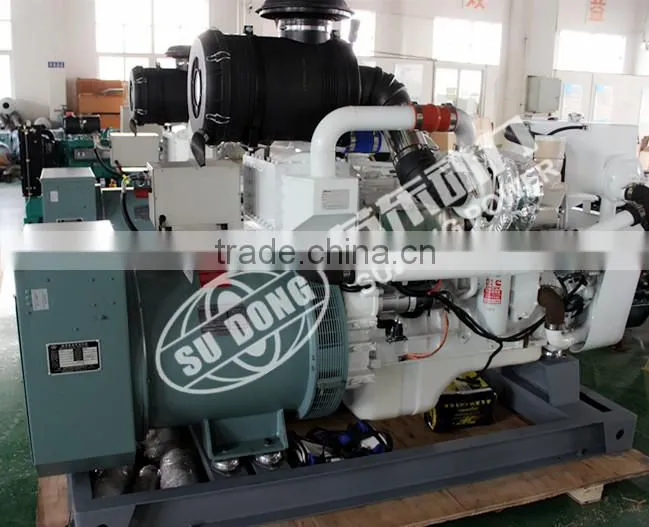

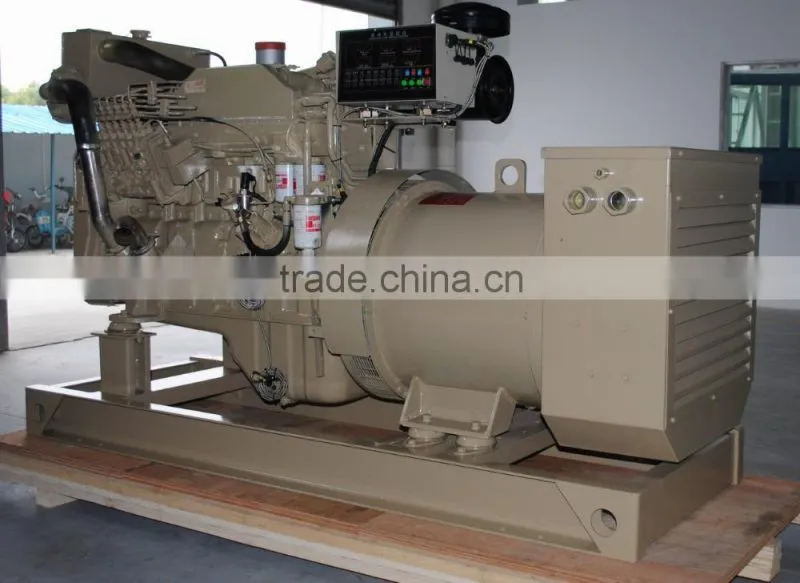

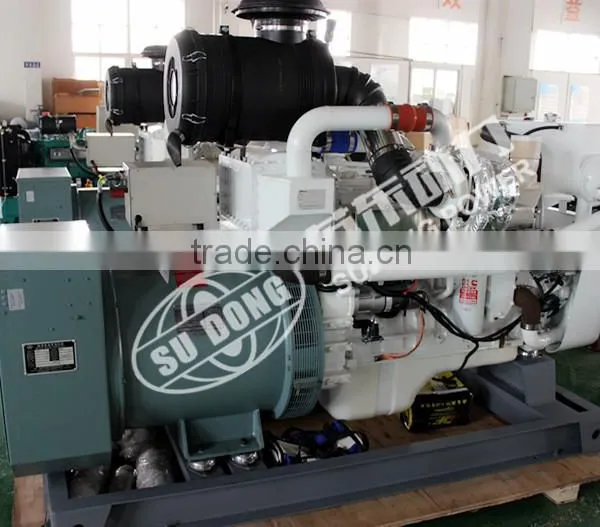

60HZ Marine Generator-OEM DIESEL generator manufacturer-Stamford alternator-export to Bangladesh

SUDONG POWER is your reliable partner in your power solutions,and welcome to contact us by SKYPE:julie.liu9

160kw Emergency marine generator set with CE

1.Main technical data of genset
1.1	Model	SDCM160
1.2	Prime power	160KW
1.3	Prime voltage	230/400V
1.4	Speed	1800 rpm
1.5	Weight	3180kg
1.6	Overall dimension	2620×980×2290mm (just for reference)
2.Main technical data of engine
kangmingsi engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1	Brand	kangmingsi
2.2	Model	NTA855-DM
2.3	Prime power	205KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Cooling method	By heater exchanger
2.7	Bore/Stroke	140×152 mm
2.8	Displacement	14 L
2.9	Starting method	Electric
2.10	Fuel consumption	205g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	Marathon
3.2	Model	MP-H-160-4
3.3	Prime power	160KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	440v
3.6	Frequency	60 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
