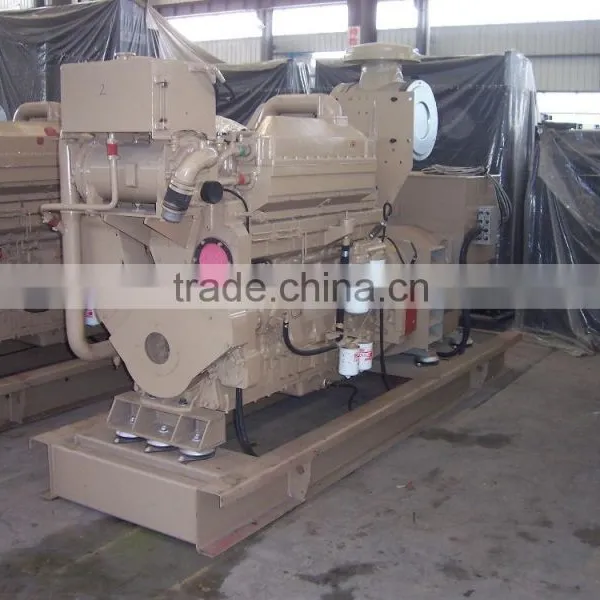

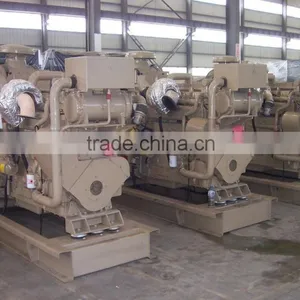

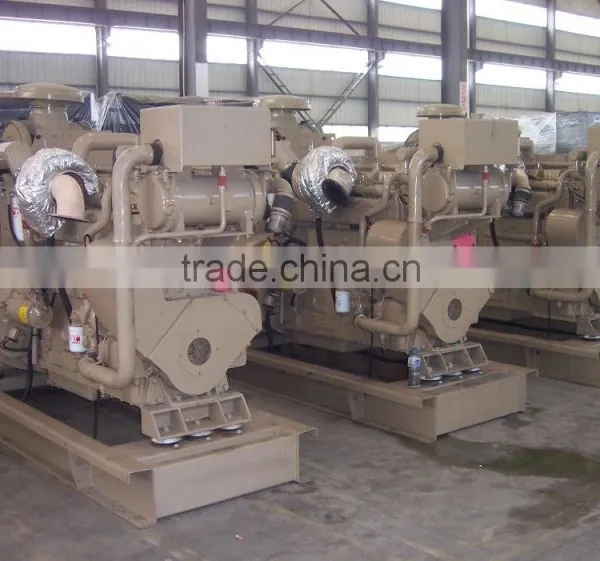

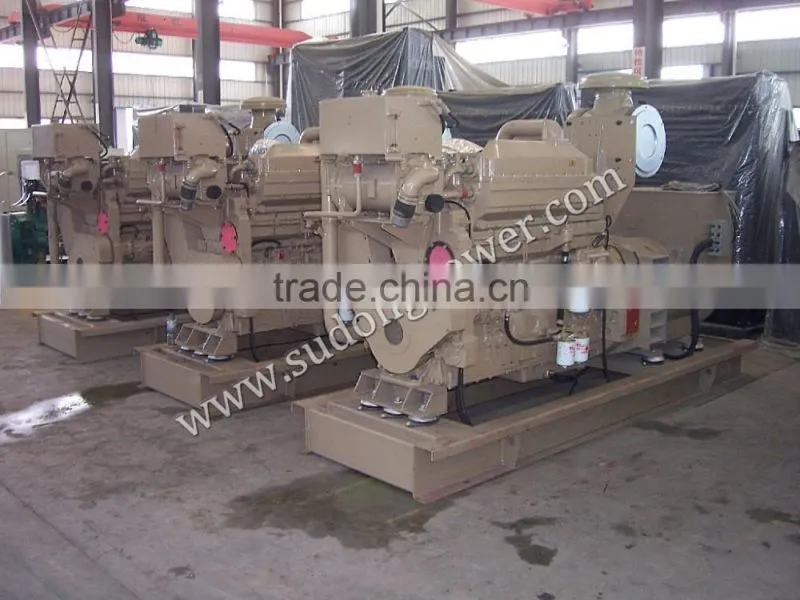

K19-DM Marine generator with Tier2-Diesel generator OEM Manufacturer-export to Africa
Kangmingsi Main/Harbor generator
Rated Power:30KW-800KW(38KVA-1000KVA);
Vlotage:50HZ,400V;Customized generatore:60HZ,440V and others are optional;
Electrical start,Spring start and air start are optional;
Engine monitor panel and genset control panel;
Powered by YUCHAI Engine coupled with Sanbo;Stamford,Siemens,Liandian,Marathon alternators are optional;
IMO Tier II Certificate;
CCS Approved.
350KW/437.5KVA Yuchai Engine Technical Parameters
| Engine brand:Yuchai | |
| Model | K19-DM |
| Type | In-Line,Direct-Injection,Four -Stroke,Wet -Cylinder Liner |
| Bore/stroke(mm) | 6-159/159 |
| Displacement(L) | 206 |
| Compression ratio | 14:1 |
| Prime power/speed(kW/r/min) | 410/1800 |
| Standby power(kW) | 448 |
| Starting method | Electric |
| Governing method | Electronic(Air optional) |
| Aspiration method | Turochager |
| Fuelconsumption(g/kW.h) | ≤240 |
|
Rotation direction of crankshaft |
Counter clockwise(face to flywheel end) |
Marathon Alternator Technical Data
| Alternator model | Stamford |
| Alternator manufacturer | HCI544C |
| Service Duty | S1 |
| Rated output prime power | 350 KW/437.5KVA |
| Rated speed | 1800 RPM |
| Rated frequency | 60 Hz |
| Current(A) | 630 |
| Phase | 3 |
| Connect | Y |
| Rated voltage | 440 V(Available with customer requirements) |
| Power factor | 0.8 |
| Exc.volt(V) | |
| Exc.curr(A) | |
| Insulation grade | H/H |
| Protection grade | IP23 |
Product Advantages:
1. Diesel genset comply with CCS,BV,ABS,DNV,GL,RINA,RS.
2. Passed through Certifications:ISO9001,CE
3. Professional engineers and skilled technicals,sales teams.
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Steady relationships with engine and alternators’ supplier both domestic and global.
7. Excellent after sale service.
350KW Kang
Genset Spares show
Company Introductions
Sudong Power is a specialist company in design and manufacture of generator sets.For over 11 years' of development,Sudong power has earned the reputation in the market to supply power solutions for various applications with a broad range in power capacities.
Our goal is o sustain at the forefront of domestic and global market for power solutions in an upgrading power range in terms of perofrmance,quality and services.SUDONG POWER is trading forward to this goal with steady steps.
Company Products Show
Certificates and Factory show
Sudong Power your reliable partner for generator set.
Any more welcome to contact us.
