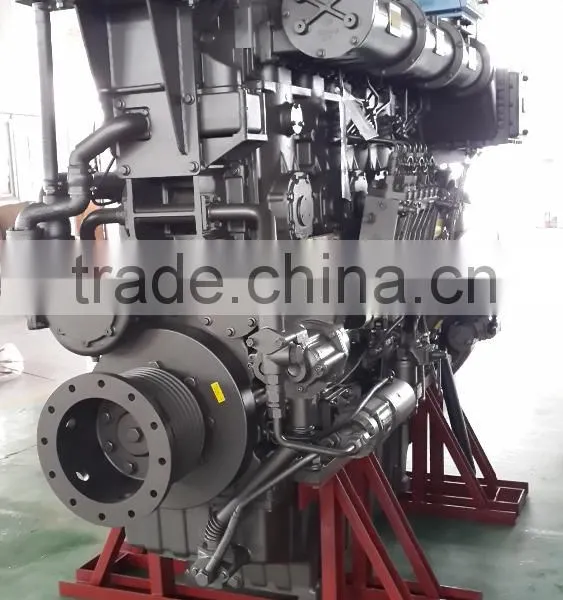

Help CenterCCS Certificate 706KW YUCHAI Diesel Generator Marine Engine Ship Engine
Related Products
-
350KW Marine Generator With Tier2-Diesel Generator OEM Manufacturer-export to AfricaUS$ 2,000 - 70,000MOQ: 1 Set -
K19 Marine Generator With Tier2-Diesel Generator OEM Manufacturer-export to AfricaUS$ 2,000 - 70,000MOQ: 1 Set
-
20KVA Marine Generator Sold to Philippines-yuchai Engines Generator-China Oem Manufacturer-ZC Marine Diesel GeneratorUS$ 2,000 - 70,000MOQ: 1 Set
-
Small Marine Generator 25KVA Sold to Philippines-yuchai Engines Generator-China Oem Manufacturer-ZC Marine Diesel GeneratorUS$ 2,000 - 70,000MOQ: 1 Set
-
20KW Marine Generator Sold to Philippines-yuchai Engines Generator-China Oem Manufacturer-ZC Marine Diesel GeneratorUS$ 2,000 - 70,000MOQ: 1 Set
SUDONG POWER is a specialist company in design and manufacture of generator sets.For over 11 years of development ,
SUDONG power has earned the reputation in the market to supply power solutions for various applications with a broad range in power capacities.
Genset general feature: |
1.Generator can be used as Main Marine emergency generator
2.CCS, approved
3.Cooled by Sea and fresh water heat exchanger
4.Adopt Kangmingsi Engine
5.Marathon single-shaft alternator standard , Stamford alternator is optional
6.Parallel connection: Two and more normal marine generating sets can transfer loading without stopping ,
and can realize parallel.
7.Standard SAE coupling the engine and alternator
8.With efficiency anti-vibration devices
9.Cold rolled steel one time molded base
10.High reliability , low use and maintenance cost
Product information in the data parameters and prices are for reference only, specific product size, weight and price to the actual product as the standard
Diesel engine parameters
1 |
Brand |
YUchai |
2 |
Model |
YC6CL960L-C20 |
3 |
Prime power |
706KW/519HP |
4 |
Governor type |
Electronic |
5 |
Configuration |
6 cylinder in line |
6 |
Cooling method |
Radiator fan |
7 |
Rated speed | 1000r/min |
8 |
Starting method
|
Electric |
9 |
Weight |
5380kg |
Warranty
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
Certificate & Document
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
6 Control Panel
engine section
type of cooling :Radiator fan |
speed adjustment mode : Electronic Speed governing |
control cabine :cntrol cabinet |
Generator part Brushless copper, self-excitation, AVR |
steel seat |
shock pad |
|
accessories section: diesel engine,electric generator, Random standard tools and spare parts manufacturer |
| technical documents:Diesel engine and generator manual,CCS,ZC or ZY Substituting certificate |
Increase for part
Fire star muffler |
Start the battery or air compressor |
Remote control instrument |
three filters ,sea water pump,Vulnerability consumable such as leather belt |
stand alone type or Base oil tank |
| low noise or rain cover anti-condansation heater |
The company has a Certificate
TAIZHOU SUDONG Power Gengerator Equipment Co.Ld.
ADD:NO.79,XingLingRD,Hailing Industry Zone,Taizhou,Jangsu,China225300
