50KW Marine generator for sale-yuchai engines generator-China oem manufacturer-ZC marine generator export to Philippines
Yuchai Main/Harbor generator
Rated Power:30KW-800KW(38KVA-1000KVA);
Vlotage:50HZ,400V;Customized generatore:60HZ,440V and others are optional;
Electrical start,Spring start and air start are optional;
Engine monitor panel and genset control panel;
Powered by YUCHAI Engine coupled with Sanbo;Stamford,Siemens,Liandian,Marathon alternators are optional;
IMO Tier II Certificate;
CCS Approved.
50KW/62.5KVA Yuchai Engine Technical Parameters
| Engine brand:Yuchai | |
| Model | YC4D75C |
| Type | In-Line,Direct-Injection,Four -Stroke,Wet -Cylinder Liner |
| Bore/stroke(mm) | 4-108/115 |
| Displacement(L) | 4.214 |
| Compression ratio | 17:01 |
| Prime power/speed(kW/r/min) | 55/1800 |
| Standby power(kW) | 60.5 |
| Starting method | Electric |
| Governing method | Electronic(Air optional) |
| Aspiration method | Turbocharged and Intercooled |
| Fuelconsumption(g/kW.h) | ≤200 |
| Rotation direction | Counter clockwise(face to flywheel end) |
| of crankshaft | |
Alternator Technical Data
| Alternator model | Marathon |
| Alternator manufacturer | MP-H-50-4 |
| Service Duty | S1 |
| Rated output prime power | 50 KW/62.5KVA |
| Rated speed | 1800 RPM |
| Rated frequency | 60 Hz |
| Current(A) | 164 |
| Phase | 3 |
| Connect | Y |
| Rated voltage | 220 V(Available with customer requirements) |
| Power factor | 0.8 |
| Exc.volt(V) | 40 |
| Exc.curr(A) | 1.7 |
| Insulation grade | H/H |
| Protection grade | IP23 |
Product Advantages:
1. Diesel genset comply with CCS,BV,ABS,DNV,GL,RINA,RS.
2. Passed through Certifications:ISO9001,CE
3. Professional engineers and skilled technicals,sales teams.
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Steady relationships with engine and alternators’ supplier both domestic and global.
7. Excellent after sale service.

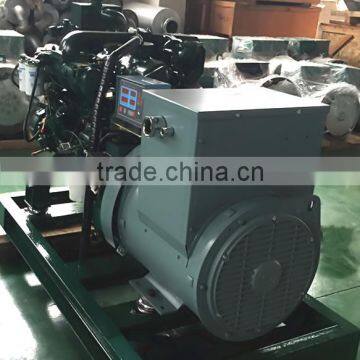

50KW YUCHAI MARINE GENERATOR EXPORTED TO Philippines
