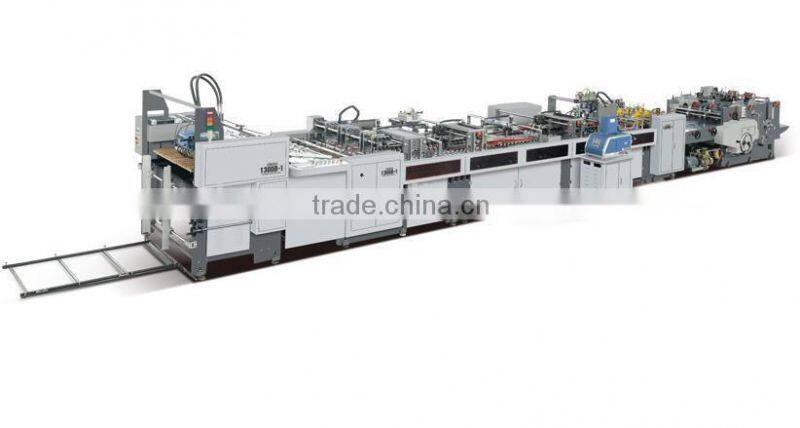

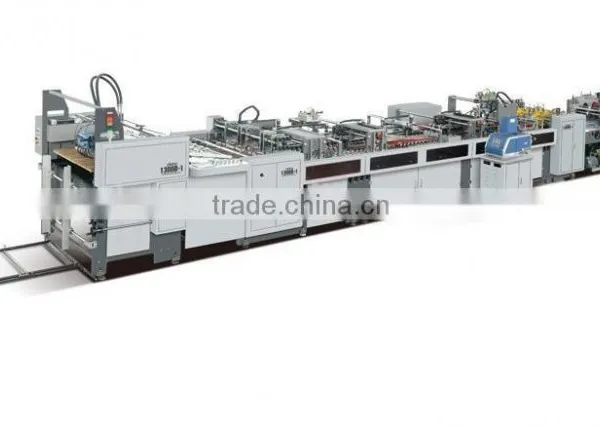

SZB1300B-1 sheeting feeding paper bag forming machine

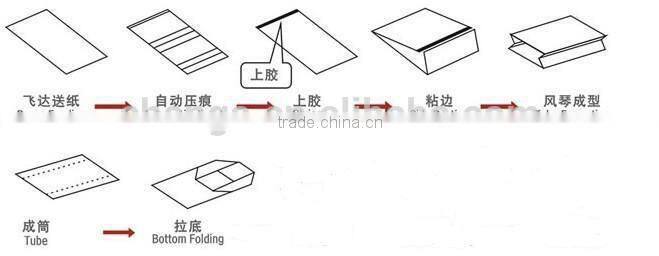

SZB1300B-1 sheeting feeding paper bag forming machine is suitable for the mass bag production of special paper and different types of polished and laminated paper. It is the first choice for manufacturing high-grade and luxury handbags. The paper goes automatic feeding by feeder(frequency control), automatic positioning by guide and line aligning system, automatic creasing, automatic pasting by cold glue device or hotmelt glue, automatic folding organ, automatic square bottom folding and output. This product applies a number of proprietary technologies. It uses touch screen man-machine interface operation, making production high precision, fast and convenient to adjust and control. Using digital system to control the production process which lay a solid foundation of standardized production process.
Technical parameters:
Max.sheet (L x W) |
1200*650mm |
Min.sheet (L x W) |
700*360mm |
Sheet weight |
100g-300g/m2 |
Bag width |
185-500mm |
Bottom width |
80-180mm |
Bag length |
200-600mm |
Total power |
14kw |
Machine size |
14300*2400*1800mm |
Speed |
100bags/min |
Total weight |
12T |
Glue Type |
Water soluble cold glue(hot-melt glue) |
Range for Machining

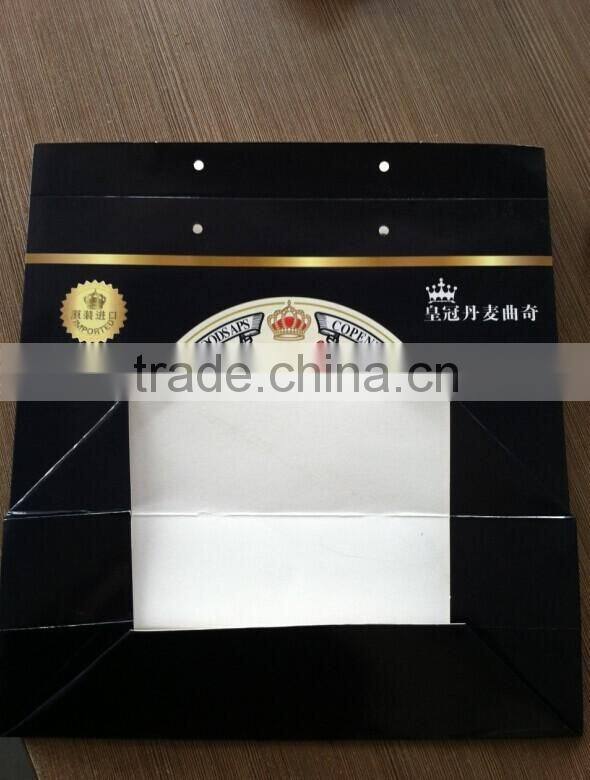

Suitable for top grade bag (pre-creased paper sheets), 10,000PCS mass production.
Paper type: Kraft paper, art paper, white board, laminated paper etc.
