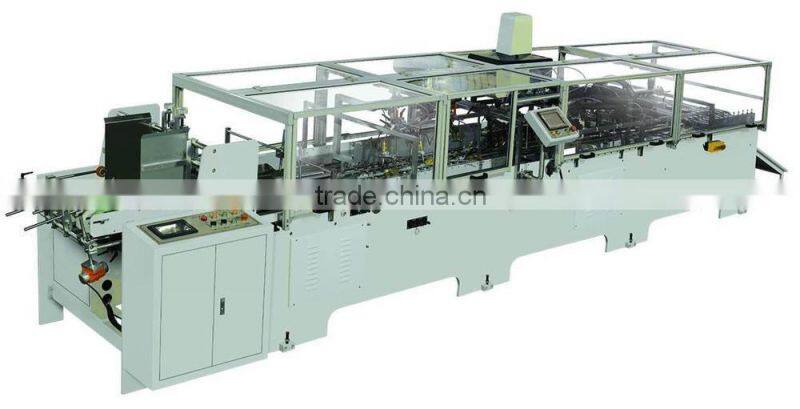

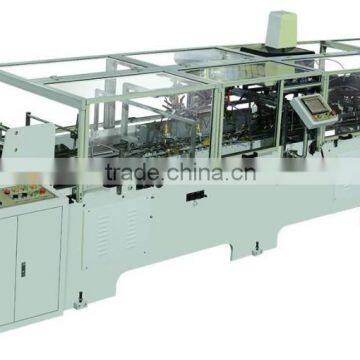

Automatic Handbag Bottom-gluing Machine SZB50B-1
SZB-50B-1 Automatic Handbag Bottom-gluing Machine features a continuous functions of automatic delivery of manually-folded bag bottom (the paperboard can be inserted or not), automatic glue spray, automatic pasting, automatic folding, pressing and finished bag bottom output.
This machine adopts touch-screen operation, motion controller which is better than PLC, with high precision, with four hot-melt spray guns. The user can adjust the glue thickness and gluing position according to requirements. With high precision and speed, this machine can produce various specifications of bags.
Suitable paper: Kraft paper, art paper, white board paper, white cardboard,etc.(including film adhensive paper).

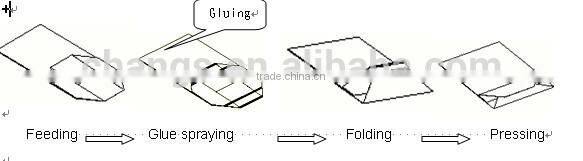

Handbag Forming Process
Technical parameters:

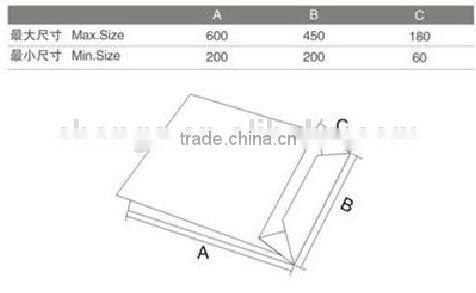

Bottom thickness |
60-180mm |
Speed |
100bags/min |
Power consumption |
6kw |
Glue type |
Hot-melt glue |
Machine size (LxWxH) |
7000x1500x1700mm |
Total weight |
1800kg |
