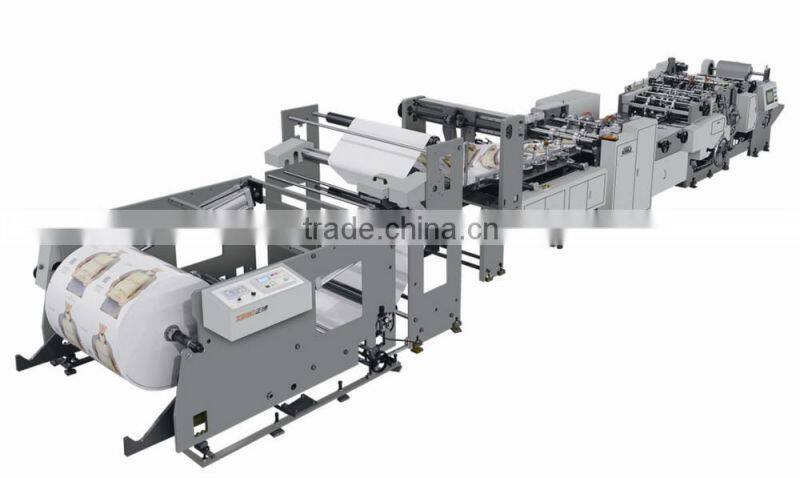

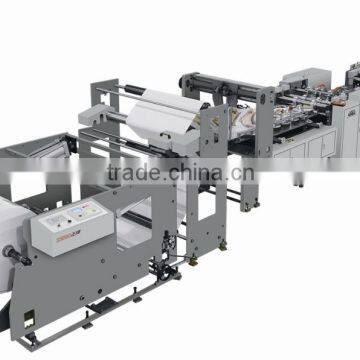

SZB450J Roll feeding paper bag machine

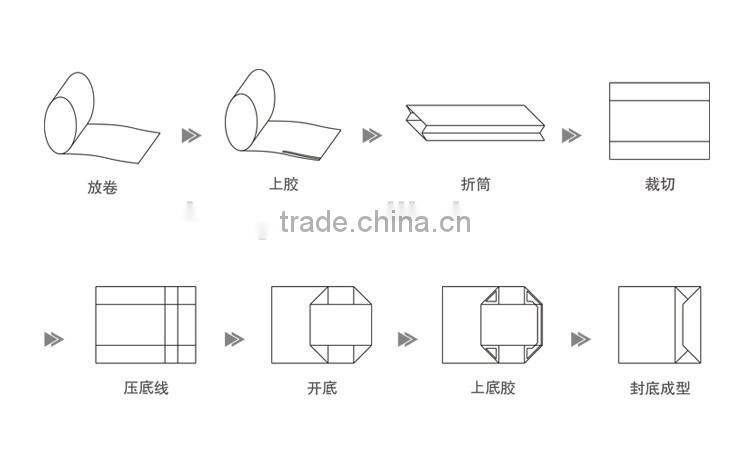

SZB450J roll-feeding paper bag making machine is applicable to roll-feeding raw material in large quantity production. It sets mechanical, electrical, pneumatic, optical multi-field in one, can finish paper gluing, forming, M-folding, slitting, creasing, bottom sealing, compaction molding, complete handbags production. The machine is controlled by a central computer, at the bottom to achieve a seamless treatment, ensure perfect quality .
Parameter:
Roll paper width | 1230-600mm |
Paper bag length | 270-470mm |
Paper bag width | 260-430mm |
Bag bottom width | 80-150mm |
Paper weight | 90-180g/m2 |
Max unwinding diameter | ¢1200mm |
Roll inner diameter | ¢76mm |
Output | 90-150bags/min |
Total power | 18.5kw |
Overall dimension | 11900*2500*1900mm |
Machine weight | 8T |
Glue | Water-based cold glue(hot melt glue) |
| A | B | C |
Max size | 150 | 430 | 470 |
Min size | 80 | 260 | 270 |
Send Inquiry to This Supplier
