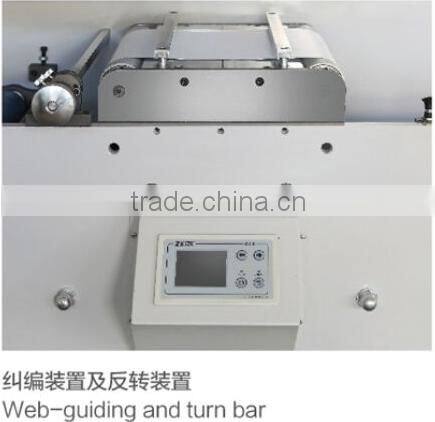

Optional Device: 1. UV DRYER 2. WEB GUIDING AND TURN BAR

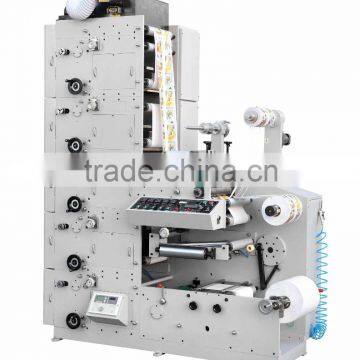

Characteristic:
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic power brake, clutch, (Or controlled by auto tension controller of Mitsubishi of Japan).
3. Each printing unit adopts 360° plate-adjustment.
4. IR dryer for each printing unit. (UV dryer is for option)
5. This machine has die-cutting station, and it can make printing and die cutting finished in one
process.
6. The ink rollers will be separated from the printing roller, and keep running when the machine
stopped.
7. The machine can finish material-feeding, printing, lighting, drying, laminating, die-cutting and
rewinding in a lump. It is an ideal machine for printing note and top-grade adhesive label.
Technical Parameters:
Printing speed | 50m/min |
Max Printing color | 6colours |
Max. width of paper | 450mm |
Max .printing width | 420mm |
Max. unwinding diameter | 600mm |
Max. rewinding diameter | 600mm |
Printing length | 177.8~355.6mm |
Precision of chromatography | ±0.15mm |
Main machine power | 3.0kw |
IR dryer power | 18.5 kw |
Dimensions | 2*1.3*2.7m |
Machine weight | About 2850kg |
Main configuration:
The standard size of rewinding air shaft: 3 inch.
Printing roller:3sets, the size is determined by the user. 15 CS
anilox cylinders:1set, the sizes can be chosen from 200 to 800 by the user. 5 PCS
Mounting machine:1 set
Turn bar: 1set
Unwind tension controller :1piece Mitsubishi of Japan
Transducer :2pcs Mitsubishi of Japan
Rewind tension controller :1piece made in china
Magnetic power brake :2pcs Ningxia, China
Electromagnetism valve: SMC 1piece Japan
Inverter: Dongyuan Brand Taiwan(stop automatic when paper lack)
Contactor: Schneider France
Center relay: Schneider France
Temperature Controller Yuyao in Zhejiang
All Switches: Schneider France
Other low-pressure wiring Schneider, France/ yaohua, China

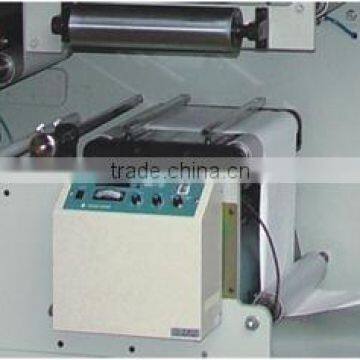

Note: IF THE MATERIAL’S WEB DIAMETER IS LESS THAN 600MM, THE MOTOR WEB GUIDING DEVICE IS SUGGESTED.IT IS ELECTRIC CORRECTION DEVICE.----SEE PICTUIRE 1.

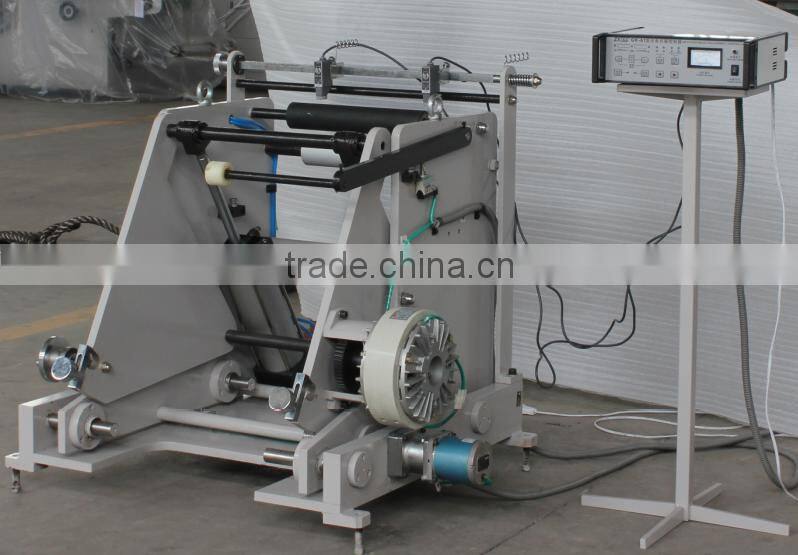

IF THE MATERIAL’S WEB DIAMETER IS BETWEEN 600MM-900MM, THE CORRECTION DEVICE ON SEPARATE FEEDING FRAME IS SUGGESTED. IT’S ELECTRIC EYE CORRECTION.---SEE PICTURE 2
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
