stainless steel Inclined Screw Conveyors

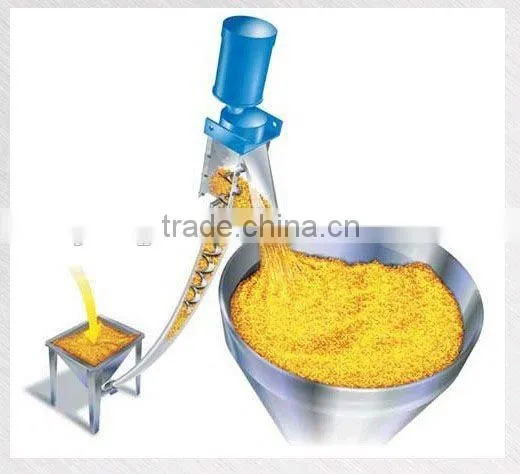

The equipment adopts the principle of screw conveyor, using steel wire spring rotation convey different kinds of powders, granular materials transport from the warehouse to a high level positions, and then turn on the upper r storage bin flashborar, smoothly feed the materials down to rotary vibration sieve, or other ancillary equipments. This process keep reciprocating cycle, thus it can achieve the feeding from low to high automation.
The machine is mainly applied to chemical industry, food industry, metallurgy industry which need to achieve short distance upwards delivery of powers and smaill particale materials, it can be used with the rotary vibration sieve, plastic extrusion machines, injection molding machines and other corollary equipments. It has the advantage of less occupying space , simplification working, saving manpower, improve working conditions, humanity and safety.
In order to properly master the using methods and to prolong the service life, please read this opporarion instructions carefully before run the machine.
| Item | DTC-600 | DTC-1000 | DTC-2000 | DTC-3000 |
| Motor power(kw) | 1.5 | 1.5 | 2.2 | 2.2 |
| Pushing motor power(kw) | 0.55 | 0.75 | 0.75 | 0.75 |
| Loading pipe dia(mm) | 102 | 102 | 102 | 102 |
| Capacity(kg/h) | 600 | 1000 | 2000 | 3000 |
| Silo capacity(kg) | 80 | 150 | 200 | 250 |
| Dimension of silo(cm) | 65*65*80 | 100*75*80 | 120*80*80 | 160*80*80 |
| Weight(kg) | 80 | 150 | 200 | 300 |

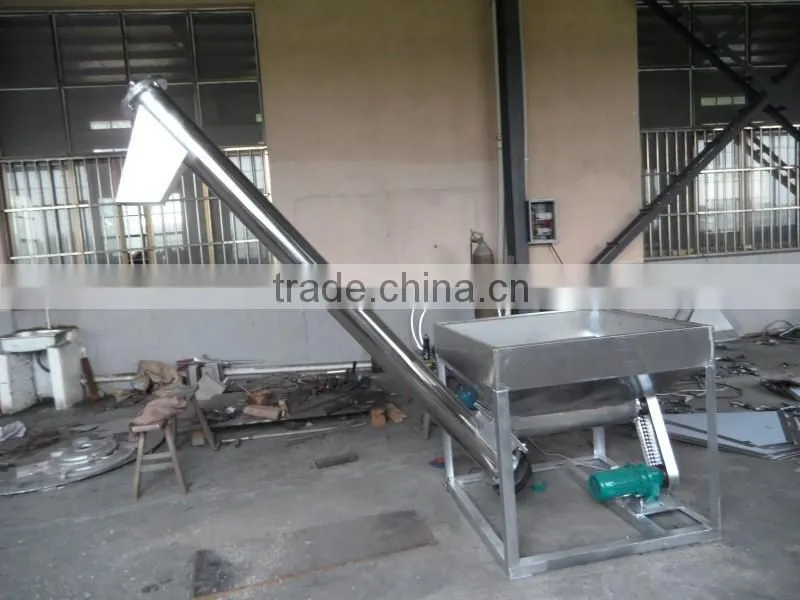

TYPE 1---Normally type /hot sale type

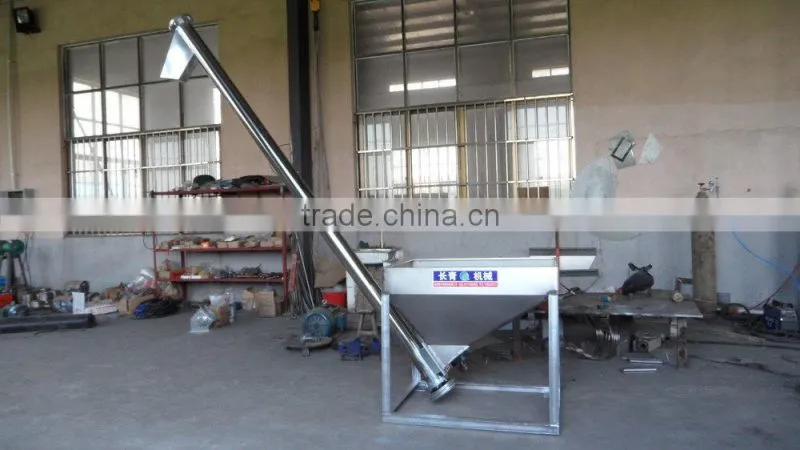

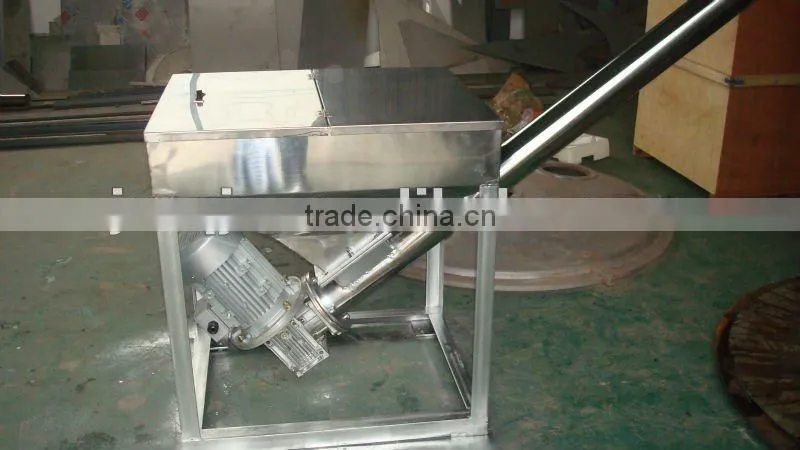

Type 2-custom -motor install pipe bottom
Type 3 custom --push and feeding .

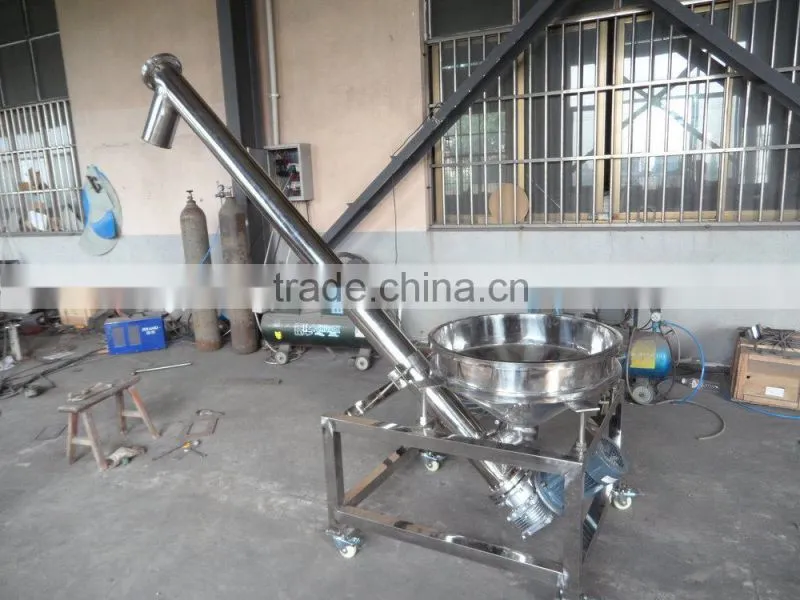

Type 4 custom --round tank and flexible contact
Type 5- normally used for powder -spring feeder
| Model | ZJF100 | ZJF300 | ZJF700 |
| Registered transfer capacity(kg/h) | 100 | 300 | 700 |
| Hopper volume(kg) | 100 | 120 | 150 |
| Spring diameter(mm) | φ30 | φ36 | φ59 |
| Max. transfer capacity(kg/h) | 200 | 450 | 1000 |
| length transfer pipe and spring(m) | 3 | 3-5 | 3-5 |
| Storage tank volume(kg) | 120 | 150 | 200 |
| motor power(kw) | 1.1 | 1.1 | 2.75 |
| Appearance size(mm) | φ650×980 | φ650×1162 | φ820×1550 |
| 850×620×740 | 905×655×840 | 950×950×960 | |
| Weight(kg) | 120 | 150 | 250 |
package
