screw loader
Main technical parameter:
Item |
DTC-600 |
DTC-1000 |
DTC-2000 |
DTC-3000 |
Motor power(kw) |
1.5 |
1.5 |
2.2 |
2.2 |
Pushing motor power(kw) |
0.55 |
0.75 |
0.75 |
0.75 |
Loading pipe dia(mm) |
102 |
102 |
102 |
102 |
Capacity(kg/h) |
600 |
1000 |
2000 |
3000 |
Silo capacity(kg) |
80 |
150 |
200 |
250 |
Dimension of silo(cm) |
65*65*80 |
100*75*80 |
120*80*80 |
160*80*80 |
Weight(kg) |
80 |
150 |
200 |
300 |

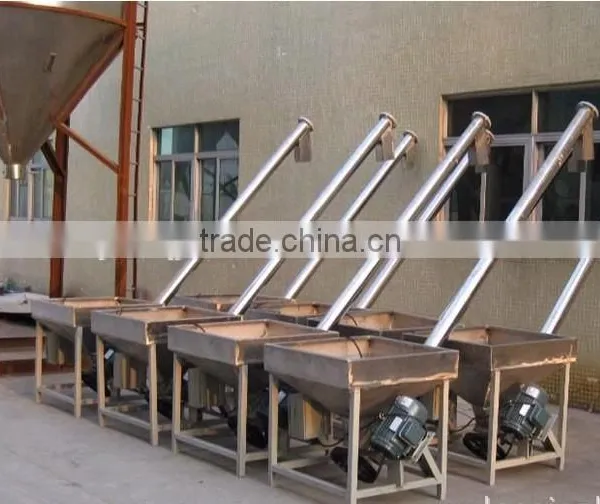

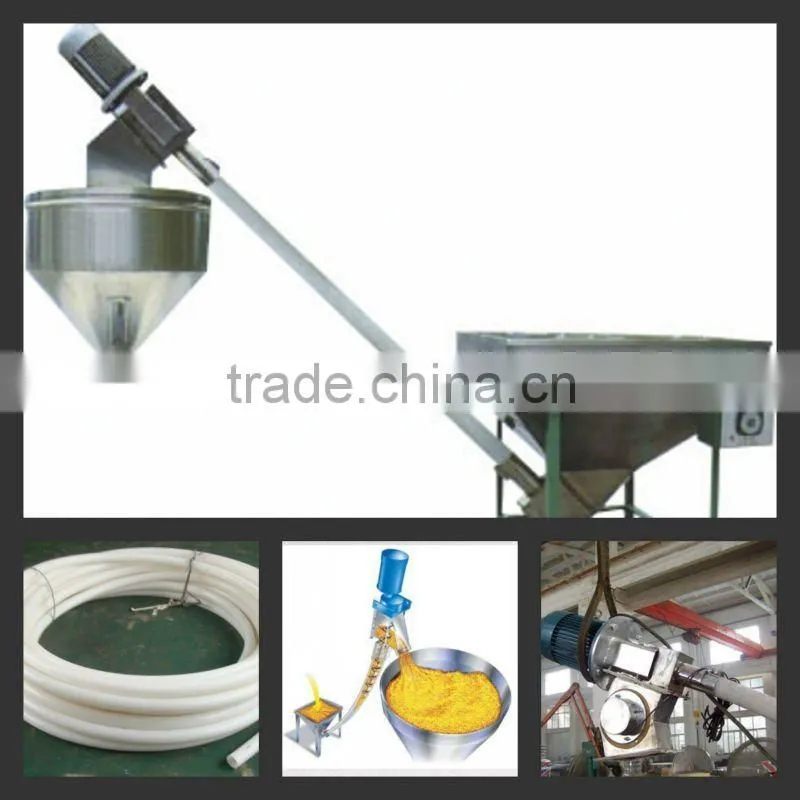

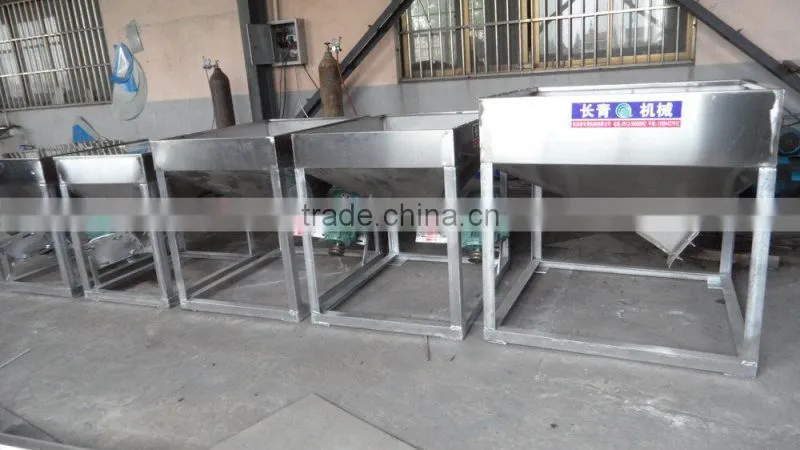

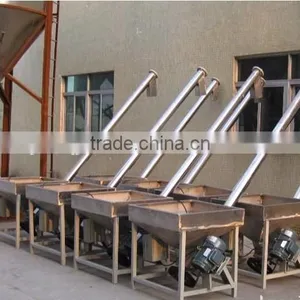

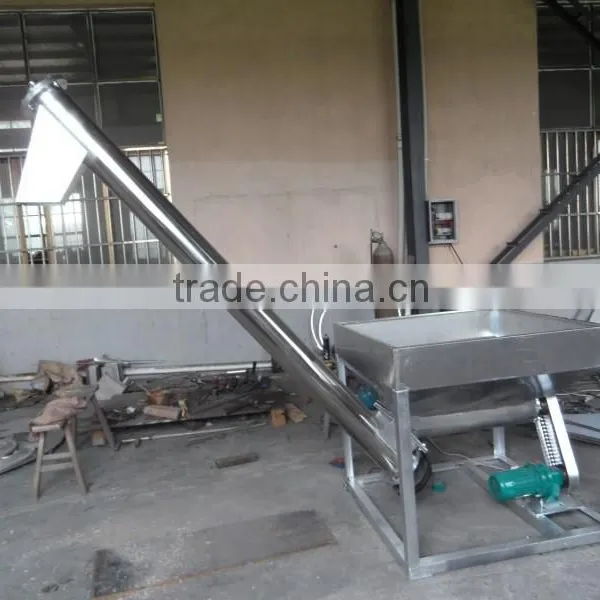

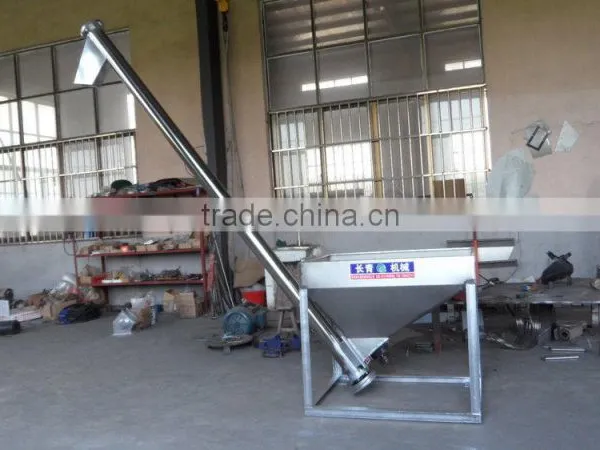

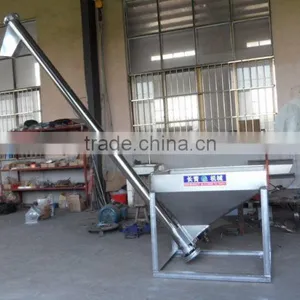

Flexible Screw Conveyor The equipment adopts the principle of screw conveyor, using steel wire spring rotation convey different kinds of powders, granular materials transport from the warehouse to a high level positions, and then turn on the upper r storage bin flashborar, smoothly feed the materials down to rotary vibration sieve, or other ancillary equipments. This process keep reciprocating cycle, thus it can achieve the feeding from low to high automation.
Item |
unit |
ZJF300 |
ZJF700 |
Rated delivery capacity |
Kg/hr |
300 |
700 |
Max. delivery capacity |
Kg/hr |
450 |
1000 |
Rated rotary speed |
r/min |
1450 |
1450 |
Spring diameter |
mm |
36×6 |
50×10×4 |
Conveying distance |
m |
3 |
3,5,8,10 |
Volume of upper bin |
L |
150 |
150 |
Volume of nether bin |
L |
200 |
200 |
Power of motor |
kw |
1.1 |
1.5 |
Power supply | |||
