DLC322 crane scale, tension measuring load cell
|
Model: DLC322 Category: Tension load cell Range: 2t,3t,5t,10t,15t,20t,30t Dimension: 154*50*15/241*85*25/351*118*40mm Material: Alloy steel,stainless steel Application: crane scale,tension measuring equipment Characteristic: 30t hanging scale load cell,overload limiter load cell | |||||||||||||||
|

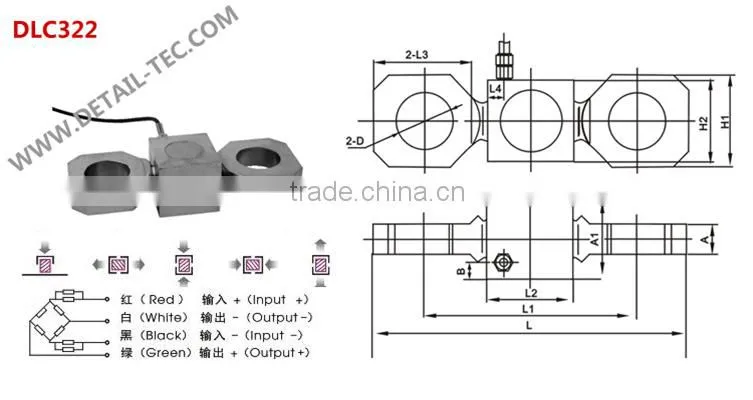

REF PIC | |||||||||||||||
other dimension | |||||||||||||||
LOAD |
L |
L1 |
L2 |
L3 |
L4 |
H1 |
H2 |
A |
A1 |
B |
D |
Axle No. |
|||
2,3 |
154 |
104 |
42 |
48 |
8 |
50 |
40 |
15 |
40 |
8.5 |
D32 |
U17 |
|||
5 |
211 |
141 |
63 |
62 |
16.8 |
68 |
58 |
20 |
55 |
8.5 |
D35 |
Ge20 |
|||
10 |
241 |
161 |
64 |
78 |
17.3 |
85 |
68 |
25 |
62 |
8.75 |
D47 |
Ge30 |
|||
15,20 |
310 |
202 |
80 |
102 |
20 |
108 |
80 |
35 |
70 |
10 |
D55 |
Ge35 |
|||
30 |
351 |
227 |
85 |
118 |
23 |
118 |
85 |
40 |
75 |
10 |
D62 |
Ge40 |
|||
Specification | |||||||||||||||
comprehensive error: |
0.05%FS |
output resistance: |
352±5Ω |
||||||||||||
Rated output: |
1.8±0.005mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||||||
Non-linearity: |
0.05%FS |
Excitation voltage: |
9~12VDC |
||||||||||||
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40℃ |
||||||||||||
Repeatability: |
0.03%FS |
use temperature: |
-20~+55℃ |
||||||||||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
||||||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
||||||||||||
Input resistance: |
380±10Ω |
defend grade: |
IP66 & IP68 |
||||||||||||
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-20 days) according to your Qty
4.Customized size and spec/OEM available
APPLICATION:
