DLC308 hopper scale load cell
|
Model: DLC308 Category: Tension load cell Range: 12t, 20t Dimension: D178/D150mm Material: Alloy steel,stainless steel Application: hanging scales,hopper scales, belt scale Characteristic: hanging scale load cell,hopper scale load cell, belt scale load cell
| ||||||||||
|

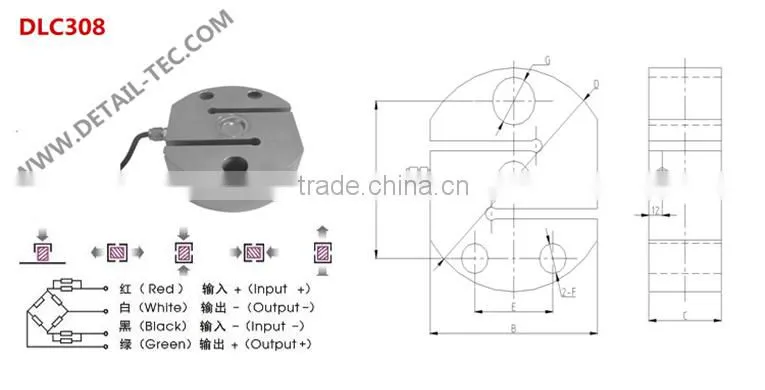

REF PIC | ||||||||||
Dimension | ||||||||||
LOAD |
A |
B |
C |
D |
E |
F |
G |
|||
12T |
110 |
130 |
60 |
ø150 |
55 |
ø 16.2 |
ø 22.4 |
|||
20T |
125 |
150 |
65 |
ø 178 |
70 |
ø 24 |
ø 38.1 |
|||
Specification | ||||||||||
comprehensive error: |
0.03%FS |
output resistance: |
350±5Ω |
|||||||
Rated output: |
2±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
|||||||
Non-linearity: |
0.03%FS |
Excitation voltage: |
9~12VDC |
|||||||
Hysteresis: |
0.03%FS |
compensated temp: |
-10~+40ºC |
|||||||
Repeatability: |
0.02%FS |
use temperature: |
-20~+65ºC |
|||||||
Creep: |
0.02%FS/10MIN |
temp effect on zero: |
0.03%FS/10ºC |
|||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
|||||||
Input resistance: |
350±5Ω |
defend grade: |
IP66 |
|||||||
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-20 days) according to your Qty
4.Customized size and spec/OEM available
APPLICATION:
