DLC307 crane scale load cell

Model: DLC307

Category: Tension load cell

Range: 15,20,30T

Dimension: 243*124*70mm / 243*124*80mm

Material: Alloy steel,stainless steel

Application: crane scale,tension and compression measure, truck scale, axle scale

Characteristic: crane scales sensor, compression and tension sensor

REF PIC

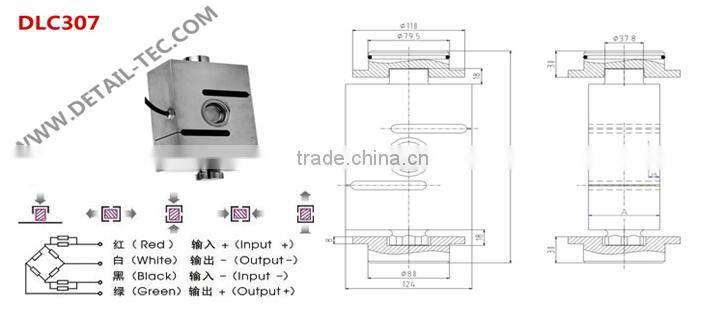

Dimension

LOAD

A

15T, 20T,

70

30T

80

Specification

comprehensive error:

0.03%FS

output resistance:

350±5Ω

Rated output:

2±0.002mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.03%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.03%FS

compensated temp:

-10~+40ºC

Repeatability:

0.02%FS

use temperature:

-20~+65ºC

Creep:

0.02%FS/10MIN

temp effect on zero:

0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

Input resistance:

350±5Ω

defend grade:

IP66
