DLC321 crane scale load cell
|

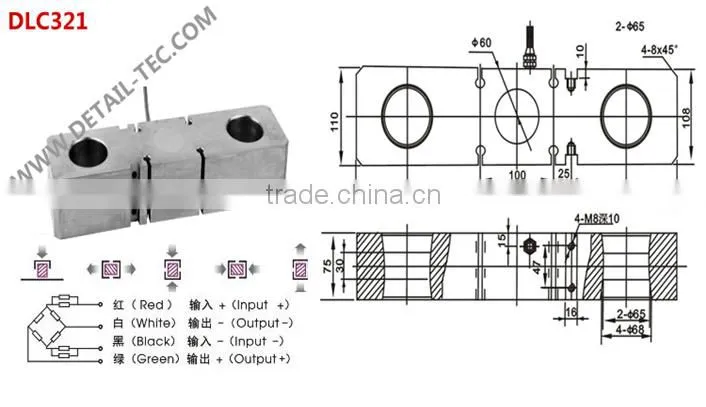

Model: DLC321 Category: Tension load cell Range: 40t Dimension: 440*108*75mm Material: Alloy steel,stainless steel Application: tension measurement, 40t crane scale load cell Characteristic: 40t crane scale load cell, tension load cell | |||
|
REF PIC | |||
Specification | |||
comprehensive error: |
0.05%FS |
output resistance: |
352±5Ω |
Rated output: |
2.0±0.005mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
Non-linearity: |
0.05%FS |
Excitation voltage: |
9~12VDC |
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40℃ |
Repeatability: |
0.03%FS |
use temperature: |
-20~+55℃ |
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
Input resistance: |
380±10Ω |
defend grade: |
IP66 & IP68 |
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-20 days) according to your Qty
4.Customized size and spec/OEM available

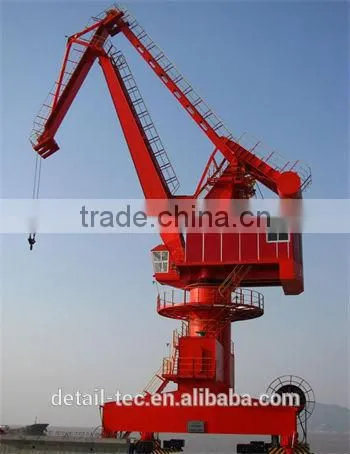

APPLICATION:
