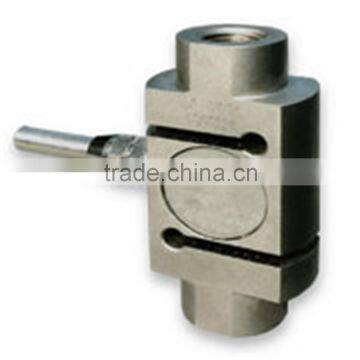

DLC306 hopper scale load cell
|
Model: DLC306 Category: Tension load cell Range: 500kg,750kg,1000kg Dimension: 88*44*26mm Material: Alloy steel,stainless steel Application: hanging scales,hopper scales,tension or compression test Characteristic: hanging scales sensor, compression and tension sensor | |||||||
|

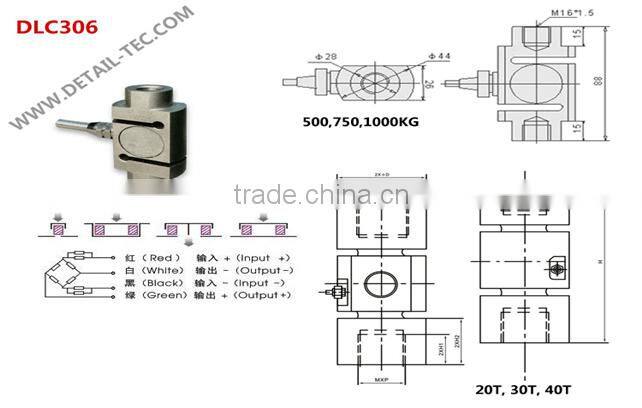

REF PIC | |||||||
LOAD |
H |
H1 |
H2 |
D |
M*P |
||
20,30T |
185 |
38 |
57 |
78 |
M42*3 |
||
40T |
225 |
50 |
77 |
105 |
M56*3 |
||
Specification | |||||||
comprehensive error: |
0.03%FS |
output resistance: |
350±5Ω |
||||
Rated output: |
2±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||
Non-linearity: |
0.03%FS |
Excitation voltage: |
9~12VDC |
||||
Hysteresis: |
0.03%FS |
compensated temp: |
-10~+40ºC |
||||
Repeatability: |
0.02%FS |
use temperature: |
-20~+65ºC |
||||
Creep: |
0.02%FS/10MIN |
temp effect on zero: |
0.03%FS/10ºC |
||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
||||
Input resistance: |
350±5Ω |
defend grade: |
IP66 |
||||
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

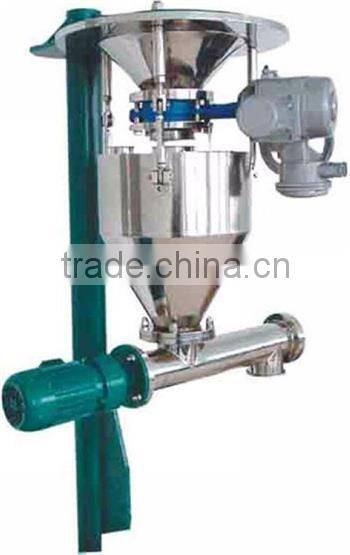

APPLICATION:
