DLC314 crane scale load cell
|
Model: DLC314 Category: Tension load cell Range: 5t,10t Dimension: 255*130*30/295*130*40mm Material: Alloy steel,stainless steel Application: crane scale,hopper scale,overload limiter Characteristic: crane scale load cell,overload limiter load cell | |||||||||||
|

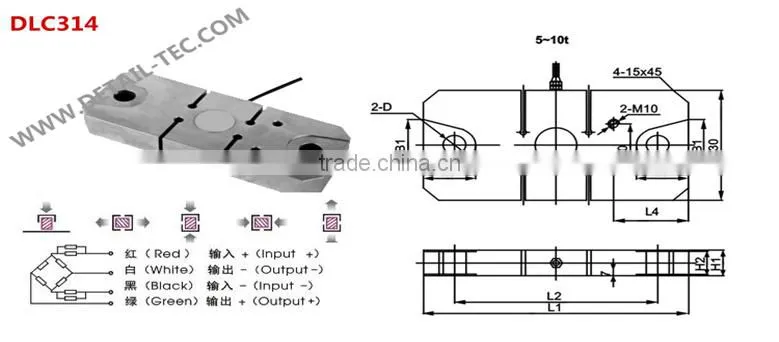

REF PIC | |||||||||||
other dimension | |||||||||||
Load(T) |
L1 |
L2 |
L3 |
H1 |
H2 |
B1 |
D |
L4 |
|||
5 |
255 |
201 |
50 |
30 |
28 |
60 |
D22 |
72 |
|||
10 |
295 |
215 |
70 |
40 |
38 |
84 |
28 |
92 |
|||
Specification | |||||||||||
comprehensive error: |
0.03%FS |
output resistance: |
352±3Ω |
||||||||
Rated output: |
2±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||
Non-linearity: |
0.03%FS |
Excitation voltage: |
9~12VDC |
||||||||
Hysteresis: |
0.03%FS |
compensated temp: |
-10~+40ºC |
||||||||
Repeatability: |
0.02%FS |
use temperature: |
-20~+65ºC |
||||||||
Creep: |
0.02%FS/10MIN |
temp effect on zero: |
0.03%FS/10ºC |
||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
||||||||
Input resistance: |
380±3Ω |
defend grade: |
IP68 |
||||||||
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-20 days) according to your Qty
4.Customized size and spec/OEM available
APPLICATION:
Welcome to the workshop
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply to you within 24 hours.
