DLC205 mini compression and tention test load cell
|
Model: DLC205 Category: button load cell Range: 1kg,2kg,3kg,5kg,10kg,20kg,50kg,100kg,200kg Dimension: 29*38/33*46mm Material: Alloy steel,stainless steel Application: miniature compression and tension test,miniature crane scale Characteristic: miniature compression and tension load cell sensor | |||||
|
REF PIC | |||||
other dimension | |||||
kg |
1~5 |
10~200 |
|||
A |
29 |
33 |
|||
B |
16 |
22 |
|||
C |
38 |
46 |
|||
M |
M4*0.7 |
M6*1 |
|||
Specification | |||||
comprehensive error: |
0.2%FS |
output resistance: |
350±10Ω, 700±5Ω |
||
Rated output: |
1±0.15mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||
Non-linearity: |
0.2%FS |
Excitation voltage: |
9~12VDC |
||
Hysteresis: |
0.2%FS |
compensated temp: |
-10~+40ºC |
||
Repeatability: |
0.1%FS |
use temperature: |
-20~+55ºC |
||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10ºC |
||
Zero balance: |
±5%FS |
Temp effect on span: |
0.05%FS/10ºC |
||
Input resistance: |
350±10Ω, 700±5Ω |
defend grade: |
IP66 |
||
Why you choose our company?
* We have competitive price and good quality in load cell, Pressure Transmitter, Pressure Transducer,
Temperature Sensor, Pressure Control Instrument, Temperature Control Instrument and Weight Control
Instrument.
* We believe that the price of our products are reasonable,we guarantee the quality and ensure After-sale
service of our products .
*If you are interested in any products,please contact us freely,we hope to cooperate with you,we will try
our best to provide our perfect service to you.

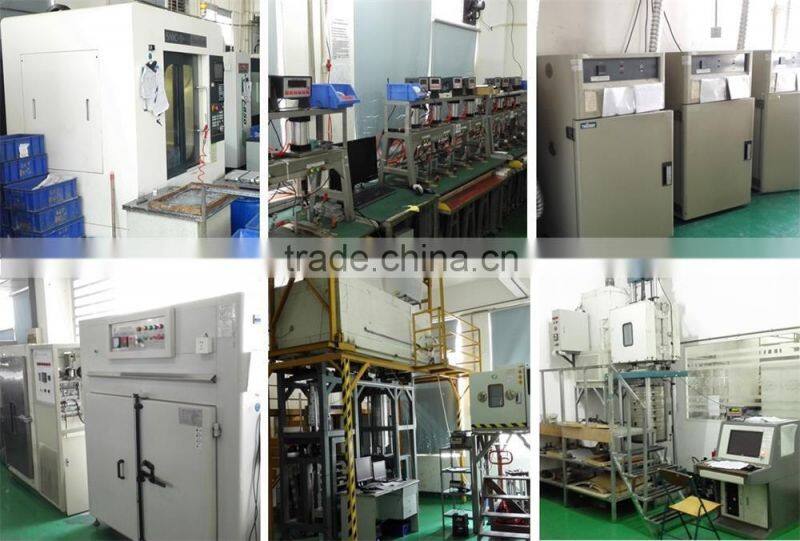

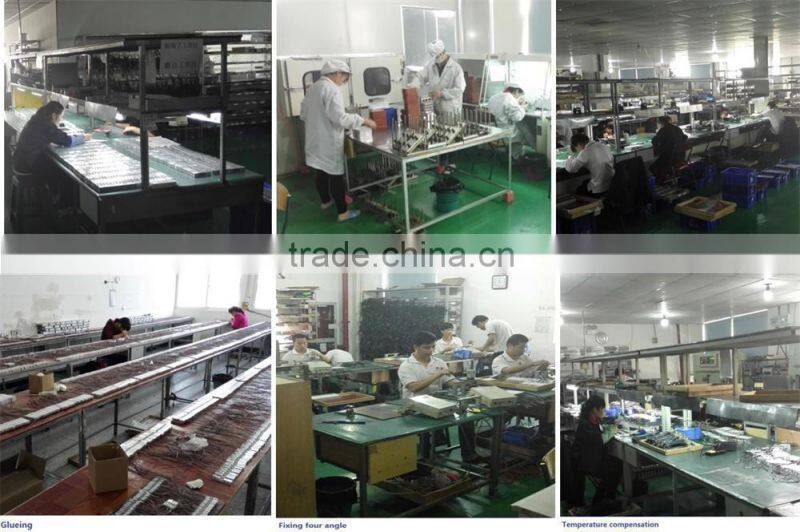

Welcome to the workshop
Certifications
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply to you within 24 hours.
