DLC206 feed scale,vibratory feeding scale load cell
|
Model: DLC206 Category: button load cell Range: 0.05t,1t,2t,5t,10t,20t Dimension: 50*72/100*141/135*232mm Material: Alloy steel,stainless steel Application: Feed scale,vibratory feeding scale Characteristic: force measure load cell, vibratory feeding scale load cell | |||||||||||
|

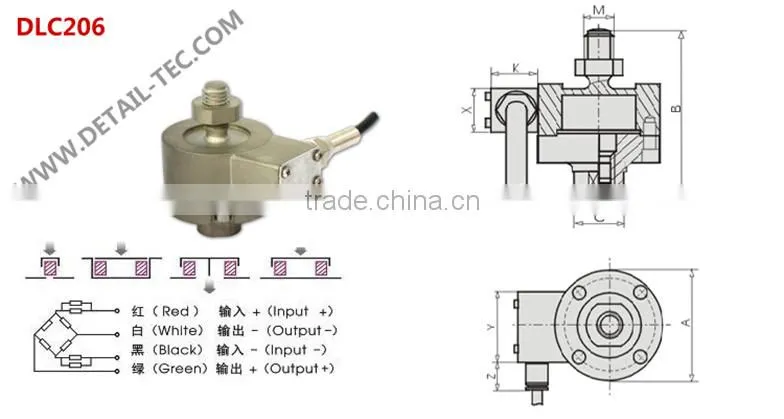

REF PIC
| |||||||||||
other dimension | |||||||||||
Load(t) |
ΦA |
B |
ΦC |
K |
M |
X |
Y |
Z |
|||
0.05~1 |
50 |
72 |
21 |
22 |
M12 |
20 |
32 |
25 |
|||
2 |
90 |
112 |
33 |
25 |
M20x1.5 |
26 |
36 |
34 |
|||
5 |
100 |
141 |
40 |
25 |
M24x2 |
26 |
36 |
34 |
|||
10 |
135 |
197 |
68 |
26 |
M39x2 |
26 |
36 |
34 |
|||
20 |
135 |
232 |
82 |
26.5 |
M48x2 |
26 |
36 |
34 |
|||
Specification | |||||||||||
comprehensive error: |
0.2%FS |
output resistance: |
700±10Ω |
||||||||
Rated output: |
2±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||
Non-linearity: |
0.2%FS |
Excitation voltage: |
9~12VDC |
||||||||
Hysteresis: |
0.1%FS |
compensated temp: |
-10~+40ºC |
||||||||
Repeatability: |
0.05%FS |
use temperature: |
-20~+55ºC |
||||||||
Creep: |
0.02%FS/10MIN |
temp effect on zero: |
0.03%FS/10ºC |
||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
||||||||
Input resistance: |
700±10Ω |
defend grade: |
IP68 |
||||||||
APPLICATION:
Why you choose our company?
* We have competitive price and good quality in load cell, Pressure Transmitter, Pressure Transducer,
Temperature Sensor, Pressure Control Instrument, Temperature Control Instrument and Weight Control
Instrument.
* We believe that the price of our products are reasonable,we guarantee the quality and ensure After-sale
service of our products .
*If you are interested in any products,please contact us freely,we hope to cooperate with you,we will try
our best to provide our perfect service to you.
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
