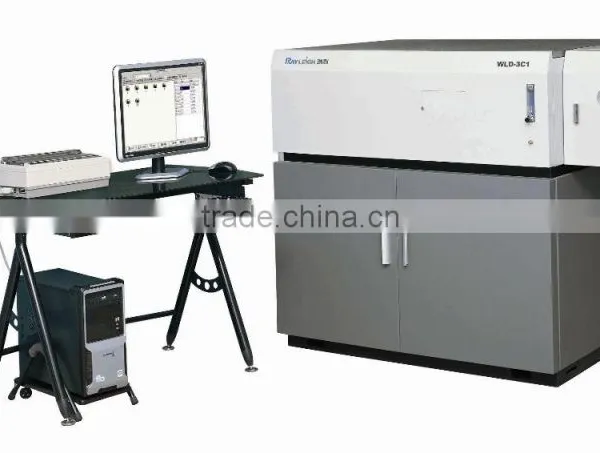

OES-3C1 Optical Emission Spectrometer
Description:
OES-C, the latest model of optical emission spectrometer, based on more than 30 years manufacturedexperience, customer’s the practices and advancing technology.
it is suitable for quick quantitative metals analysis from the complex matrix samples(for example: Al, Al alloy, Mg alloy, Cu). OES -3C1 has been improved enhancing the ease and accuracy of analysis for all metal products(for example: High alloy steel,Cast iron, Ni, Al, Cu, Cu alloy and Mg alloy).
This kind of spectrometer not only has the same advantages of high accuracy and stability as the former products (Type 750), but also has better analysis effect for cast Al alloy.
System Feature
- Multiple channel detectors, Ultra-fast analysis, analysis in less than 30 seconds
- Rational structure, high mechanical stability, stability optical system, the drift of optics is less than 10μm(24H).
- Sealed nitrogen-inflated optical system can be adopted to analyse the wave length of UV, which is less than 230nm
- High reproducibility and stability source, and,the exciting frequency is controlled by program.
- The reliabilty measurement system,decreases the fault rate effectively
- Integrated windows control software
- The measurement channel could be adjusted, according to demand of customers.
Specifications
1.the exciting source
exciting frequency is controled by program
power: AC 220V±10% 50Hz
output: 400VA
frequency: 100Hz-800Hz
exciting:pulse amplitude 10kV
2.optical system
wave length range:220-550nm(OES-1C1)
175-450nm(OES-3C1)
Grating: 2400L/mm concave grating in radius 750mm
Reciprocal linear dispersion:0.55nm/mm
Entrance slit width:20μm
Exit slit width:50/75μm
Maximum number of channel:36
Constant temperature:30±1℃
3. Measurement and control system
Measuring mode: sectional integration
Measuring reproducibility:RSD≤0.2%
PMT high voltage power supply:-1000V
Stability: better than 0.5% (8h)
4. Data processing system
Hardware: Brand computer
extended CAN interface
24 pin 80 column English printer
5. Software: under Windows Operating system
The software provides virtually unlimited analytical capacity and flexibility and will therefore meet your needs throughout your instrument's lifetime
6. Dimensions:
Main unit:1500(L)×1000(D)×1200(W)mm
Wight:about 480kg
7. Laboratory requirement
Environment:temperature:20±5℃;relative humidity:≤70%
Purity of Argon:99.999%
Power supply:exciting source:220V±10% 50Hz 1kVA
Main unit:380V±10% 50Hz 3kVa 3-phase,4-line
Area required:15-20 sqm
Applications
The optical emission spectrometer can be widely used in the fields of casting,metallurgy,machine manufacturing,shipping building,automobile manufacturing,and chemistry industry etc. It is a necessary instrument for on the spot sample analysis in metallurgy plants and for metal material inspection in quality inspection labs etc.
Analytical range for major elements
(refer to the not-mentioned elements,please contact us)
Elements |
Content% |
Elements |
Content% |
Elements |
Content% |
Fe |
Basis |
Si |
0.001-25.00 |
Zr |
0.001-3.00 |
P |
0.001-0.50 |
Mn |
0.002-20.00 |
Nb |
0.001-3.00 |
S |
0.001-0.50 |
Ti |
0.001-3.00 |
Bi |
0.001-0.50 |
B |
0.001-0.50 |
Co |
0.01-15.00 |
Sn |
0.001-10.00 |
C |
0.001-4.00 |
Al |
Basis |
Cr |
0.005-30.00 |
Mo |
0.01-5.00 |
Mg |
Basis |
Ni |
0.005-30.00 |
W |
0.01-20.00 |
Pb |
0.001-10.0 |
Cu |
Basis |
V |
0.002-3.00 |
Cd |
0.001-0.50 |
Sr |
0.001-0.50 |
Nd |
0.001-0.50 |
Zn |
0.01-40.00 |
Sb |
0.001-0.50 |
As |
0.001-0.30 |
La |
0.001-0.50 |
Ce |
0.001-0.50 |
Be |
0.001-0.50 |
Ga |
0.001-0.50 |
Pr |
0.001-0.50 |
Sm |
0.001-0.50 |
|
|
|
|
