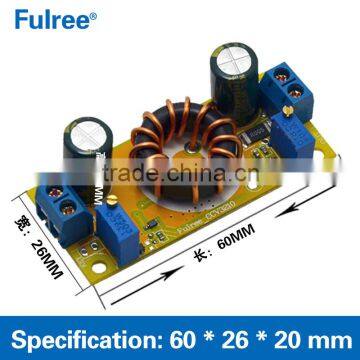

DC-DC 10A Step-down Adjustable Converter Constant Voltage Constant Current Module, LED Driver Module
US$ 6.5 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
fulree
Model Number:
ccv
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost ConverterUS$ 8 - 12MOQ: 1 Piece -
Waterproof 12v to 48v5a240w Boost Converter, 12v to 48v Dc-dc Converter,step up ModuleUS$ 12 - 18MOQ: 10 Pieces
-
Waterproof 12v to 19v3a57w Dc-dc Power Step up Converter, 12v to 19v Boost Module, Car Power Supply for NotebookUS$ 9 - 15MOQ: 1 Piece
-
Waterproof 12v to 24v3a72w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Power InverterUS$ 10 - 15MOQ: 10 Pieces
-
DC-DC Step up Converter 5-11V to 12V10A120W Boost ModuleUS$ 16.00 - 21.00MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
fulree
Model Number
ccv
Output Power
1 - 50W
Output Type
Single
Size
60*26*20mm
Weight
28g
Input Voltage
4-35v
Output Voltage
1.2-32v adjustable
Type
DC/DC Converters
Output Frequency
150HZ
Output Current
10A Max
DC-DC 10A Step-down adjustable converter Constant voltage constant current module Solar power lithium battery LED driver module
| Model | CCV3210 |
| Input voltage range | 4-35V(no more than 35V, or the module will ba damaged) |
| Efficiency | 93% (half load), 91% (full load) |
| Output constant voltage | 1.5-32V adjustable(minimum pressure difference:2.5V) |
| Output constant current | 0.4-10A Adjustable(long time work below 6A under natural cooling,or pls enhance heat dissipation) |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Full load temperature rise: | 50°c |
| Protection | Over-temperature, Auto-recovery when device is back to normal operating |
| Input Reverse Polarity Protection |
NONE( (Please Series diode at the input + if need.) |
| Anti irrigation protection | NONE(please series diode at the output + if need) |
| NW | 50G |
| Product size | 60*26*20mm |
Application |
1, DIY a power supply, with constant current function, is not afraid of the use of the process will be short circuit, can protect the load.
2, power supply for your electronic equipment.
3, for a variety of battery charging, with different voltage and capacity of the battery to set the charging voltage and charging current.
4, using solar panels to charge for a variety of batteries, with constant current function, can prevent the battery is charged, the effective protection of the battery.
5, driven by high power LED, which can be combined with free series parallel.
6, as a vehicle power supply, for your mobile phone, laptop or a variety of digital products.
|
|
Attention: >Pls install according to the the marking strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >If you use it for charging, pls do remember to series the right diode on the output + to prevent anti irrigation. | |
