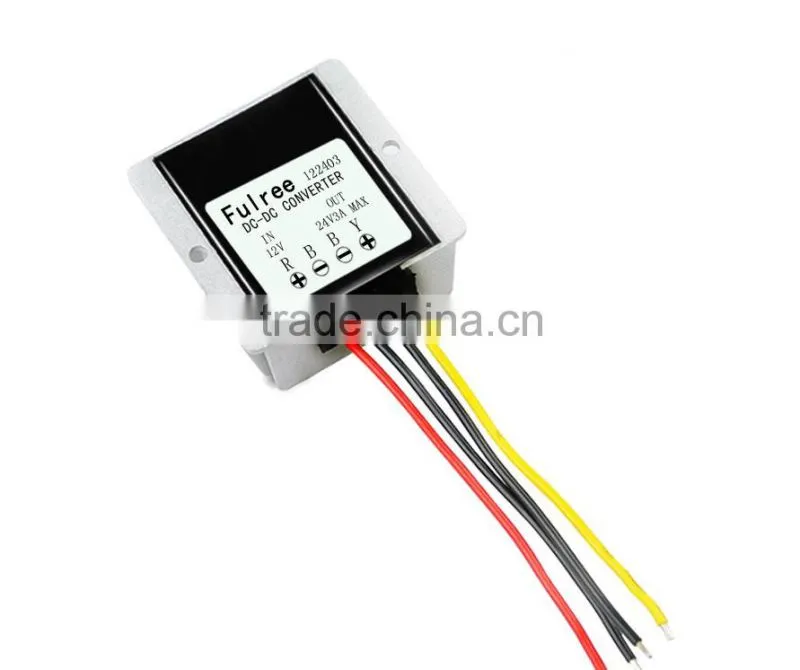

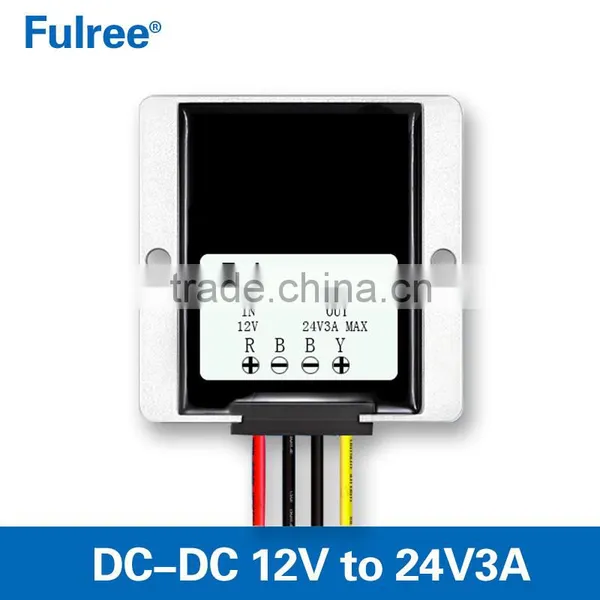

waterproof 12v to 24v3a72w dc-dc power step up converter, 12v to 24v boost module, power inverter
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 10-20Vdc
4. Industry grade DC12V to DC24V step-up converter, high efficiency up to 93%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
7. Protections: Over-current, Over-voltage, Over-temperature, Over-load and so on, Auto-recovery when device is back to normal operating,waterproof IP68 design.
8. Non-Isolated Module
9. 1 year warranty, lifetime up to 100,000 hours.
Model |
122403L |
Input rated voltage |
12V DC |
Input voltage range |
10-20V DC |
Efficiency |
93% (half load), 91% (full load) |
Output voltage |
24V DC |
Output current |
3 Amps |
Output rated power |
72 Watts |
Output peak power |
120 Watts |
Voltage regulation |
< 1% |
Load regulation |
< 2% |
Working temperature |
-30°c ~ +80°c |
Waterproof rating |
IP68 |
Over-voltage protection |
YES |
Over-current protection |
YES |
Over-temperature protection |
YES |
Short-circuit protection |
NO |
Machine size |
74*74*32mm |
Full load temperature rise: |
50°c |
N. Weight |
280 |
G. Weight |
285 |
Cooling way |
Free air convection |
Other output current option |
2A, 3A, 5A, 10A, 12A, 15A(pls contact with our customer service if need) |
