New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost Converter

New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost Converter thumbnail-1
New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost Converter thumbnail-2
New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost Converter thumbnail-3

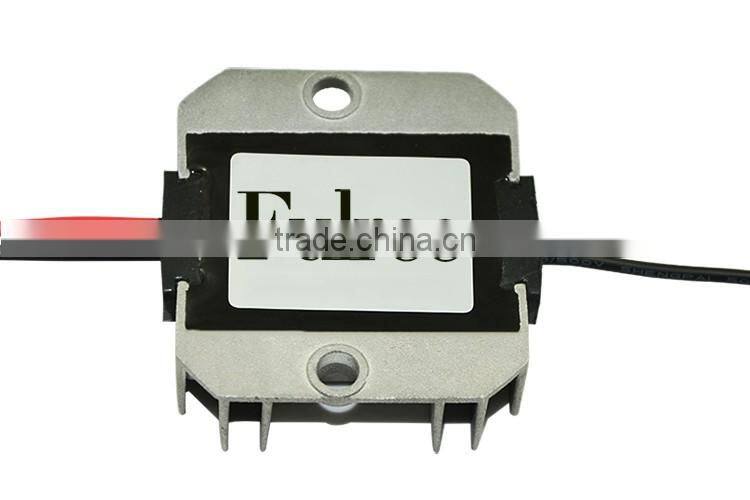

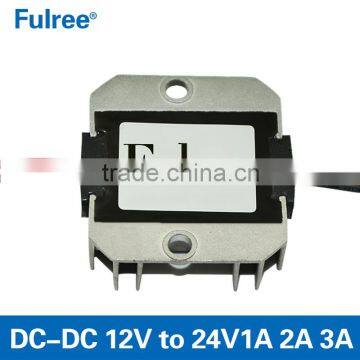

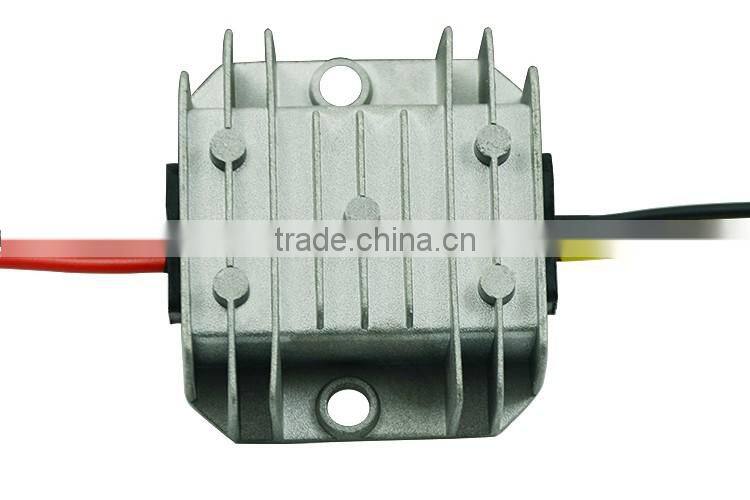

New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost Converter photo-1
New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost Converter photo-2
New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost Converter photo-3
US$ 8 - 12 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
fulree
Model Number:
122402ML
Contact Supplier Request Quote Chat Now
Shenzhen Fulree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HONGKONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name fulree
Model Number 122402ML
Output Power 1 - 50W
Output Type Single
Size 74*74*32mm
Weight 280G
Input Voltage 10-20V
Output Voltage 24V
Type DC/DC Converters
Output Frequency 0-400HZ
Output Current 2A Max

new 12v to 24v2a48w dc-dc power step up converter, 12v to 24v boost module, dc-dc boost converter

Model 122402L
Input rated voltage 12V DC
Input voltage range 10-20V DC
Efficiency 93% (half load), 91% (full load)
Output voltage 24V
Output current 2A MAX
Output rated power
 48W
Output peak power
 72W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)
Module Properties

non-isolated buck module(buck)
Rectification synchronous rectification
Waterproof rating
 IP68
Full load temperature rise: 50°c
Protection Over-current, Over-voltage, Over-temperature,

Auto-recovery when device is back to normal operating,

waterproof IP68 design, anti-shock protection
Short-circuit protection NO, if need pls add fuse on the positive pole on input
Input Reverse Polarity Protection None (Please Series diode at the input port.)
NW 100G

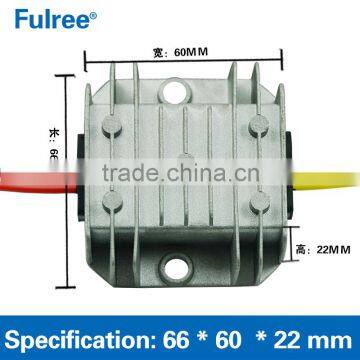

Product size  66*60*22MM

Other output current

option for12V to 24V

 1A, 2A, 3A, 5A, 8A ,10A, 12A, 15A(pls contact with our sales manager if need)





Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.





 new 12v to 24v2a48w dc-dc power step up converter, 12v to 24v boost module, dc-dc boost converternew 12v to 24v2a48w dc-dc power step up converter, 12v to 24v boost module, dc-dc boost converter

new 12v to 24v2a48w dc-dc power step up converter, 12v to 24v boost module, dc-dc boost converter
