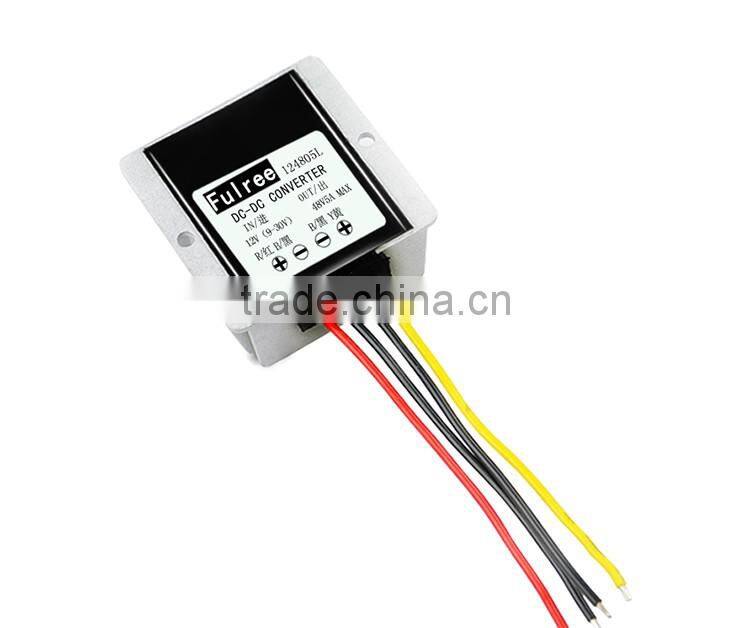

Waterproof 12v to 48v5a240w Boost Converter, 12v to 48v Dc-dc Converter,step up Module

Waterproof 12v to 48v5a240w Boost Converter, 12v to 48v Dc-dc Converter,step up Module thumbnail-1
Waterproof 12v to 48v5a240w Boost Converter, 12v to 48v Dc-dc Converter,step up Module thumbnail-2
Waterproof 12v to 48v5a240w Boost Converter, 12v to 48v Dc-dc Converter,step up Module photo-1
Waterproof 12v to 48v5a240w Boost Converter, 12v to 48v Dc-dc Converter,step up Module photo-2
US$ 12 - 18 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
fulree
Model Number:
122403L
Contact Supplier Request Quote Chat Now
Shenzhen Fulree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name fulree
Model Number 122403L
Output Power 201 - 300W
Output Type Single
Size 74*74*32mm
Weight 280G
Input Voltage 12V24V(10-32V)
Output Voltage 48V
Type DC/DC Converters
Output Frequency 0-400HZ
Output Current 5A Max

waterproof 12v to 48v5a240w boost converter, 12v to 48v dc-dc converter,step up module

Model 124805L
Input rated voltage 12V24V DC
Input voltage range 10-32V DC
Efficiency 93% (half load), 91% (full load)
Output voltage 48V
Output current 5A MAX
Output rated power
 240W
Output peak power
 280W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)
Module Properties

non-isolated buck module(buck)
Rectification synchronous rectification
Waterproof rating
 IP68
Full load temperature rise: 50°c
Protection Over-current, Over-voltage, Over-temperature,

Auto-recovery when device is back to normal operating,

waterproof IP68 design, anti-shock protection
Short-circuit protection NO, if need pls add fuse on the positive pole on input
Input Reverse Polarity Protection None (Please Series diode at the input port.)
NW 280G
Product size  74*74*32MM

Other output current

option for12V to 48V

 2A, 5A, 6A(pls contact with our sales manager if need)





Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.



waterproof 12v to 48v5a240w boost converter, 12v to 48v dc-dc converter,step up modulewaterproof 12v to 48v5a240w boost converter, 12v to 48v dc-dc converter,step up module

waterproof 12v to 48v5a240w boost converter, 12v to 48v dc-dc converter,step up module
