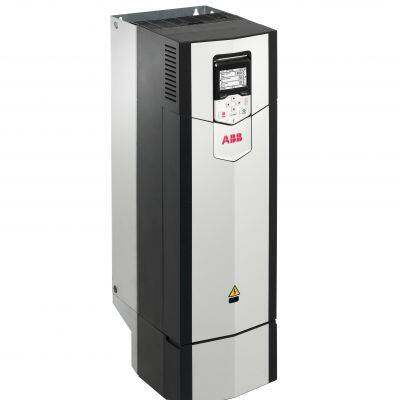

ABB ACS880-01-072A-3+E200 37kW 72A 3-Phase 400V Low Voltage AC Industrial Wall-Mounted VFD Inverter

ABB ACS880-01-072A-3+E200 37kW 72A 3-Phase 400V Low Voltage AC Industrial Wall-Mounted VFD Inverter thumbnail-1
ABB ACS880-01-072A-3+E200 37kW 72A 3-Phase 400V Low Voltage AC Industrial Wall-Mounted VFD Inverter photo-1

Product Spotlights

ABB ACS880-01-072A-3+E200 37kW 72A industrial wall-mounted VFD features ABB's industry-leading DTC direct torque control for ultra-precise motor speed & torque regulation. Delivers high efficiency, reliable performance, and built-in energy optimization for significant power savings.
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2011
Overseas Office:
Yes
Contact Supplier Request Quote Chat Now
Rossonix Co.,limited
Platinum Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

LV AC industrial wall-mounted single drive, IEC: Pn 37 kW, 72 A (ACS880-01-072A-3+E200)

General Information

Global Commercial Alias: ACS880-01-072A-3+E200Product ID: 3ABD00038086-DABB Type Designation: ACS880-01-072A-3+E200Catalog Description: LV AC industrial wall-mounted single drive, IEC: Pn 37 kW, 72 A (ACS880-01-072A-3+E200)Long Description: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.

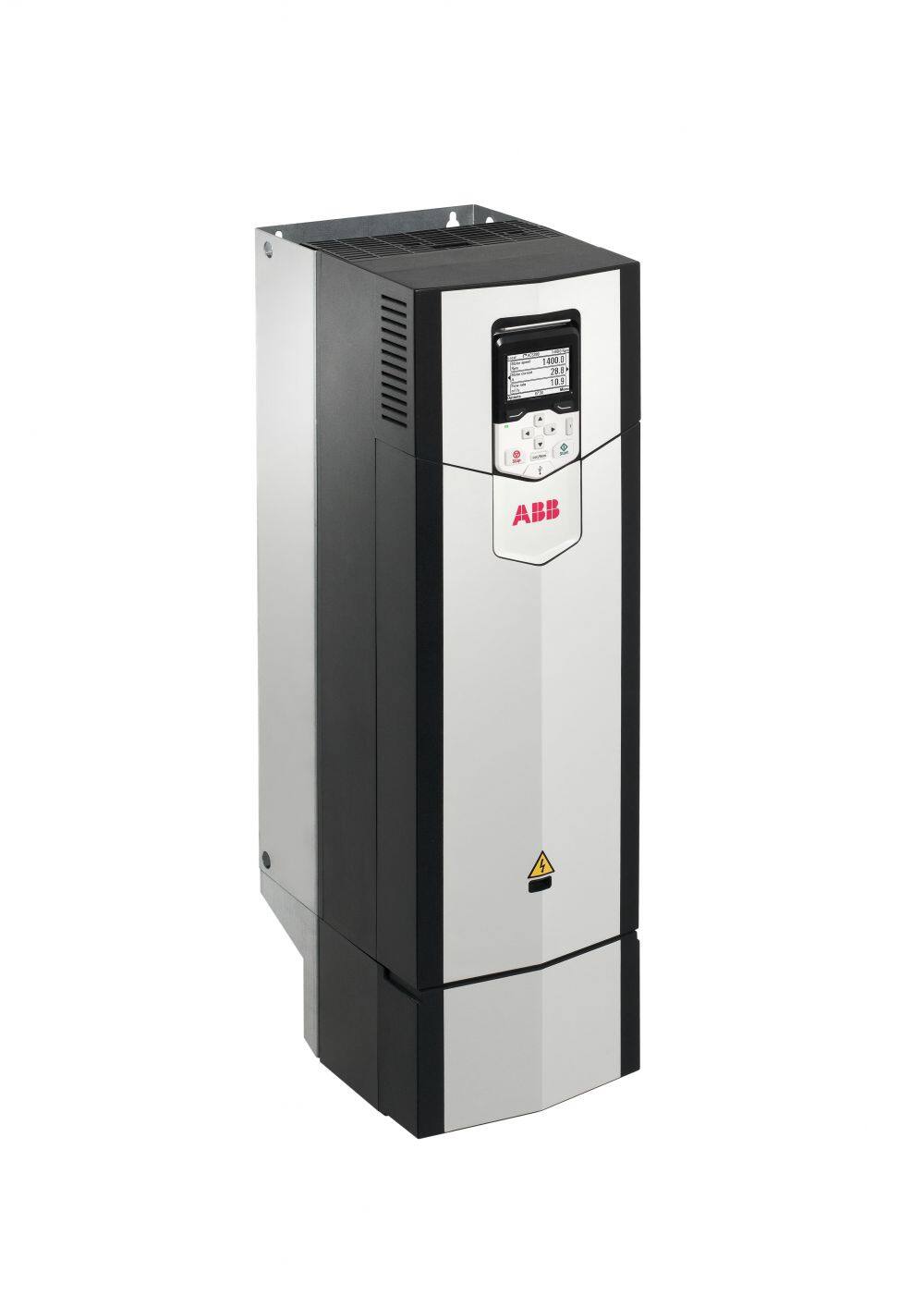

9IBA043432_master

Ordering

Customs Tariff Number: 85044087HS Code: 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static convertersInvoice Description: ACS880-01-072A-3+E200 PN:37kW, IN:72AMade To Order: NoMinimum Order Quantity: 1 pieceOrder Multiple: 1 pieceQuote Only: NoSelling Unit of Measure: piece

Dimensions

Product Net Weight: 23 kgProduct Net Depth / Length: 274 mmProduct Net Height: 730 mmProduct Net Width: 203 mmPackage Level 1 Depth / Length: 830 mmPackage Level 1 Height: 510 mmPackage Level 1 Width: 280 mm

Technical

Number of Phases: 3-phaseDegree of Protection: IP21Enclosure Type NEMA: Type1Frequency (f): 47.5 ... 63 HzFrame Size: R5Input Voltage (Uin): 380 … 415 VMounting Type: Wall-mountedOutput Current, Normal Use (In): 72 AOutput Current, Light-Overload Use (ILD): 68 AOutput Current, Heavy-Duty Use (IHD): 61 AOutput Power, Normal Use (Pn): 37 kWOutput Power, Light-Overload Use (PLD): 37 kWOutput Power, Heavy-Duty Use (PHD): 30 kWEfficiency Level: IE2

Environmental

WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)

External Classifications and Standards

UNSPSC: 39122001


Product Tags: ABB ACS880 , 400V AC Drive / 380-415V Inverter , ACS880-01-072A-3+E200
