Home > Electrical & Electronics > Inverter > Power Inverter > DC-DC Step up Converter 5-11V to 12V10A120W Boost Module

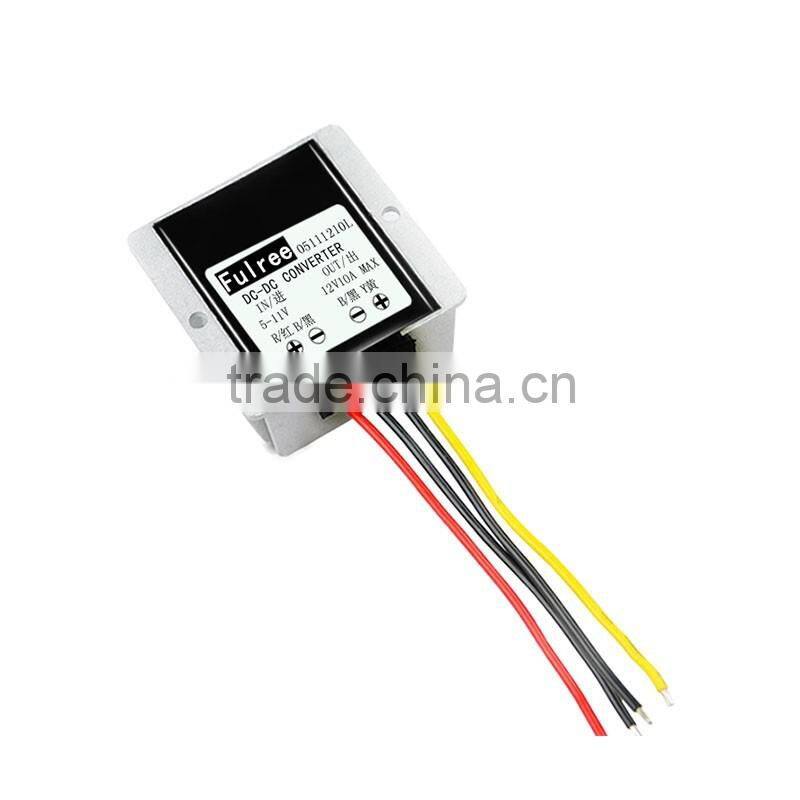

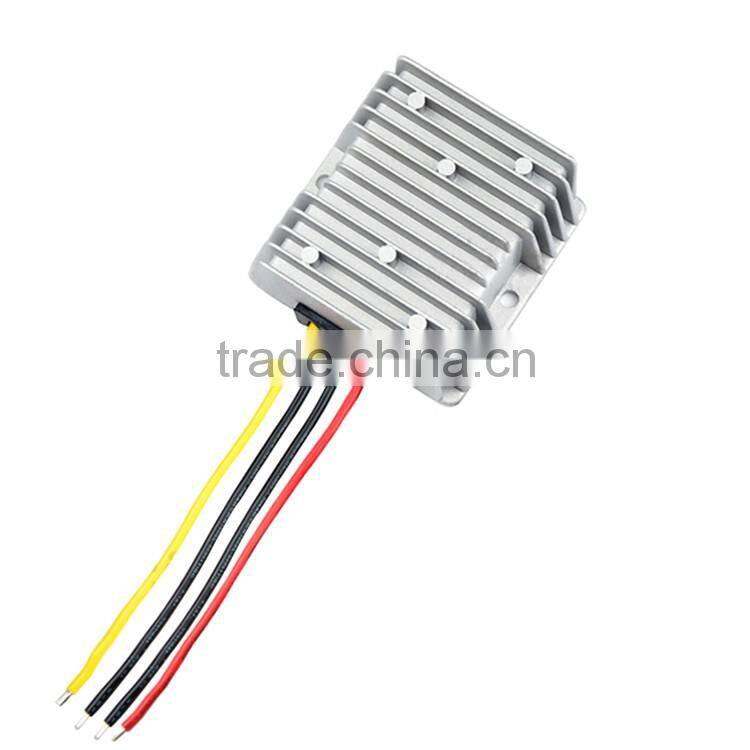

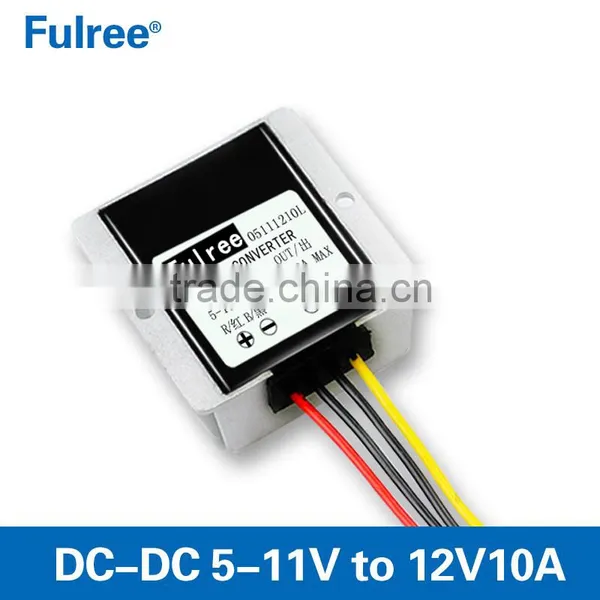

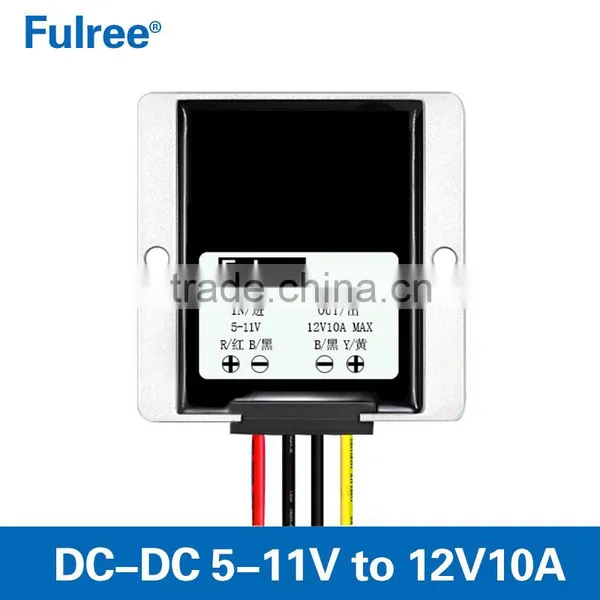

DC-DC Step up Converter 5-11V to 12V10A120W Boost Module
US$ 16.00 - 21.00
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
fulree
Model Number:
05111210L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New 12v to 24v2a48w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Dc-dc Boost ConverterUS$ 8 - 12MOQ: 1 Piece -
Waterproof 12v to 48v5a240w Boost Converter, 12v to 48v Dc-dc Converter,step up ModuleUS$ 12 - 18MOQ: 10 Pieces
-
Waterproof 12v to 19v3a57w Dc-dc Power Step up Converter, 12v to 19v Boost Module, Car Power Supply for NotebookUS$ 9 - 15MOQ: 1 Piece
-
Waterproof 12v to 24v3a72w Dc-dc Power Step up Converter, 12v to 24v Boost Module, Power InverterUS$ 10 - 15MOQ: 10 Pieces
-
Waterproof 12v to 12v10A dc Regulator,10-36v to 12v Dc-dc Converter Module, Stablizer for Solar PowerUS$ 20 - 26MOQ: 1 Piece
Place of Origin
China
Brand Name
fulree
Model Number
05111210L
Output Power
101 - 200W
Output Type
Single
Size
74*74*32mm
Weight
250G
Input Voltage
5-11V
Output Voltage
12V
Type
DC/DC Converters
Output Frequency
0-400HZ
Output Current
10A MAX
DC-DC step up converter 5-11V to 12V10A120W boost module
| Model | 05111210L |
| Input rated voltage | 5V |
| Input voltage range | 5-11V |
| Efficiency | 93% (half load), 91% (full load) |
| Output voltage | 12V |
| Output current | 10A MAX |
| Output rated power |
120W |
| Output peak power |
150W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: | 50°c |
| Protection |
Over-current, Over-temperature Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection |
|
Short-circuit protection |
NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 280G |

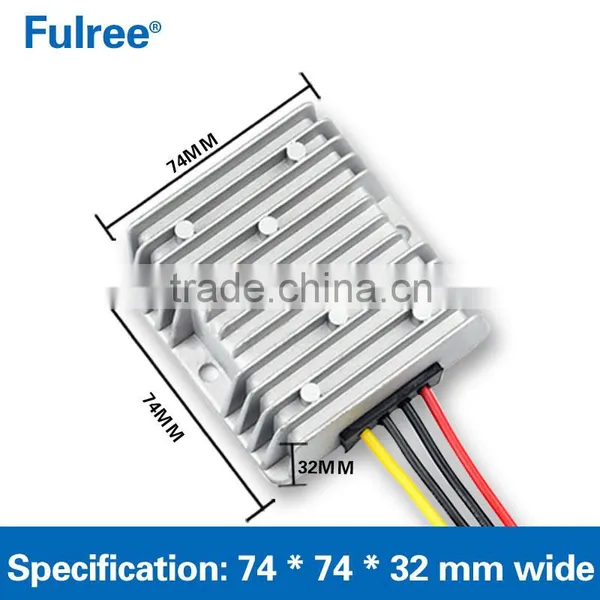

| Product size | 74*74*32MM |
|
Other output current option for 48V to 12V |
2A, 4A, 10A(pls contact with our sales manager if need) |
|
Attention: | |
