Home > Products > Surveying Equipment > AL15 Auto Level Survey Instrument
AL15 Auto Level Survey Instrument
- Xingang of Tianjin China
- T/T
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | LT | |
| Model Number | AL15 |
Four Sets in one Carton
Carton Size: 470*290*380mm
Product Description
AL15 Auto Level Survey Instrument
Main Feature
CE ISO ROHS Certificate
3-Years Extended Warranty
Best price/quality ratio on the market with extended warranty of 3 years.
High quality, accurate, water resistant and low cost units ideal for accurate measurements,
regardless of the weather or the terrain.
Specification
Levels Model | AL15-20 | AL15-24 | AL15-28 | AL15-32 |
Magnification | 20X | 24X | 28X | 32X |
Image | Erect | Erect | Erect | Erect |
Objective Aperture | 42mm | 42mm | 42mm | 42mm |
Field of View | 1°20' | 1°20' | 1°20' | 1°20' |
Minimum Focusing Distance | 0.6m | 0.6m | 0.6m | 0.6m |
Stadia Ratio | 100 | 100 | 100 | 100 |
Setting Accuracy | 0.5’’ | 0.5’’ | 0.5’’ | 0.5’’ |
Compensating Range | ±15' | ±15' | ±15' | ±15' |
Standard Deviation for 1Km Double Run Levelling | ±2.0mm | ±2.0mm | ±1.5mm | ±1.5mm |
Circular Level Sensitivity | 8’/2mm | 8’/2mm | 8’/2mm | 8’/2mm |
Horizontal Circle Graduating | 1° or 1gon | 1° or 1gon | 1° or 1gon | 1° or 1gon |
Net Weight | 2.2kg | 2.2kg | 2.2kg | 2.2kg |

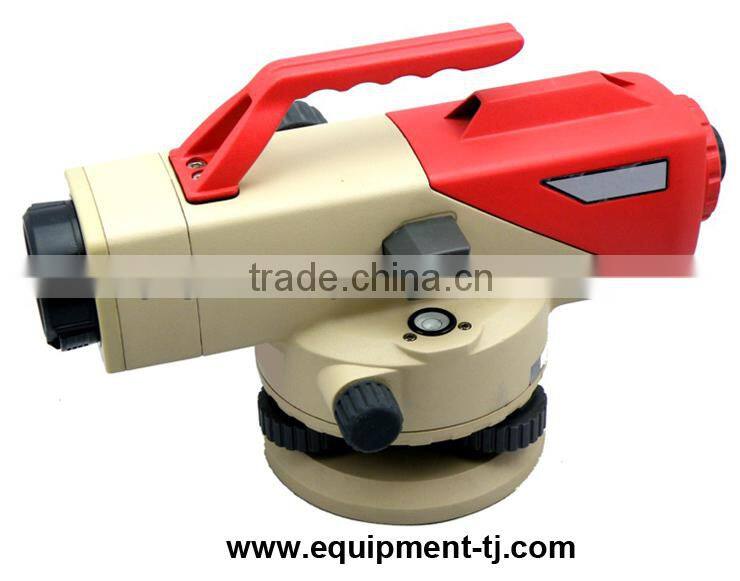

Sample Picture
AL15 Auto Level Survey Instrument
Company Profile
Our company is a major import and export enterprise located in the port city Tianjin, China. Awarded multiple contracts by the World Bank and the Asian Development Bank, we have provided products worthy of billions of dollars to domestic and overseas partners on an annual basis since 1994. Our corporate mission is to promote our business by continually exceeding our customers' expectations for service and reliability. Our company currently exports more than 400 categories of products to more than 100 countries worldwide. Our main export products are machine tools and accessories, valves, engineering machinery, universal machinery, agricultural machinery, electric motors, water-submersible pumps, diesel generating sets, conveyor pulleys, hydraulic cylinders, survey equipment, and so on. With the rapid development of the Chinese market in recent years, internal demand for foreign products has expanded exponentially. To serve this demand, our company now imports an extensive range of products, including heavy forging equipment, paint sprayers, industrial lubricants, industrial liquid soap, laboratory apparatuses, flexible bus bars, fire extinguishing facilities, and power generator sets. We are continually looking for reseller partners to distribute our products and supplier partners to expand our product base. Please contact us if you have a need. We look forward to serving you. ISO9001:2008 certified.
Contact Us
- L&T Mechanical & Electrical Equipment Co., Ltd.
- Contact nameSherry LT Chat Now
- Phone86-22-83699068
- Address1515, Time Bldg., No. 265, Anshan West Road
