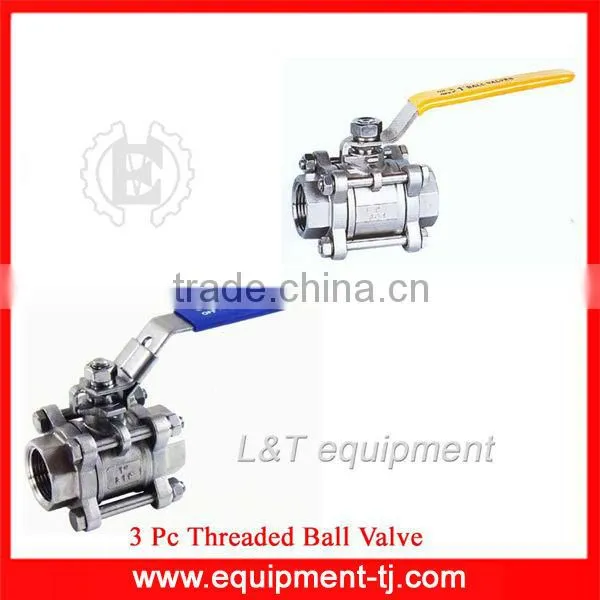

Help Center3 Pc Threaded Ball Valve
US$ 1 - 15
MOQ: 1000 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 Pc Butt Weld Ball ValveUS$ 1 - 30MOQ: 1000 Sets -
1PC Screwed Ball Valve With Mounting PadUS$ 1 - 30MOQ: 100 Sets
-
Three Ways Ball ValveUS$ 1 - 50MOQ: 100000 Pieces
-
2 Pieces German/American Standard Flanged Ball ValveUS$ 1 - 50MOQ: 100000 Pieces
-
2 Pieces Ball Valve -IIIUS$ 1 - 50MOQ: 100000 Pieces
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Hydraulic
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Water
Port Size
1/4-4"
Place of Origin
Tianjin, China
Model Number
3 Pc Threaded Ball Valve
Brand Name
LT
Specifications
3 Pc Threaded Ball Valve3 Pc Threaded Ball Valve
Material List
Item |
Designation |
Material |
1 |
Plastic Cover |
Plastic |
2 |
Handle |
304 |
3 |
Gland Nut |
304 |
4 |
Stem Nut |
304 |
5 |
Thrust Washer |
304 |
6 |
Stem Packing |
PTFE |
7 |
Thrust Washer |
PTFE |
8 |
Body Seal |
PTFE |
9 |
Cap |
CF8/CF8M |
10 |
Bolt |
304 |
11 |
Nut |
304 |
12 |
Thrust Washer |
304 |
13 |
Body |
CF8/CF8M |
14 |
Seat |
RPTFE |
15 |
Ball |
CF8M |
16 |
Stem |
304/316 |
17 |
Locking |
304 |
Dimension Table
Item/Size |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
2 1/2" |
3" |
4" |
D |
12.5 |
12.5 |
15 |
20 |
25 |
32 |
38 |
50 |
65 |
76 |
94 |
L |
72 |
72 |
72 |
80 |
85 |
105 |
113 |
132 |
170 |
186 |
220 |
H |
48 |
48 |
50 |
52 |
65 |
70 |
85 |
93 |
116 |
125 |
180 |
W |
105 |
105 |
105 |
126 |
144 |
144 |
189 |
189 |
224 |
224 |
251 |
