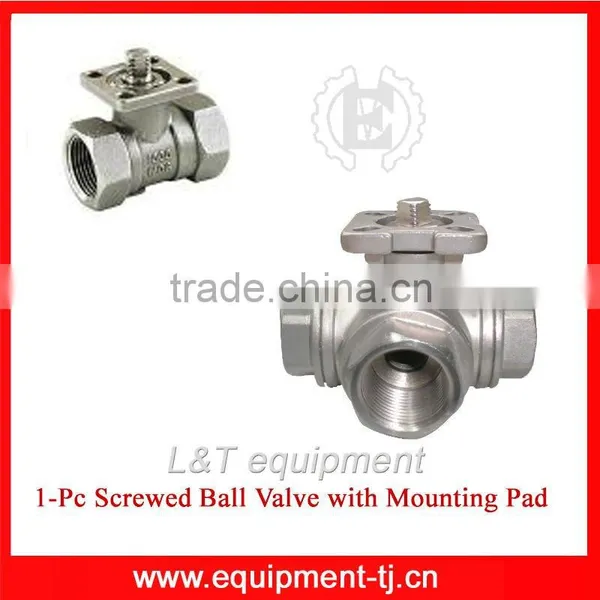

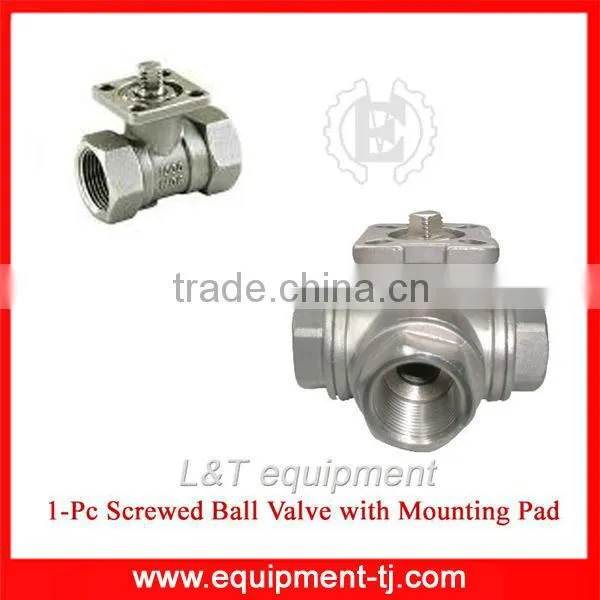

1PC Screwed Ball Valve With Mounting Pad
US$ 1 - 30
MOQ: 100 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Other, Medium Pressure, 1000psi
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Other, Medium Pressure, 1000psi
Power
Manual
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Oil
Port Size
1/4-4"
Place of Origin
Tianjin, China
Model Number
1 pc ball valve
Brand Name
LT
Specifications
1PC Screwed Ball Valve With Mounting Pad1PC Screwed Ball Valve With Mounting Pad
Specifications
1PC SCREWED BALL VALVE WITH MOUNTING PAD
Size:1/4"-4"
Material: SS304, SS316, SS316L, Carbon steel
Pressure: 1000psi
Medium: water, oil, gas
Thread type: NPT, BSPT, DIN259/2999
Material List
Item |
Designation |
Material |
1 |
Stem |
304 |
2 |
Gland |
304 |
3 |
Stem Packing |
PTFE |
4 |
Thrust Washer |
PTFE |
5 |
Cap |
CF8M |
6 |
Ball Seat |
RPTFE |
7 |
Ball |
CF8M |
8 |
Body |
CF8M |
Dimension Table
Item/Size |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
L |
45 |
50 |
60 |
73 |
78 |
90 |
100 |
A |
7 |
9.2 |
12.5 |
15 |
20 |
25 |
32 |
B |
23 |
25 |
32 |
35 |
38 |
42 |
50 |
C |
36 |
50 |
50 |
50 |
50 |
70 |
70 |
H |
9 |
9 |
9 |
9 |
9 |
11 |
11 |
ΦP.C.D |
F03 |
F03/F05 |
F03/F05 |
F03/F05 |
F03/F05 |
F05 |
F05 |
N-ΦD |
4-Φ5.5 |
8-Φ5.5-6.5 |
8-Φ5.5-6.5 |
8-Φ5.5-6.5 |
8-Φ5.5-6.5 |
4-Φ6.5 |
4-Φ6.5 |
E |
9 |
9 |
9 |
9 |
9 |
11 |
11 |
