Specifications
Compact PVC Ball ValveFeatures:Full port design Santoprene seats
100% test no leak Easy to service

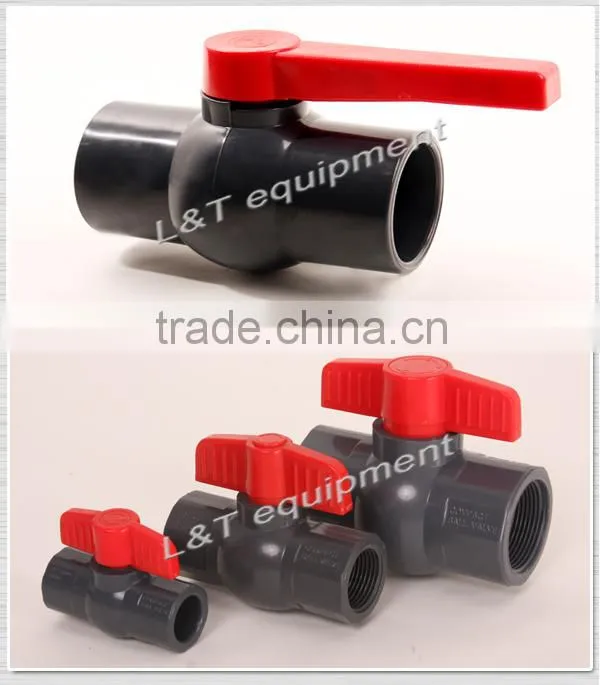

Compact PVC Ball Valve
Cv Factors |
Size |
Value |
Size |
Value |
| 1/2" | 8.0 | 2" | 150 |
| 3/4" | 16 | 2-1/2" | 340 |
1" |
29 |
3" |
490 |
1-1/4" |
75 |
4" |
600 |
1-1/2" |
90 |
Selection Chart |
Size |
Material |
End Connection |
Seals |
Pressure Rating |
|
1/2" - 2" (20mm-63mm) |
PVC |
Socket,Threaded |
NBR or EPDM |
200 psi @ 70°F |
|
2-1/2" - 4" (75mm-110mm) |
PVC |
Socket,Threaded |
NBR or EPDM |
150 psi @ 70°F |
Main Feature
1/2” To 4” PVC (DN15-DN100)
End Connection Socket or Threaded
100% Test No Leak
PVC Color: White and Gray
Compact and Heavyweight Design
Rated at Full 150 PSI
Low Torque Easy 1/4 Turn Operation
EPDM O-Ring Sales
No Internal Parts to Replace
Demension | |||||||||||||||||
Size |
d1(ANSI) |
d1(B.S.) |
d1(DIN) |
d1(JIS) |
D |
L1 |
L |
H |
|||||||||
mm |
" |
mm |
" |
mm |
" |
mm |
" |
mm |
" |
mm |
" |
mm |
" |
mm |
" |
mm |
" |
20 |
1/2" |
21.3 |
NPT |
21.2 |
BSPT |
20 |
BSPT |
22 |
BSPT |
31.4 |
1.24 |
20.3 |
0.80 |
74.7 |
2.9 |
45.3 |
1.78 |
25 |
3/4" |
26.7 |
NPT |
26.6 |
BSPT |
25 |
BSPT |
26 |
BSPT |
36.8 |
1.45 |
22.6 |
0.89 |
86.2 |
3.4 |
50.9 |
2.01 |
32 |
1" |
33.4 |
NPT |
33.4 |
BSPT |
32 |
BSPT |
32 |
BSPT |
45.0 |
1.77 |
27.4 |
1.08 |
102.8 |
4.0 |
57.3 |
2.26 |
40 |
1 1/4" |
42.2 |
NPT |
42.1 |
BSPT |
40 |
BSPT |
38 |
BSPT |
52.5 |
2.07 |
27.0 |
1.06 |
110.2 |
4.3 |
67.5 |
2.66 |
50 |
1 1/2" |
48.3 |
NPT |
48.1 |
BSPT |
50 |
BSPT |
48 |
BSPT |
63.2 |
2.49 |
28.9 |
1.14 |
122.7 |
4.8 |
73.8 |
2.91 |
63 |
2" |
60.3 |
NPT |
60.2 |
BSPT |
63 |
BSPT |
60 |
BSPT |
76.4 |
3.01 |
36.0 |
1.42 |
144.1 |
5.7 |
84.3 |
3.32 |
75 |
2 1/2" |
73.0 |
NPT |
75.2 |
BSPT |
75 |
BSPT |
76 |
BSPT |
90.0 |
3.54 |
45.7 |
1.80 |
182.0 |
7.2 |
103.5 |
4.07 |
90 |
3" |
88.9 |
NPT |
88.7 |
BSPT |
90 |
BSPT |
89 |
BSPT |
107.9 |
4.25 |
61.0 |
2.40 |
235.0 |
9.3 |
113.5 |
4.47 |
110 |
4" |
114.3 |
NPT |
114.1 |
BSPT |
110 |
BSPT |
114 |
BSPT |
132.4 |
5.21 |
64.0 |
2.52 |
256.0 |
10.1 |
124.3 |
4.89 |
Compact PVC Ball Valve
