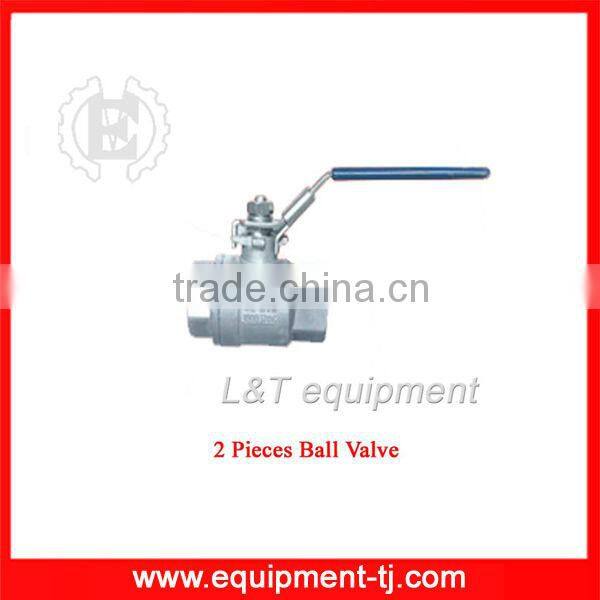

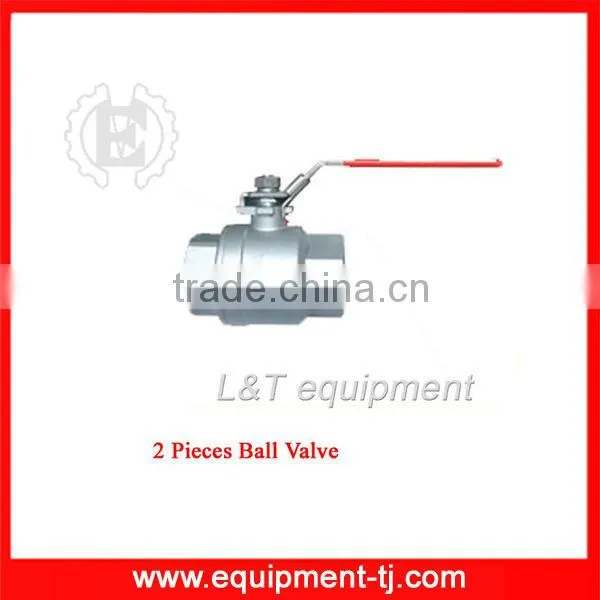

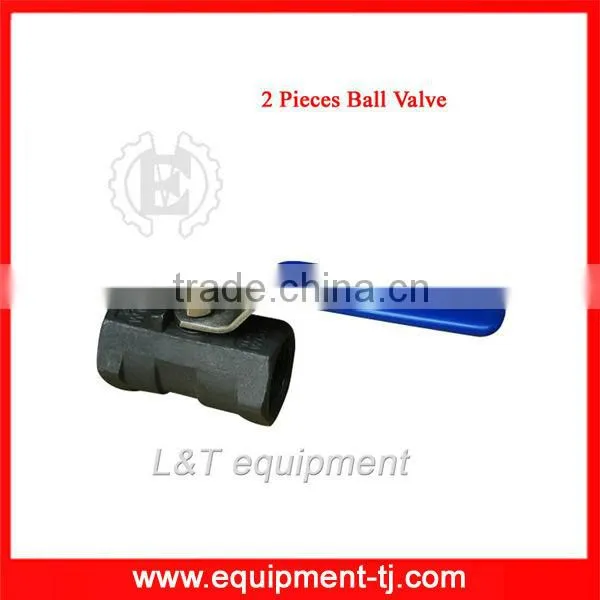

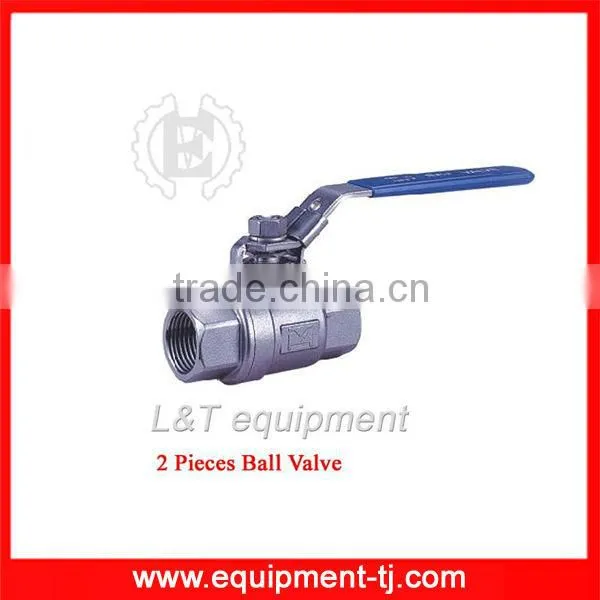

Help Center2 Pieces Ball Valve -I
US$ 1 - 50
MOQ: 100000 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Manual
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Oil
Port Size
1/4-4"
Place of Origin
Tianjin, China
Model Number
2 Pieces Ball Valve -I
Brand Name
OEM
Specifications
2 Pieces Stainless Steel Ball Valve -12 Pieces Ball Valve —I
- Size:1/4" —4"
- Full Bore
- Threaded Ends: ANSI B2.1, BS21, DIN 259/2999, JIS B0203
- Quality Investment Casting Body
- Internal Entry Blow-out Proof Stem
- Material: CF8M/1.4408, CF8/1.4308
- Pressure Rating: 1000 PSI WOG
- Pressure Test: API 598
- Lever Handle with Locking Device
Size |
d |
L |
H |
W |
Cv Factory |
Torque Inch/Lbs |
1/4" |
11 |
52 |
45 |
103 |
6.0 |
36 |
3/8" |
12.5 |
52 |
45 |
103 |
7 |
36 |
1/2" |
15 |
63.5 |
47 |
103 |
10 |
43 |
3/4" |
20 |
74 |
52 |
126 |
25 |
65 |
1" |
25 |
86 |
65 |
144 |
35 |
101 |
1-1/4" |
32 |
98 |
70 |
144 |
46 |
158 |
1-1/2" |
38 |
106 |
86 |
189 |
80 |
187 |
2" |
50 |
122 |
93 |
189 |
110 |
230 |
2-1/2" |
65 |
160 |
116 |
224 |
310 |
430 |
3" |
76 |
183 |
125 |
224 |
360 |
1380 |
4" |
94 |
226 |
166 |
295 |
820 |
2400 |
